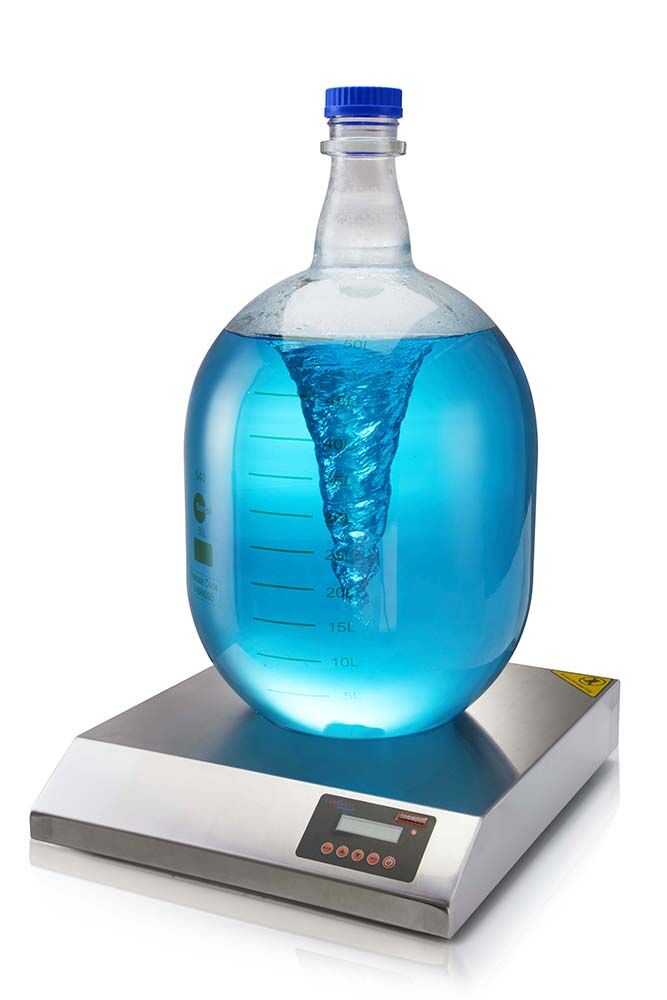

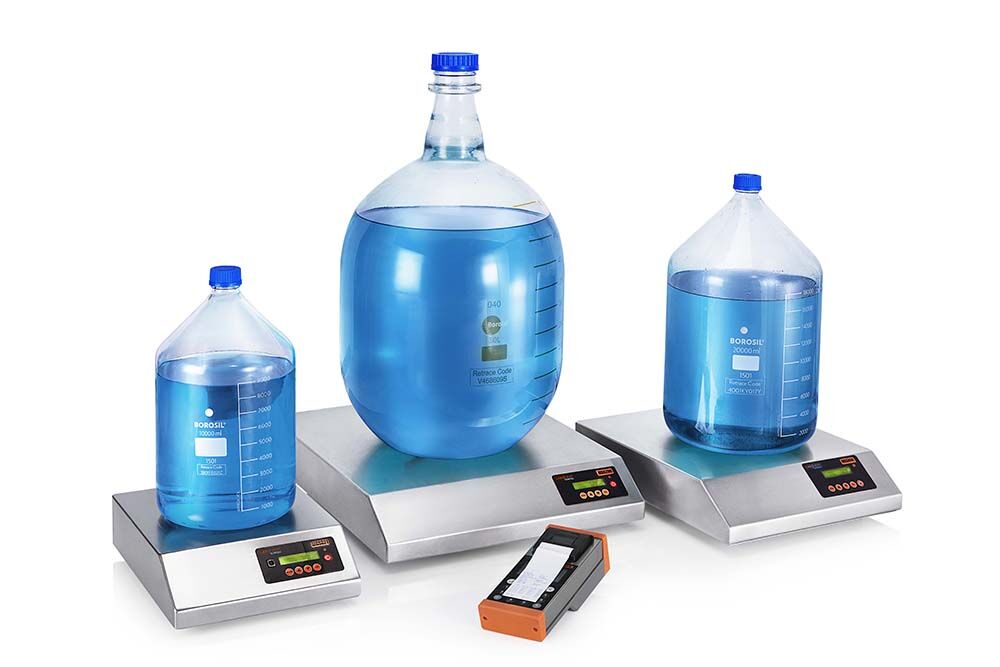

Industrial Stirrers

Industrial Stirrers

Product Code : MGS
image not found Request a Quote
image not found Find a Dealer
Rugged Built
Resistant stainless steel housing and rugged construction makes it easy to clean, chemical resistant and user friendly.
Advanced display and Data logging
Membrane Touch Buttons to ensure groove free surface with minimal dirt accumulation, easy handling and for maintaining hygienic protocols.
Smart control
Microprocessor based Speed Control guaranteeing consistent, uniform mixing.
Convenience Features with practicality
On-board memory for recalling last speed time and settings, to ensure traceability, even when the unit has been turned off.
Model MGS020 MGS050 MGS200
Number of stirring positions 1 1 1
Stirring quantity Upto 20 L Upto 50 L Upto 200 L
Motor Type BLDC 15 MOTOR BLDC 30 MOTOR BLDC 30 MOTOR
Stirring bar length 35 - 80 (in mm) 80 - 120 (in mm) 155 (in mm)
Material Housing 304 Stainless steel 304 Stainless steel 304 Stainless steel
Display Digital LCD Display Digital LCD Display Digital LCD Display
Speed range 0 - 1000 rpm 0 - 1000 rpm 0 - 600 rpm
Timer (0 - 99:99 hrs:min) or continuous/infinite operation (0 - 99:99 hrs:min) or continuous/infinite operation (0 - 99:99 hrs:min) or continuous/infinite operation
Set-up plate dimensions (300 x 300) mm (400 x 400) mm (500 x 500) mm
Dimensions (L x B x H) (300 x 390 x 110) mm (400 x 490 x 110) mm (500 x 590 x 110) mm
Weight of the Product 12 Kg 14 Kg 25 Kg
Weight/load (it can Sustain) 30 Kg 70 Kg 70Kg
Process Equipments Indirect Load It can stir Volumes upto 20L Volumes upto 50L Volumes upto 200L
Ramp rate Adjustable for different viscosity Adjustable for different viscosity Adjustable for different viscosity
USB Interface (Upgradable) YES - Option to connect LABQUEST Data Logger & Printer YES - Option to connect LABQUEST Data Logger & Printer YES - Option to connect LABQUEST Data Logger & Printer
Permissible temperature -5 °C to 40 °C -5 °C to 40 °C -5 °C to 40 °C
Max Current 0.3 A 0.5 A 0.5 A
Motor rating output 30W 60W 60W
HSN Code 90278090 90278090 90278090
Ordering Code BLFHMGS02000000000 BLFHMGS05000000000 BLFHMGS20000000000
