• Uniform wall thickness distribution and the round – bottom shape makethem ideal for heating
• Generally used in distillation and extraction processes
• Large labelling field
MATERIAL
|
---|
|

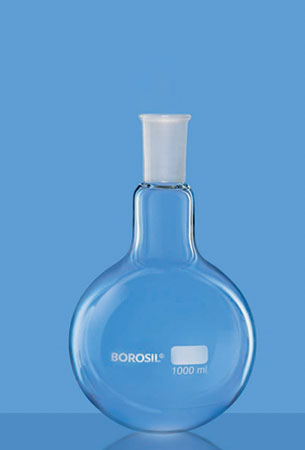

Narrow Mouth, Short Neck With I/C Joint
• Uniform wall thickness distribution and the round – bottom shape makethem ideal for heating
• Generally used in distillation and extraction processes
• Large labelling field
MATERIAL
|
---|
|
Product Code | Capacity (ml) | Interchangeable joints | Approx height (mm) | Quantity Per Case |
---|---|---|---|---|
4380A05 | 5 | 14 / 23 | 60 | 10 |
4380A06 | 10 | 14 / 23 | 70 | 10 |
4380A09 | 25 | 14 / 23 | 80 | 10 |
4380B09 | 25 | 19 / 26 | 77 | 10 |
4380A12 | 50 | 14 / 23 | 95 | 5 |
4380B12 | 50 | 19 / 26 | 95 | 5 |
4380C12 | 50 | 24 / 29 | 95 | 5 |
4380D12 | 50 | 29 / 32 | 95 | 5 |
,4380E12 | 50 | 34 / 35 | 95 | 5 |
4380A16 | 100 | 14 / 23 | 120 | 20 |
4380B16 | 100 | 19 / 26 | 120 | 20 |
4380C16 | 100 | 24 / 29 | 120 | 20 |
4380D16 | 100 | 29 / 32 | 120 | 20 |
,4380E16 | 100 | 34 / 35 | 120 | 20 |
4380A21 | 250 | 14 / 23 | 140 | 20 |
4380B21 | 250 | 19 / 26 | 140 | 20 |
4380C21 | 250 | 24 / 29 | 140 | 20 |
4380D21 | 250 | 29 / 32 | 140 | 20 |
,4380E21 | 250 | 34 / 35 | 140 | 20 |
4380A24 | 500 | 14 / 23 | 170 | 10 |
4380B24 | 500 | 19 / 26 | 170 | 10 |
4380C24 | 500 | 24 / 29 | 170 | 10 |
4380D24 | 500 | 29 / 32 | 170 | 10 |
,4380E24 | 500 | 34 / 35 | 170 | 10 |
4380A29 | 1000 | 19 / 26 | 210 | 10 |
4380B29 | 1000 | 24 / 29 | 210 | 10 |
4380C29 | 1000 | 29 / 32 | 210 | 10 |
4380D29 | 1000 | 34 / 35 | 210 | 10 |
,4380E29 | 1000 | 45 / 40 | 210 | 10 |
4380F29 | 1000 | 55 / 44 | 210 | 10 |
4380A30 | 2000 | 24 / 29 | 240 | 4 |
4380B30 | 2000 | 29 / 32 | 240 | 4 |
4380C30 | 2000 | 34 / 35 | 240 | 4 |
4380D30 | 2000 | 45 / 40 | 240 | 4 |
4380A31 | 3000 | 24 / 29 | 240 | 4 |
4380B31 | 3000 | 29 / 32 | 265 | 4 |
4380C31 | 3000 | 34 / 35 | 265 | 4 |
4380D31 | 3000 | 45 / 40 | 265 | 4 |
,4380E31 | 3000 | 55 / 44 | 265 | 4 |
4380A33 | 5000 | 24 / 29 | 300 | 2 |
4380B33 | 5000 | 29 / 32 | 300 | 2 |
4380C33 | 5000 | 34 / 35 | 300 | 2 |
4380D33 | 5000 | 45 / 40 | 300 | 2 |
,4380E33 | 5000 | 55 / 44 | 300 | 2 |
4380A38 | 10000 | 34 / 35 | 385 | 1 |
4380B38 | 10000 | 45/40 | 385 | 1 |
4380C38 | 10000 | 55 / 44 | 385 | 1 |
4380A40 | 20000 | 55 / 44 | 435 | 1 |
