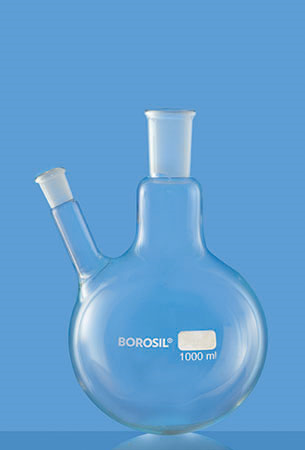

4381 – Round Bottom Flask

2 Necks, Angular

Product Code : 4381

• With Interchangeable Joints• One neck is centred and vertical. The side neck is inclined at an angle of
20° to the vertical neck
• Uniform wall thickness distribution and the round-bottom shape make
them ideal for heating
• The shape facilitates uniform heating
• Accessories, thermometer, column, dropping funnels, boiling capillaries,
etc., can be fitted depending upon the application
• Generally used in distillation and extraction processes

MATERIAL
Product Code Capacity (ml) Interchangeable Joint Size (Centre Neck) Interchangeable Joint Size (Side Neck) Quantity Per Case
4381A16 100 19 / 26 14 / 23 4
4381B16 100 24 / 29 14 / 23 4
4381C16 100 24 / 29 19 / 26 4
4381A21 250 24 / 29 14 / 23 4
4381B21 250 24 / 29 19 / 26 4
4381A24 500 24 / 29 14 / 23 4
4381B24 500 24 / 29 19 / 26 4
4381A29 1000 24 / 29 14 / 23 2
4381B29 1000 24 / 29 19 / 26 2
4381A30 2000 24 / 29 14 / 23 2
4381B30 2000 24 / 29 19 / 26 2
4381C30 2000 34 / 35 19 / 26 2
4381A31 3000 34 / 35 19 / 26 2
4381B31 3000 34 / 35 24 / 29 2
4381A33 5000 34 / 35 19 / 26 1
4381B33 5000 34 / 35 24 / 29 1
4381A38 10000 34 / 35 24 / 29 1
4381B38 10000 55 / 44 24 / 29 1
4381A40 20000 55 / 44 24 / 29 1
