4384 - Round Bottom Flask

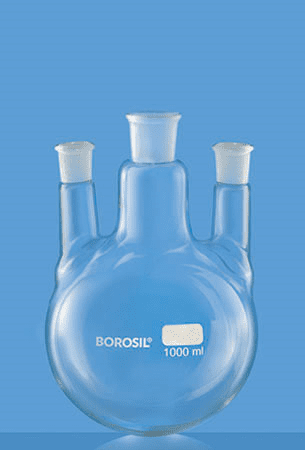

4384 – Round Bottom Flask

3 Necks, Parallel

Product Code : 4384
image not found Request a Quote
image not found Find a Dealer

• With Interchangeable Joints• All the three necks are vertical. The two side necks are 180° apart
• Uniform wall thickness distribution and round-bottom shape make them
ideal for heating
• The shape facilitates uniform heating
• Accessories, thermometer, column, dropping funnels, boiling capillaries,
etc. can be fitted depending upon the application
• Generally used in distillation and extraction processes

MATERIAL
Product Code Capacity (ml) Interchangeable Joint Size (Centre Neck) Interchangeable Joint Size (Side Neck) Quantity Per Case
4384A16 100 19 / 26 14 / 23 4
4384B16 100 14 / 23 14 / 23 4
4384C16 100 24 / 29 14 / 23 4
4384D16 100 24 / 29 19 / 26 4
4384A21 250 19 / 26 14 / 23 4
4384B21 250 19 / 26 19 / 26 4
4384C21 250 24 / 29 14 / 23 4
4384D21 250 24 / 29 19 / 26 4
4384A24 500 19 / 26 14 / 23 4
4384B24 500 19 / 26 19 / 26 4
4384C24 500 24 / 29 14 / 23 4
4384D24 500 24 / 29 19 / 26 4
4384A29 1000 24 / 29 14 / 23 2
4384B29 1000 24 / 29 19 / 29 2
4384C29 1000 34 / 35 24 / 29 2
4384D29 1000 34 / 35 19 / 26 2
4384A30 2000 24 / 29 14 / 23 2
4384B30 2000 24 / 29 19 / 26 2
4384C30 2000 34 / 35 19 / 26 2
4384D30 2000 34 / 35 24 / 29 2
4384A31 3000 34 / 35 19 / 26 2
4384B31 3000 34 / 35 24 / 29 2
4384A33 5000 34 / 35 19 / 26 1
4384B33 5000 34 / 35 24 / 29 1
4384C33 5000 45 / 40 24 / 29 1
4384A38 10000 34 / 35 19 / 26 1
4384B38 10000 34 / 35 24 / 29 1
4384C38 10000 45 / 40 24 / 29 1
4384A40 20000 55 / 44 24 / 29 1
