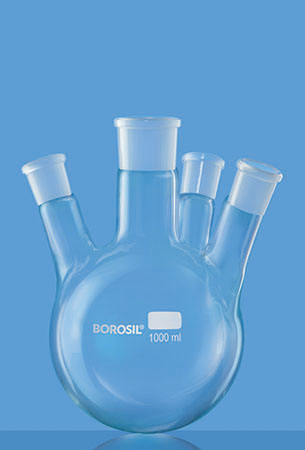

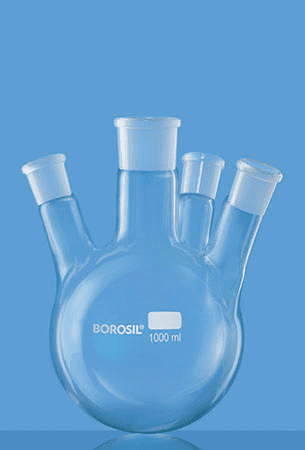

4385 – Round Bottom Flask

4 Necks, Angular

Product Code : 4385

• With Interchangeable Joints• The centred neck is vertical. All the three side necks are inclined at an
angle of 20° to the vertical neck
• The two side necks are 180° apart, and a third side neck is at 90° from the
other two necks
• Uniform wall thickness distribution and round-bottom shape make them
ideal for heating
• The shape facilitates uniform heating
• Accessories, thermometer, column, dropping funnels, boiling capillaries,
etc. can be fitted depending upon the application
• Generally used in distillation and extraction processes

MATERIAL
Product Code Capacity (ml) Interchangeable Joint Size (Centre Neck) Interchangeable Joint Size (Side Neck) Quantity Per Case
4385A12 50 24 / 29 24 / 29 4
4385A16 100 24 / 29 14 / 23 4
4385B16 100 24 / 29 19 / 26 4
4385A21 250 24 / 29 14 / 23 4
4385B21 250 24 / 29 19 / 26 4
4385A24 500 24 / 29 14 / 23 4
4385B24 500 24 / 29 19 / 26 4
4385C24 500 24 / 29 24 / 29 4
4385D24 500 34 / 35 24 / 29 4
4385A29 1000 24 / 29 14 / 23 2
4385B29 1000 24 / 29 19 / 26 2
4385C29 1000 24 / 29 24 / 29 2
4385D29 1000 34 / 35 24 / 29 2
4385A30 2000 24 / 29 14 / 23 2
4385B30 2000 24 / 29 19 / 26 2
4385C30 2000 34 / 35 19 / 26 2
4385D30 2000 34 / 35 24 / 29 2
4385A31 3000 34 / 35 19 / 26 2
4385B31 3000 34 / 35 24 / 29 2
4385A33 5000 34 / 35 19 / 26 1
4385B33 5000 34 / 35 24 / 29 1
4385A38 10000 55 / 44 24 / 29 1
4385B38 10000 34 / 35 24 / 29 1
4385A40 20000 55 / 44 24 / 29 1
