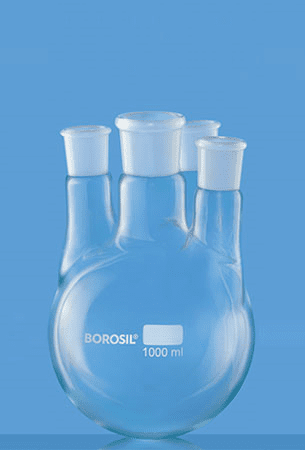

4386 – Round Bottom Flask

4 Necks, Parallel

Product Code : 4386

• With Interchangeable Joints• All the four necks are vertical. The two side necks are 180° apart and the
third neck is at 90° from the other two necks
• Four Necks, Centre Neck and Three Parallel Side Neck, with Interchangeable
Joints
• Uniform wall thickness distribution and the round-bottom shape make
them ideal for heating
• The shape facilities uniform heating
• Accessories, thermometer, column, dropping funnels, boiling capillaries,
etc. can be fitted depending upon the application
• Generally used in distillation and extraction processes

MATERIAL
Product Code Capacity (ml) Interchangeable Joint Size (Centre Neck) Interchangeable Joint Size (Side Neck) Quantity Per Case
4386A12 50 24 / 29 24 / 29 4
4386A16 100 24 / 29 14 / 23 4
4386B16 100 24 / 29 19 / 26 4
4386A21 250 24 / 29 14 / 23 4
4386B21 250 24 / 29 19 / 26 4
4386A24 500 24 / 29 14 / 23 4
4386B24 500 24 / 29 19 / 26 4
4386C24 500 24 / 29 24 / 29 4
4386D24 500 34 / 35 24 / 29 4
4386A29 1000 24 / 29 14 / 23 2
4386B29 1000 24 / 29 19 / 26 2
4386C29 1000 24 / 29 24 / 29 2
4386D29 1000 34 / 35 24 / 29 2
4386A30 2000 24 / 29 14 / 23 2
4386B30 2000 24 / 29 19 / 26 2
4386C30 2000 34 / 35 19 / 26 2
4386D30 2000 34 / 35 24 / 29 2
4386A31 3000 34 / 35 19 / 26 2
4386B31 3000 34 / 35 24 / 29 2
4386A33 5000 34 / 35 19 / 26 1
4386B33 5000 34 / 35 24 / 29 1
4386A38 10000 55 / 44 24 / 29 1
4386B38 10000 34 / 35 24 / 29 1
4386A40 20000 55 / 44 24 / 29 1
