Find a DealerIdeal for filtration of HPLC solvents and aqueous mobile phase solutions, sterile filtration of media and buffers

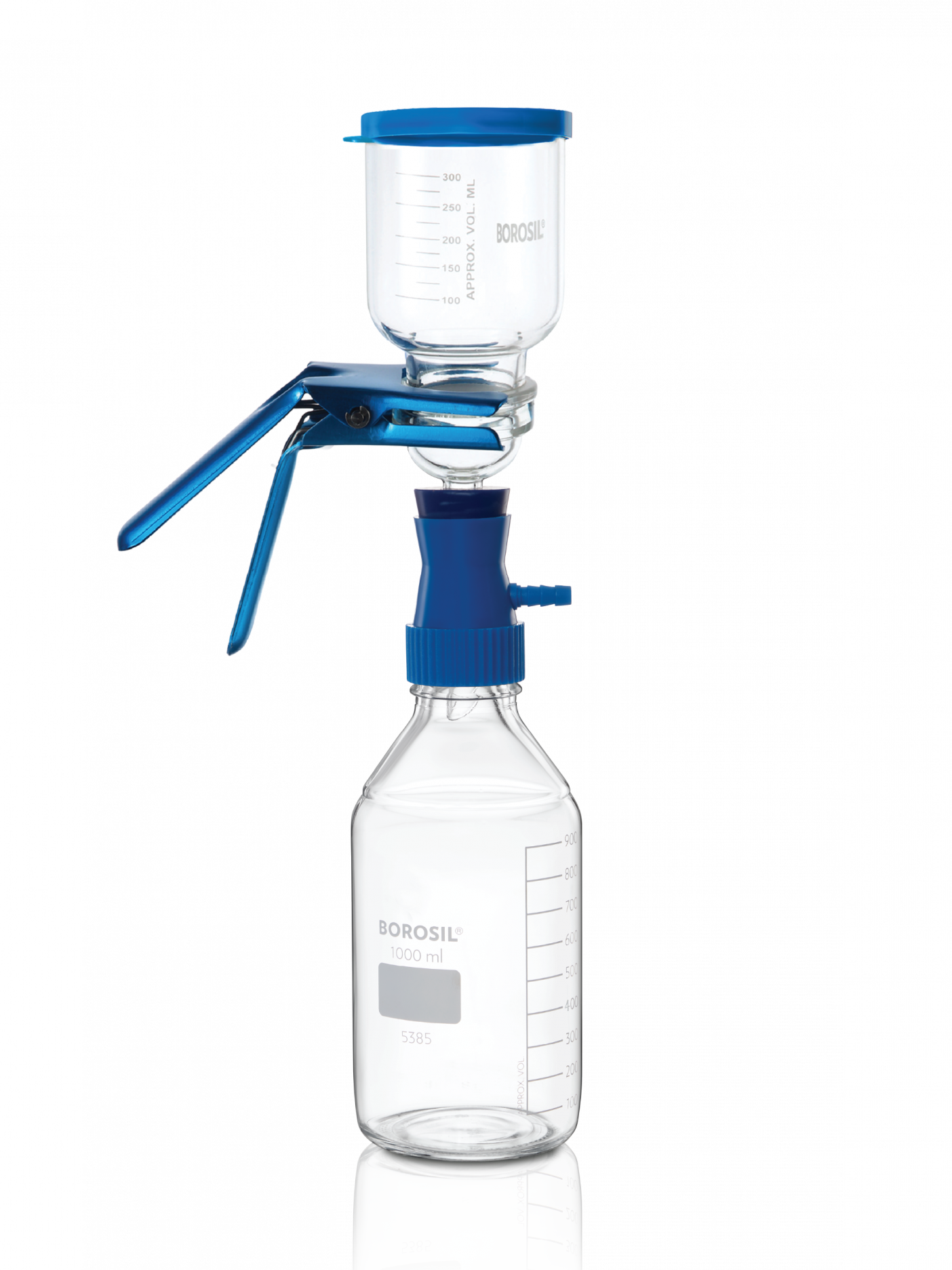

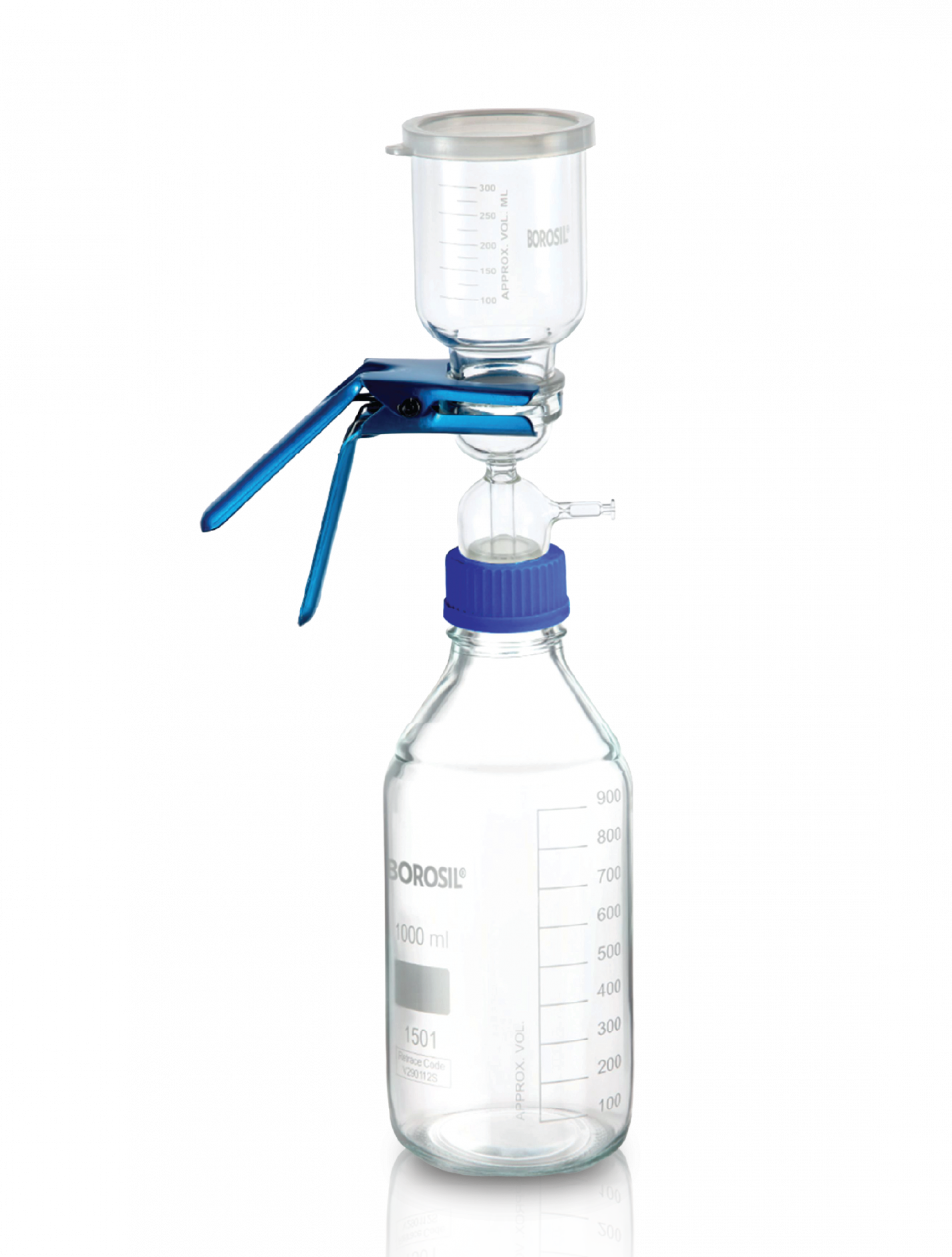

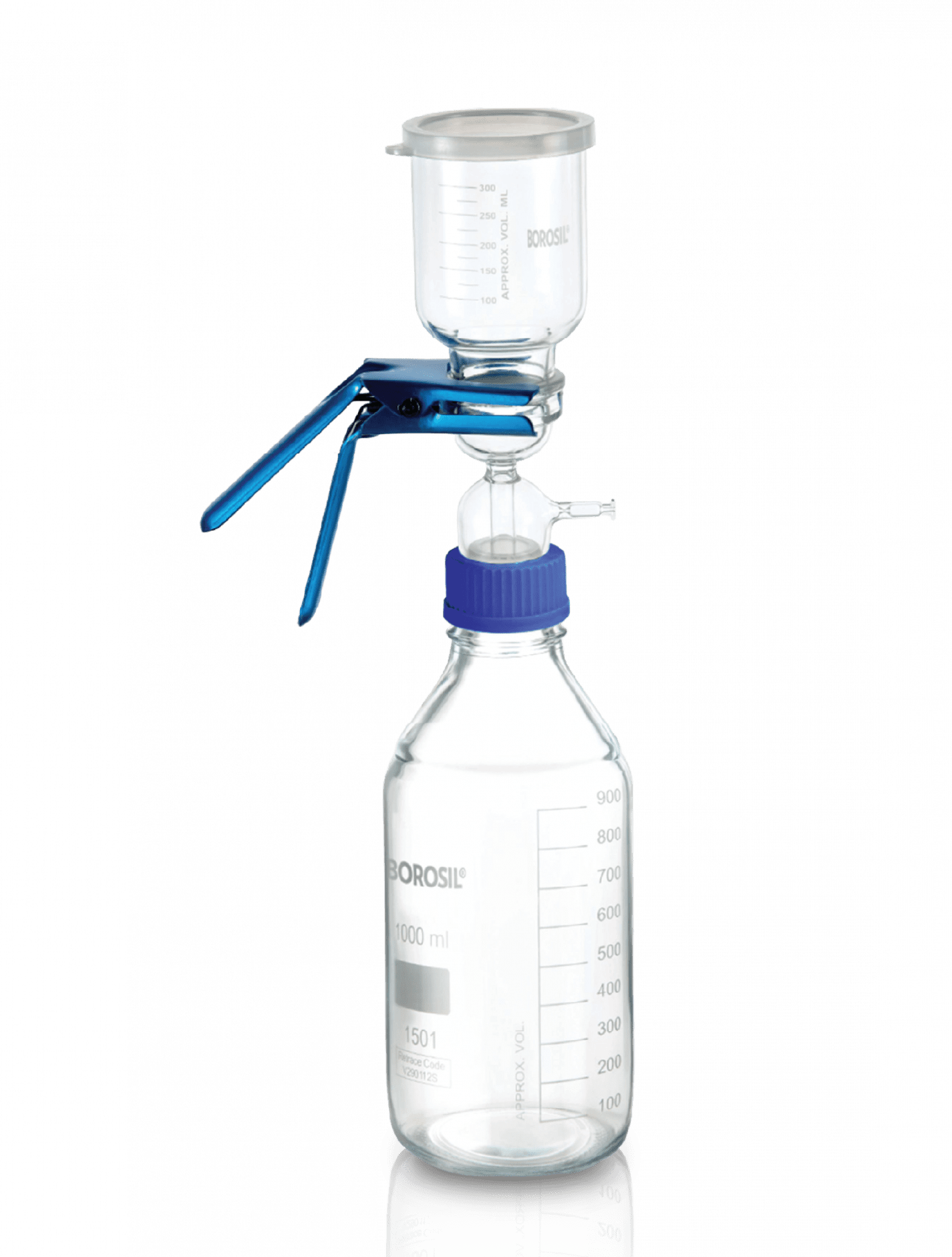

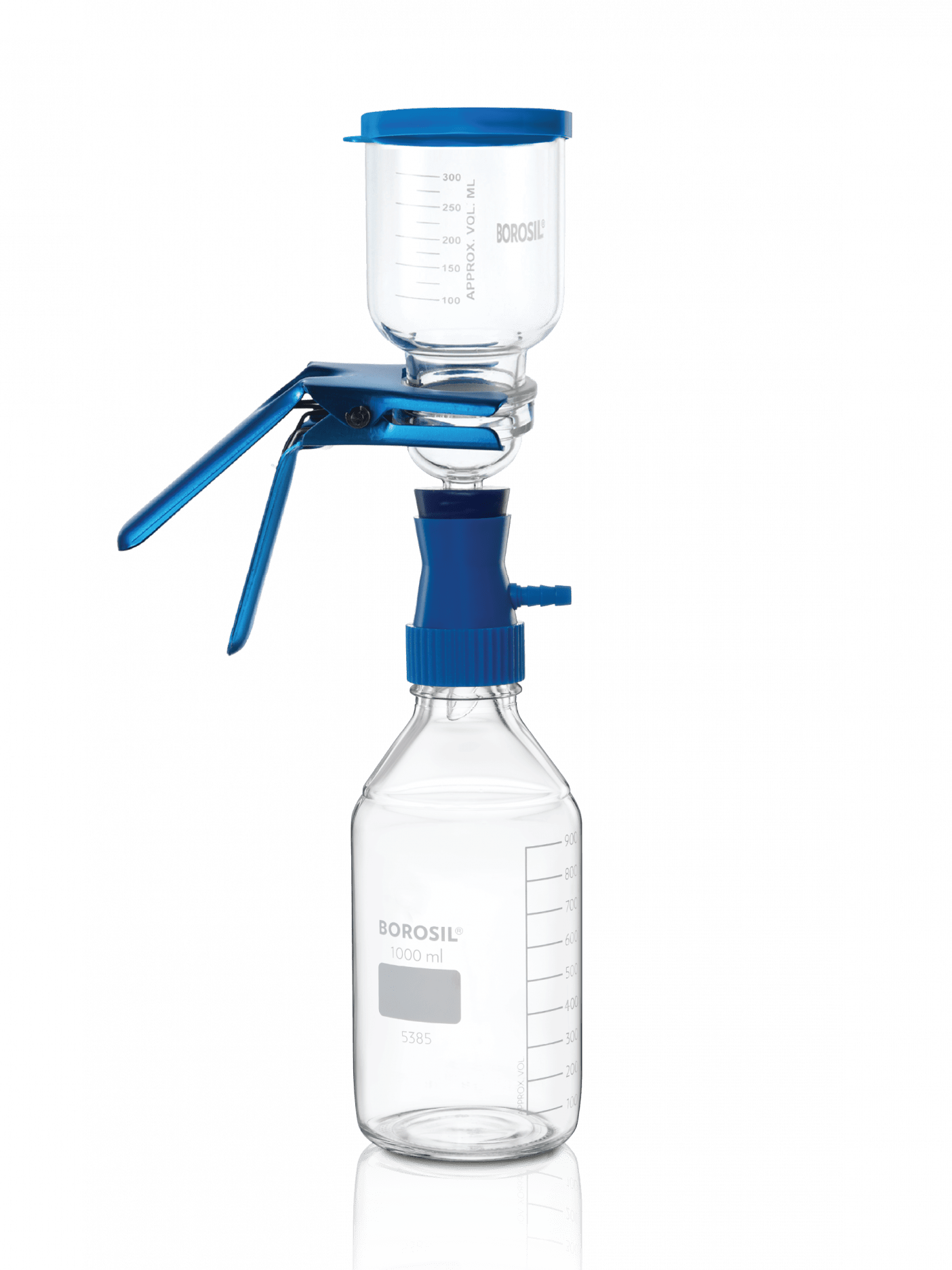

Glass Filtration Assembly with adapter
With Universal GL45 adapter, 47mm
Glass Filtration Assembly is a comprehensive collection of precision-engineered products designed to revolutionize Laboratory Filtration.
• The universal adapter will connect directly to GL 45 bottle
• The final filtrate will be collected directly in a screw cap bottle and there is no need to transfer the filtrate again into a new container for storage
• Entire assembly consists of:
1. Glass Funnel – Capacity: 300 ml / 1000 ml
2. Filter Support Base with sintered glass filter – 47 mm

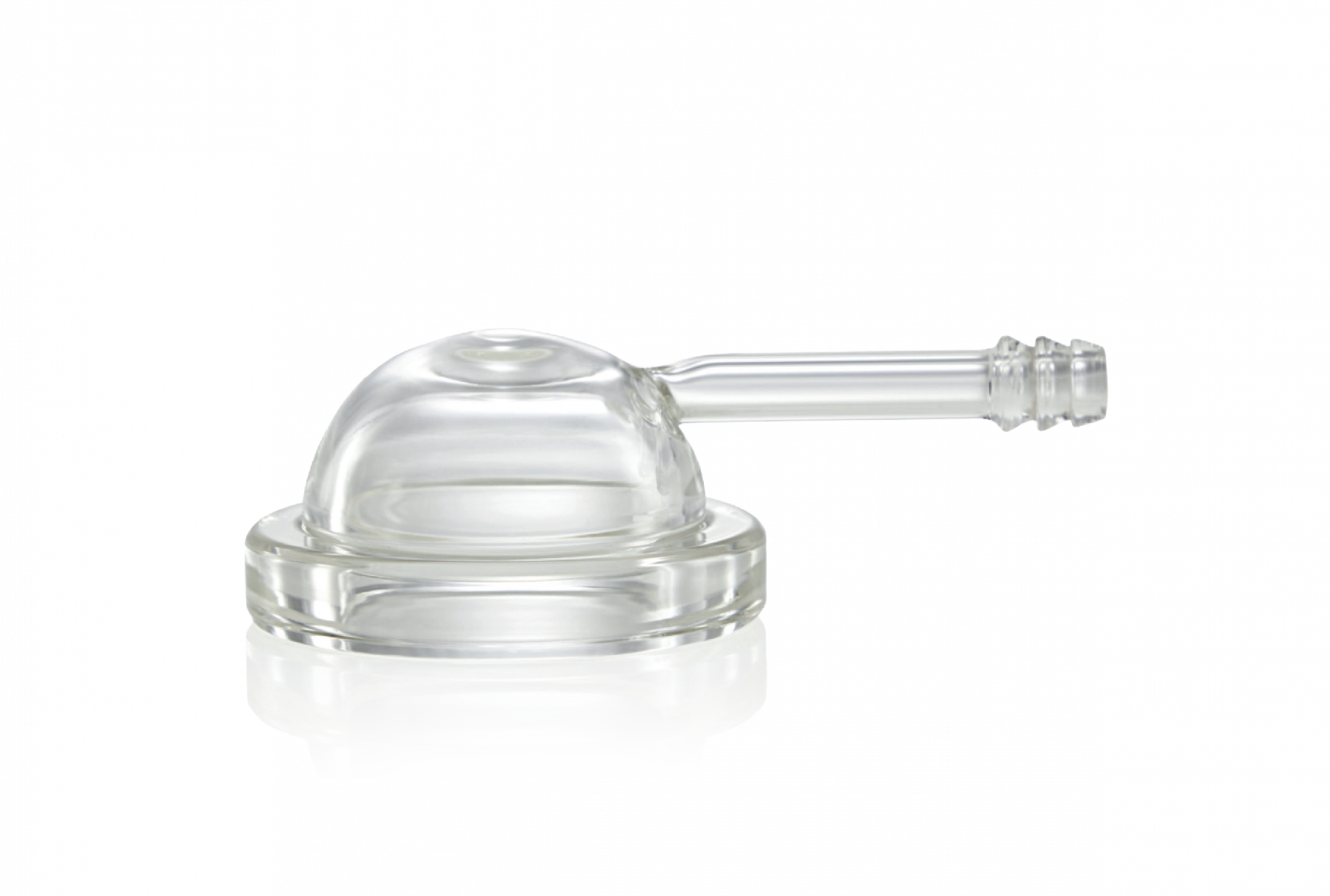

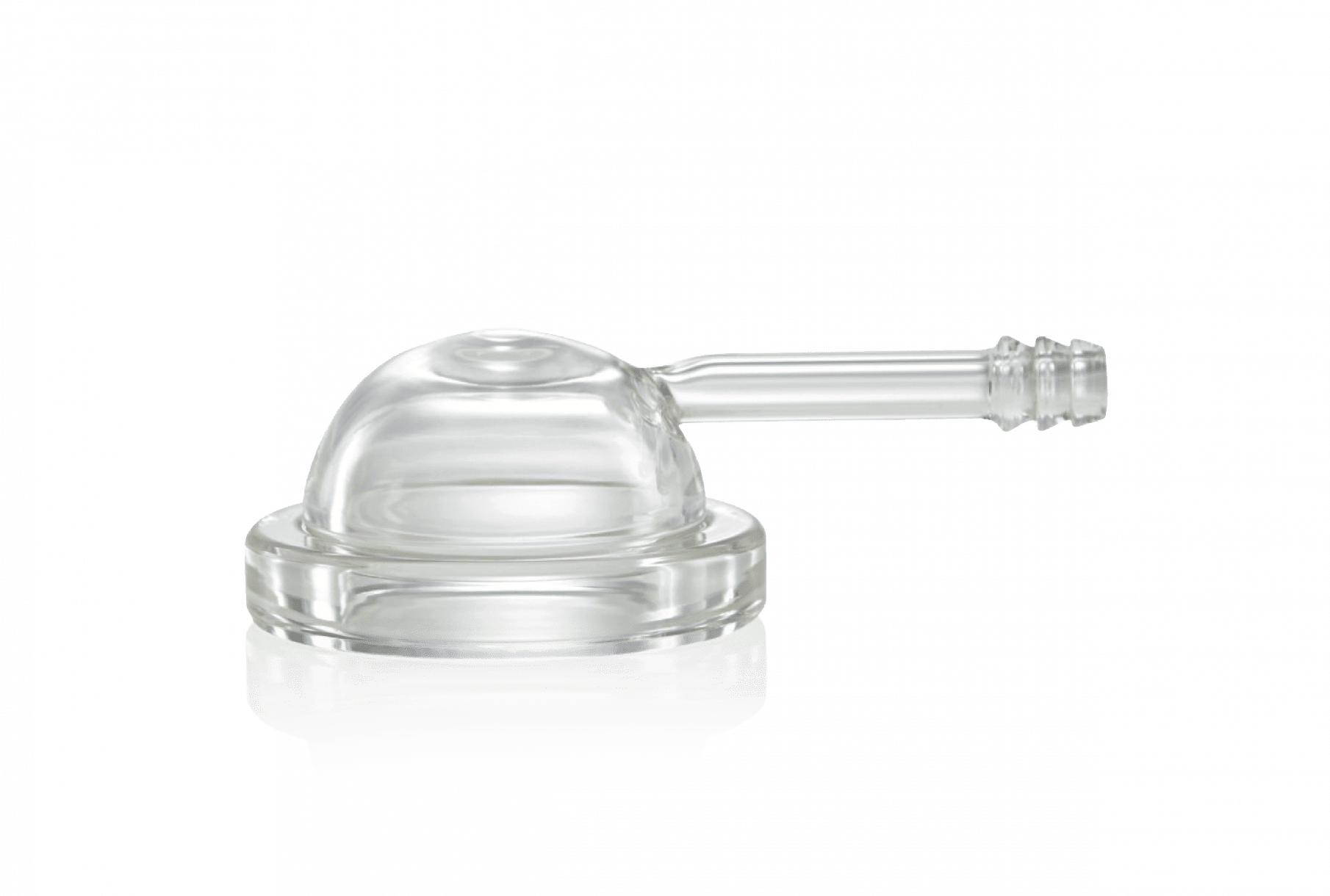

3. GL 45 Filtration Adapter
4. Glass Bottle with PP Screw cap – 1000 ml / 2000 ml
5. Aluminum Clamp – 47 mm
• Effective filtration area – 9.6 cm2 for 47 mm
• The GL 45 universal adapter is made of polypropylene and has a vacuum connection and GL 45 threads
• Aluminum spring clamp is anodised for longer life
| Product Code | Filtration Support Base Size (mm) | Glass Filter Funnel Capacity (ml) | Glass Receiver Bottle Capacity (ml) | Capacity /Size | Description |
|---|---|---|---|---|---|
| 5385029 | 47 | 300 | - | - | - |
| 5385030 | 47 | 300 | - | - | - |
| 1501029 | - | - | 1000 | - | Glass Bottle with GL45 screw cap |
| 1501030 | - | - | 2000 | - | Glass Bottle with GL45 screw cap |
| 5350S01 | - | - | - | 300ML | Glass funnel |
| 5360S02 | - | - | - | 47mm | FIlter Support base |
| 5350S03 | - | - | - | 47mm | Aluminium Clamp |
| 5385S01 | - | - | - | GL 45 | GL45 Filtration Adapter |
