Patented Bottle Top dispenser

Bottle Top Dispenser

Experience ease of Accurate Dispensing with Enhanced Safety and DIY Calibration in LabQuest next generation Dispenser.

Product Code : BLFLLH0020
image not found Request a Quote
image not found Find a Dealer
image not found Watch Video

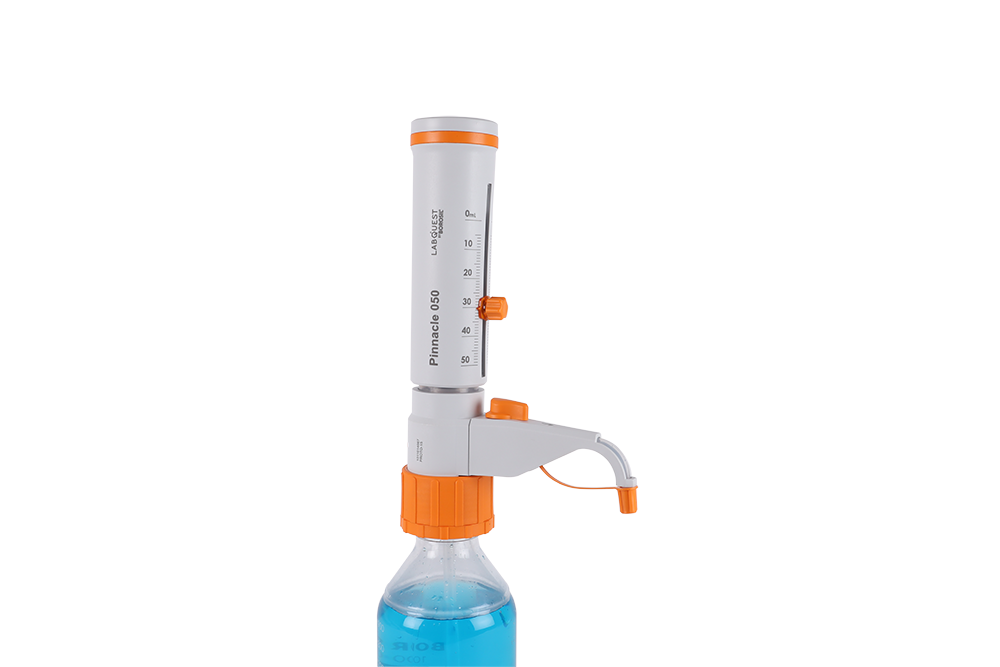

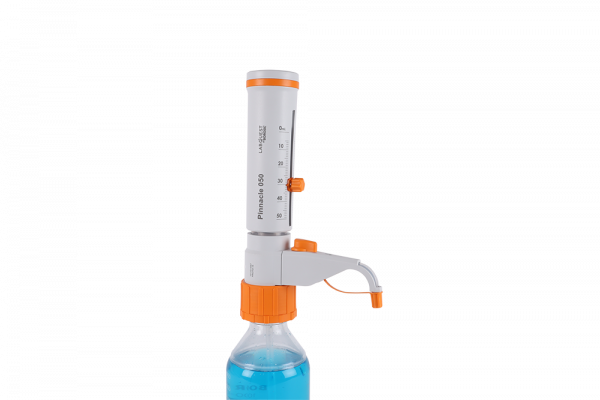

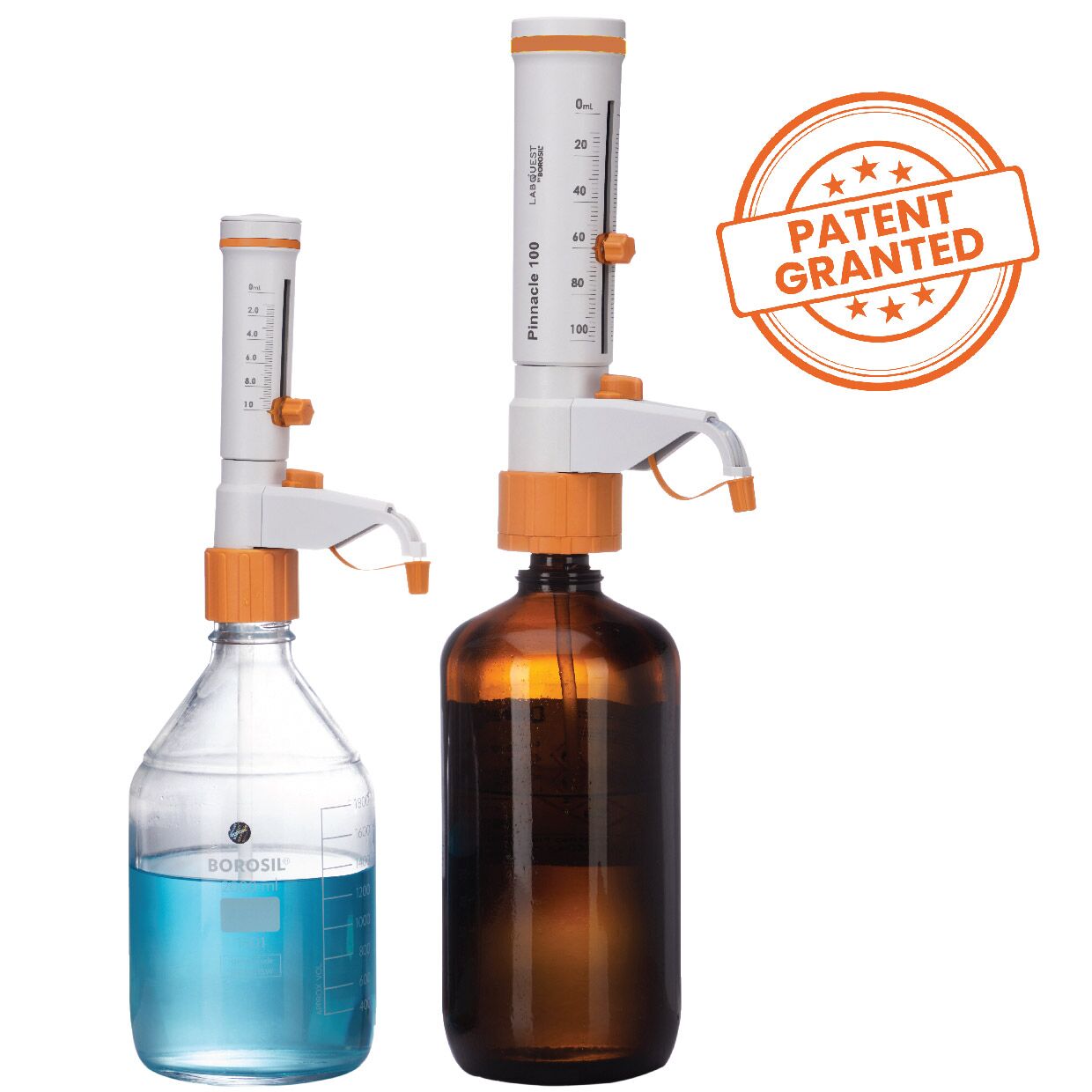

Two variants Research Model & Pinnacle
• Additional recirculation valve that prevents reagent loss while priming.
• Both Models are available in six different sizes for liquid dispensing of volumes from 0.25 – 100 mL.
Bottle Top dispenser

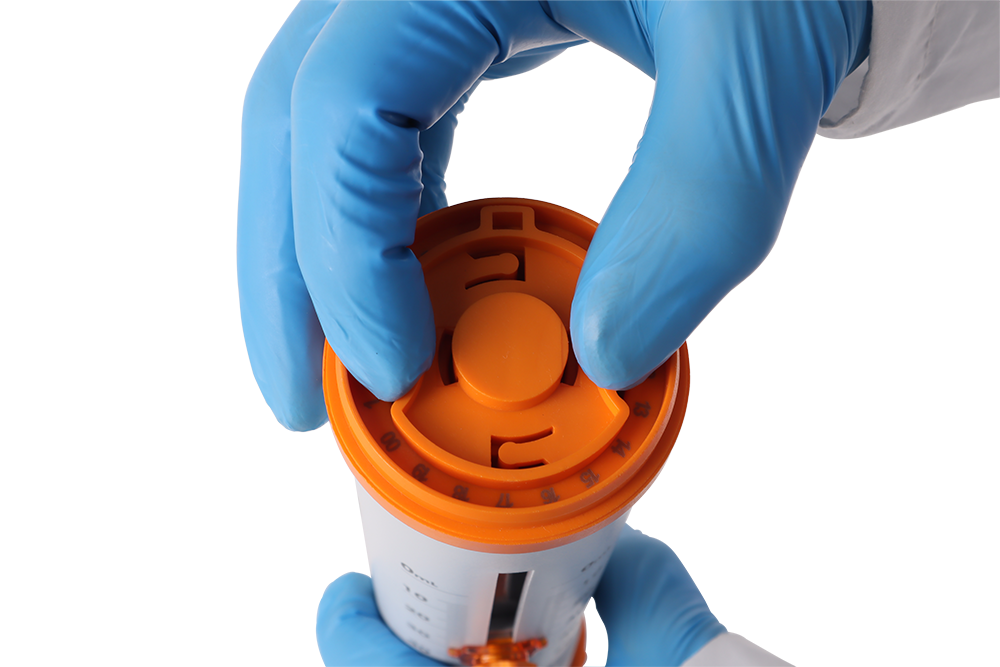

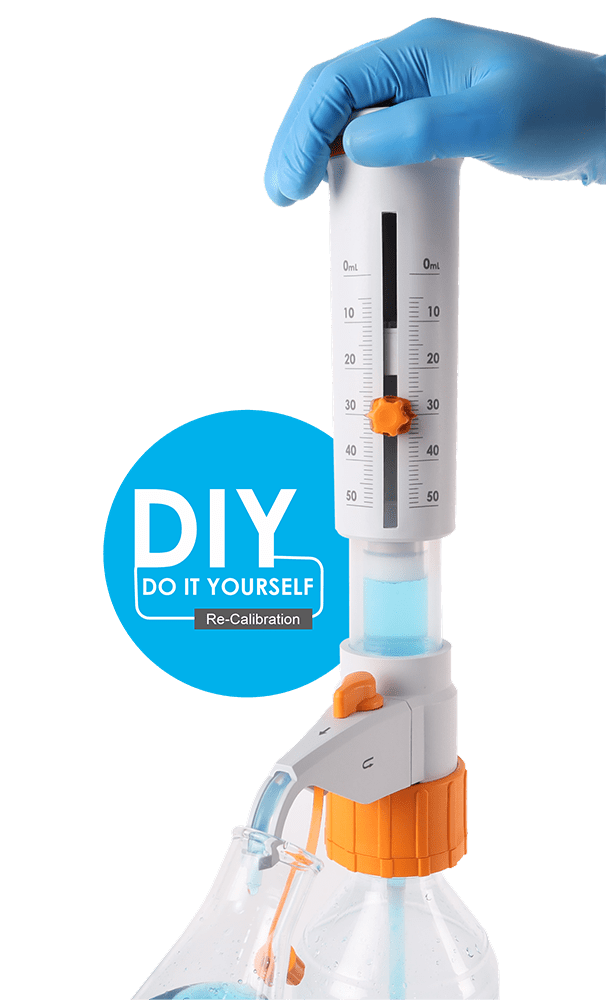

DIY – Calibration Ring:
• Convenient Recalibration by users. No need for expensive third party calibration after dismantling or autoclaving.

•Users can easily reset the calibration using the built in tool and position marker.

•To know more about DIY Calibration Procedure click on the button below

Know more
Bottle Top Dispenser - DIY Calibration

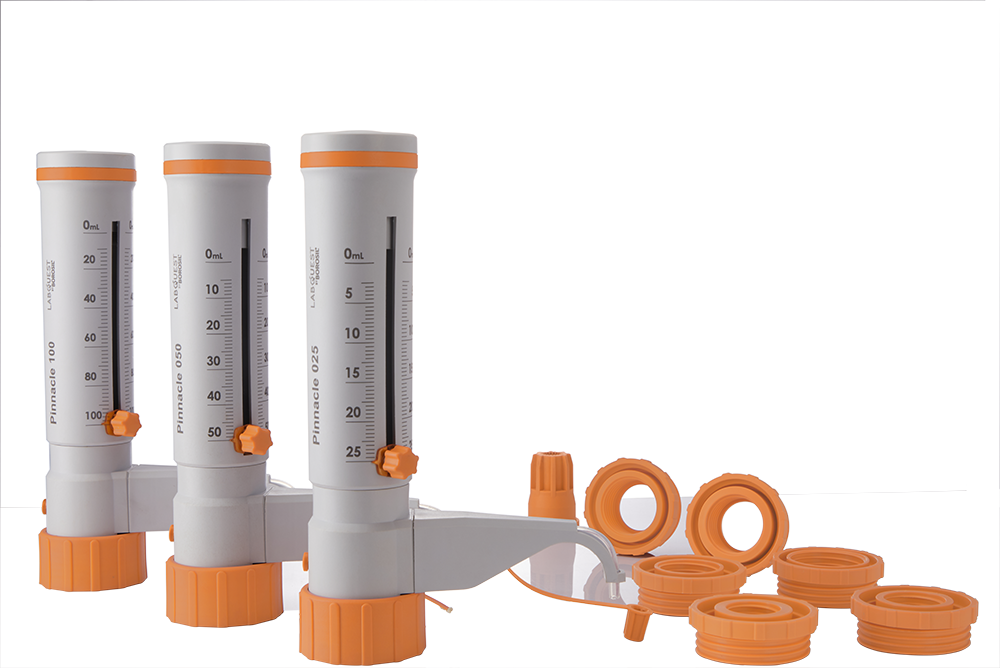

Wide Range of Adapters
28, 32, 36, 38, 40, 45 mm bottle top adaptors Suitable to mount on different reagent bottles.
Bottle Top dispenser

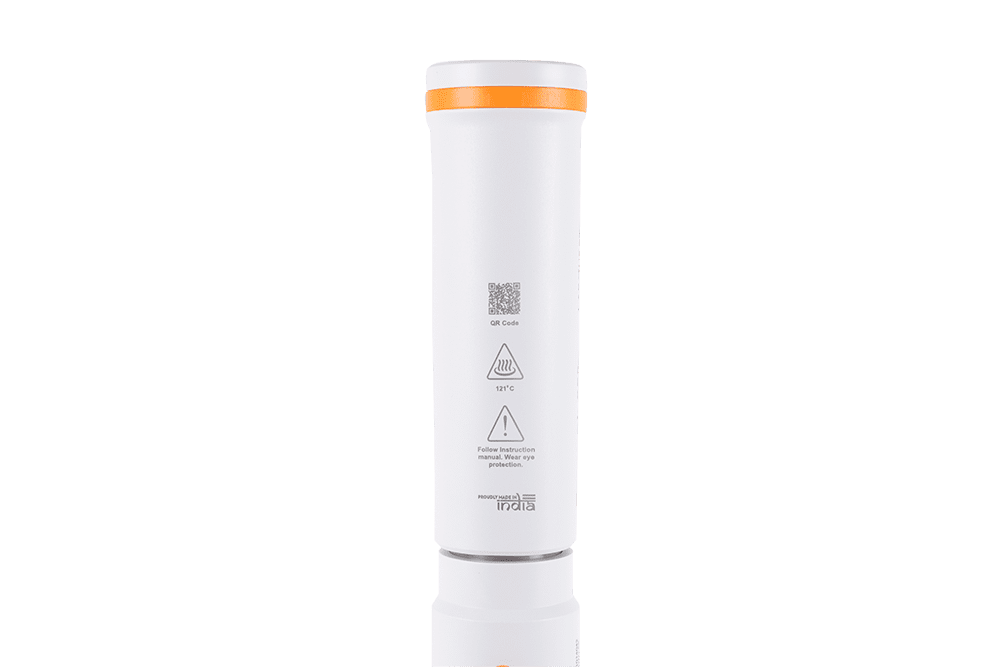

Material of Construction
• Wipe out Piston, Borosilicate Glass, FEP, PTFE & PFA offers high chemical resistance including aggressive solutions like acids, bases or solvents.

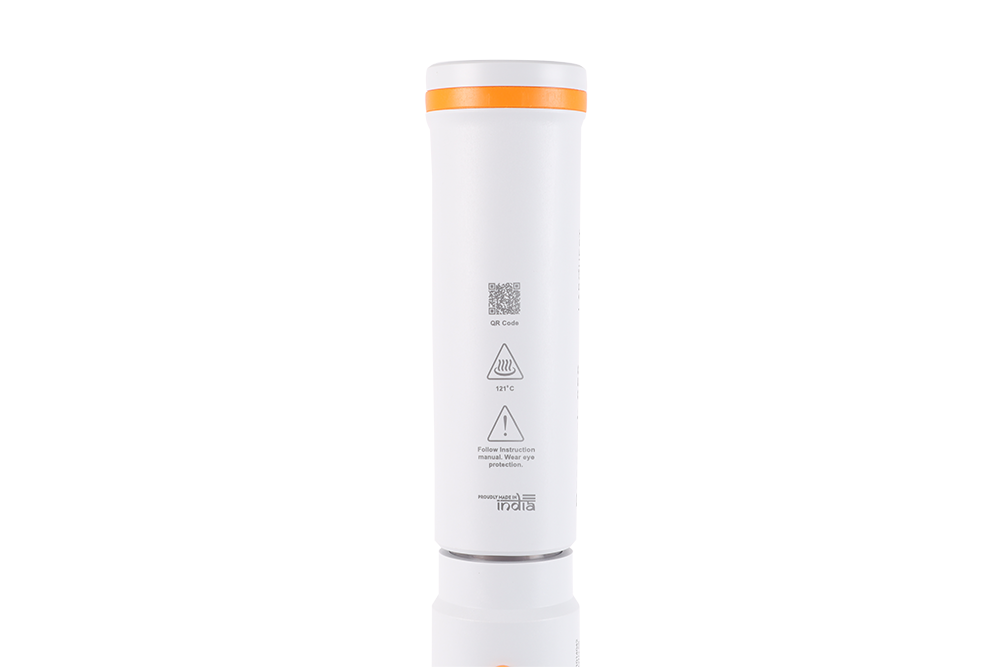

• QR Code – Easy access to the user for Chemical Compatibility.
Bottle Top dispenser

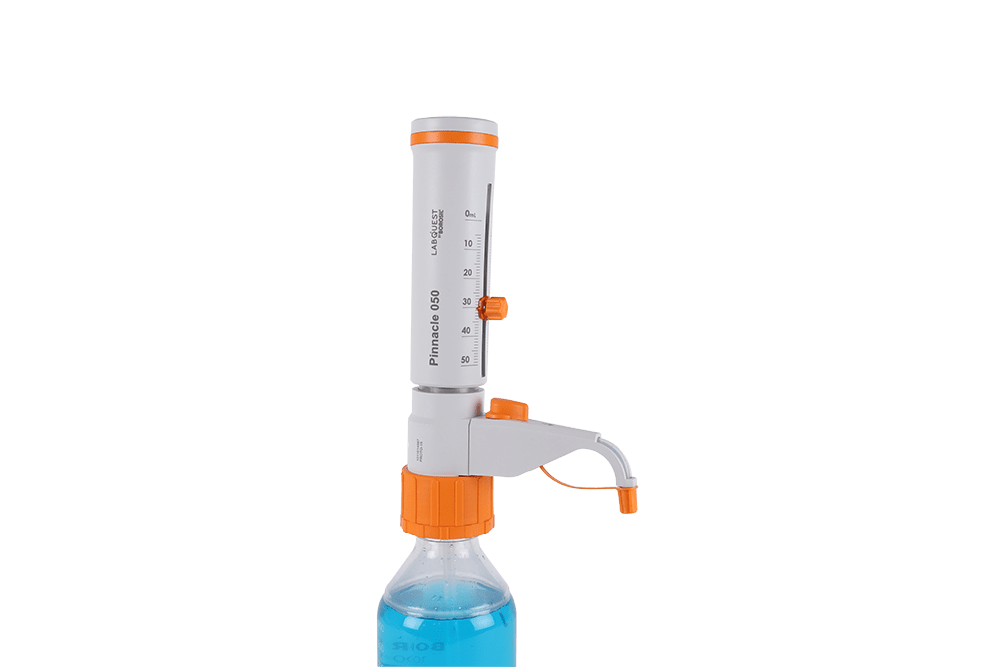

•The Built – in Safety Splash Guard helps to prevent accidental ejection of the discharge tube.

• With a 360° Working position on the bottle offers safe and easy access in all positions.
Bottle top Dispenser
Bottle Top Dispensers Research ModelFully Autoclavable, Calibration and Accuracy as per ISO 865
Vol. Range(ml) Increment(ml) Accuracy ± % Accuracy ± ml CV ± % CV ± ml Product Code RESEARCH Without Recirculation
0.25 – 2.5 0.05 0.6 0.012 0.2 0.004 BLFLLH002011002D00
0.5 – 5.0 0.1 0.6 0.03 0.2 0.01 BLFLLH002011005D00
1.0 – 10.0 0.2 0.6 0.06 0.2 0.02 BLFLLH002011016D00
2.5 – 25.0 0.5 0.6 0.18 0.2 0.06 BLFLLH002011020D00
5.0 – 50.0 1 0.6 0.36 0.2 0.12 BLFLLH002011040D00
10.0 – 100.0 2 0.6 0.6 0.2 0.2 BLFLLH002011100D00

Dispensers come with 28mm, 32mm, 36mm, 38mm, 40mm,& 45mm bottle neck adapter.

Bottle Top Dispensers Pinnacle Model with Re-circulation Valve, Calibration and Accuracy as per ISO 8655
Vol. Range (ml) Increment (ml) Accuracy ± % Accuracy ± ml CV ± % CV ± ml Product Code Pinnacle With Recirculation
0.25 – 2.5 0.05 0.6 0.012 0.2 0.004 BLFLLH002012002D00
0.5 – 5.0 0.1 0.6 0.03 0.2 0.01 BLFLLH002012005D00
1.0 – 10.0 0.2 0.6 0.06 0.2 0.02 BLFLLH002012016D00
2.5 – 25.0 0.5 0.6 0.18 0.2 0.06 BLFLLH002012020D00
5.0 – 50.0 1 0.6 0.36 0.2 0.12 BLFLLH002012040D00
10.0 – 100.0 2 0.6 0.6 0.2 0.2 BLFLLH002012040D00

Dispensers come with 28mm, 32mm, 36mm, 38mm, 40mm,& 45mm bottle neck adapter.

The recirculation valve allows you to prime the Labquest Dispenser without wasting any of your chemical, in Pinnacle Models. In Research Models, operating without a recirculation valve the initial priming dispenses would be discarded out.
Labquest Dispensers facilitate dispensing various reagents, solvents & acids with safety & precision.
Labquest dispensers wetted parts constructed from Borosilicate Glass, PTFE Piston, PFA Valve & FEP tubes can dispense nearly any laboratory chemical/reagent having density up to 2.2gm/cc, vapour pressure 600 m bar.
Limitations of using dispensers include:
• Liquids that attack FEP, PFA and PTFE (e.g. dissolved Sodium Azide)
• Liquids that attack borosilicate glass (e.g. Hydrofluoric acid)
• Hydrochloric acid > 40% and Nitric acid >70%
Tetrahydrofuran
Trifluoroacetic acid
• Explosive liquids (e.g. Carbon Disulfide) Suspensions (e.g. of charcoal) as the solid particles may clog or damage the instrument
• Liquids that attack PP (cap) The permissible concentration of dissolved Sodium Azide is not more than 0.1%.
For details, please refer to the operation manual OR Scan ”QR Code” on dispenser to download chemical compatibility list.
Autoclaving is important to sterilise the bottle top dispenser. Autoclaving can be done at 121° C, 15PSI. for 15-20 mins. Before autoclaving, instruments should be disassembled properly and the volume knob must be kept in an unlocked position.
It is recommended to rinse the dispenser with deionized or distilled water before and after the use. For sensitive or sticky reagents, intensive cleaning is required. For details, please refer to the cleaning and maintenance section.
