Glass Ampoules, Form B

Stem cut ampoule with constriction

• USP Type I, Clear and Amber Glass Ampoules

• 1ml to 50 ml Nominal Volumes

• Installed capacity of over 810 million Ampoules per annum

• Special treatment for pH sensitive products

• Up to 3 identification bands and ceramic printing available

• Extractable report as per USP 232 & 233

• De-lamination report as per USP 1660

image not found Request a Quote
image not found Design your product
Type of Constriction
Conventional Ampoules

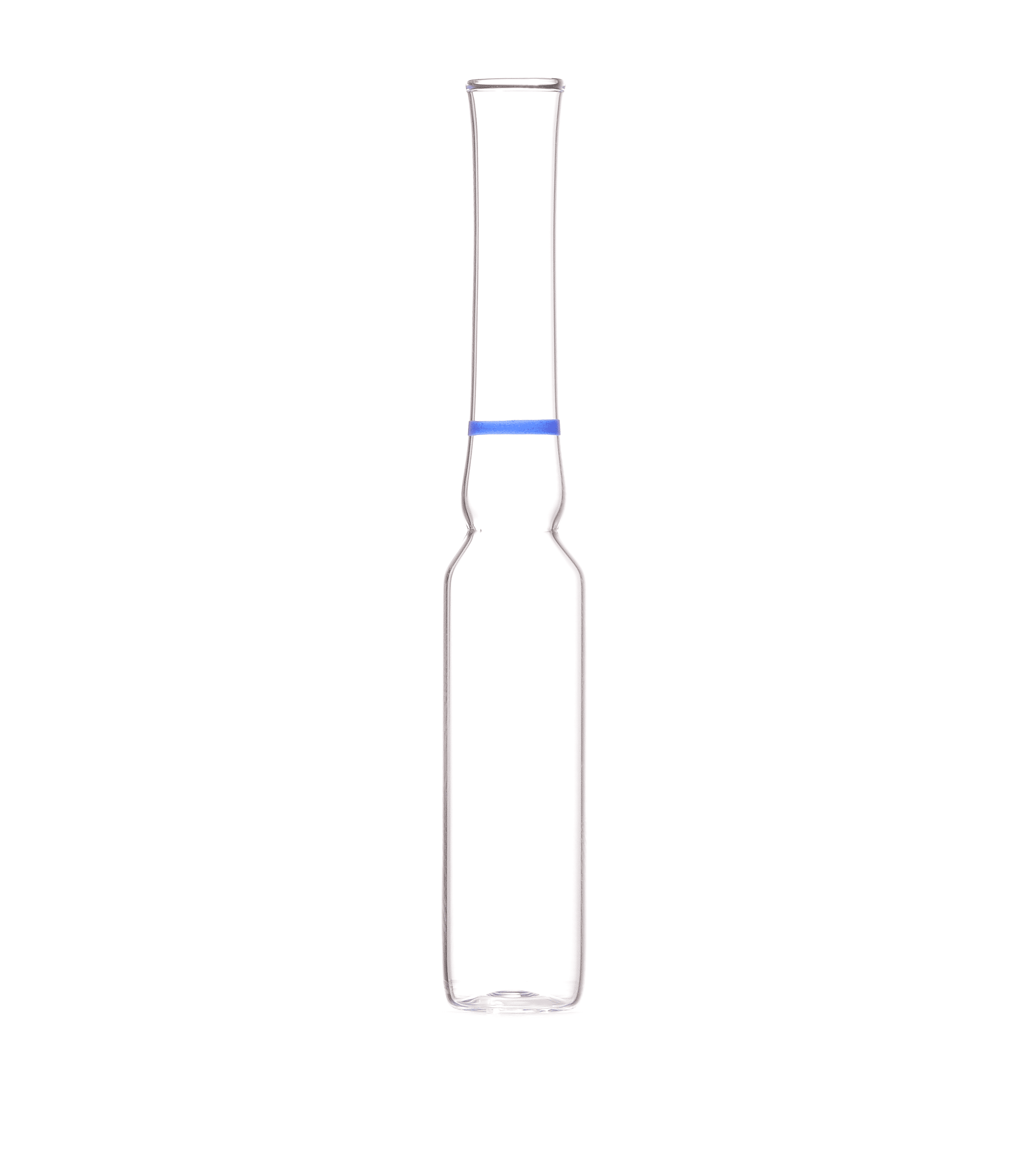

Color Break Ampoules

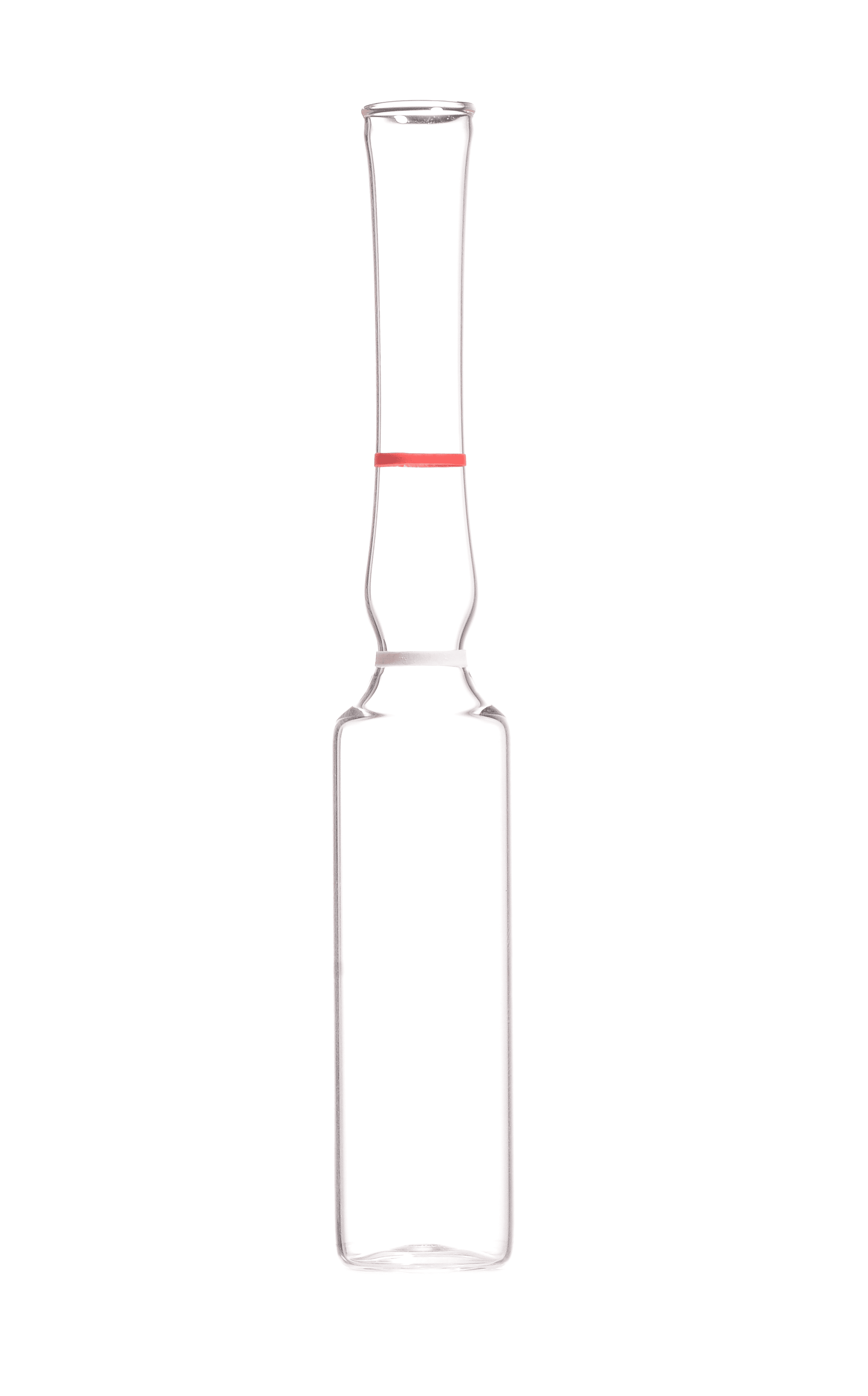

Score Break Ampoules

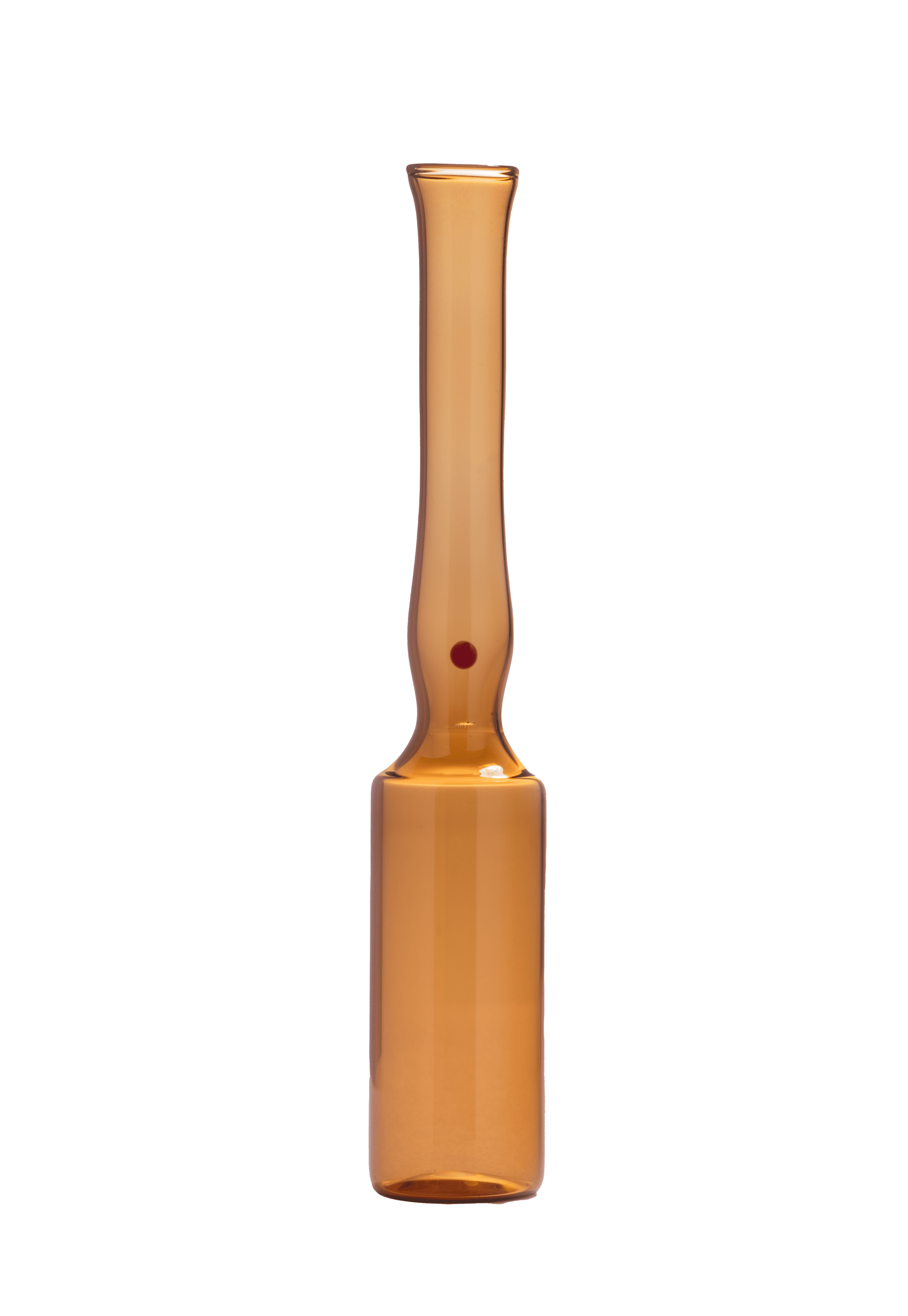

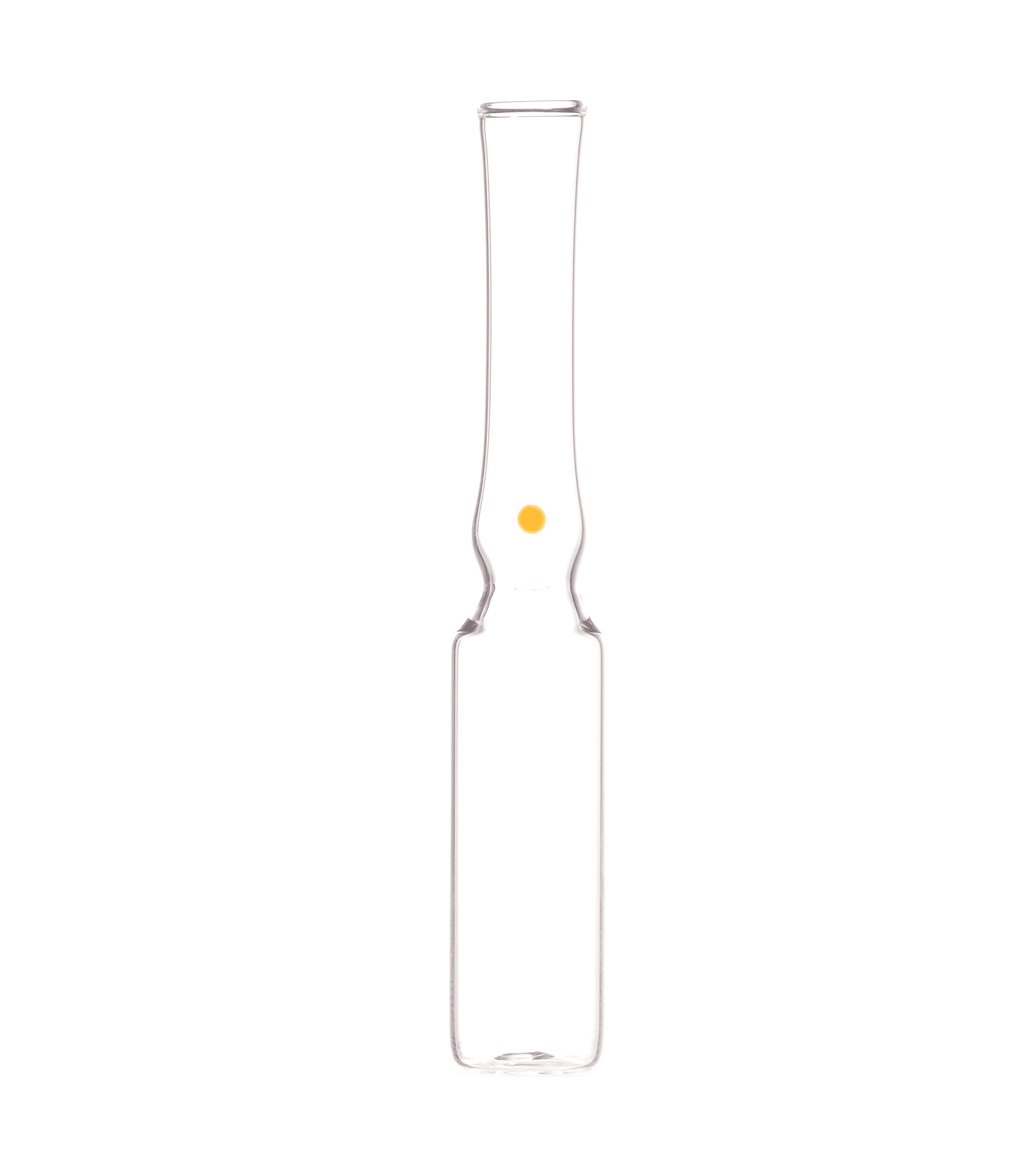

OPC Ampoules
Types of Add Ons
Upto Three ID Bands
Ceramic Printing
Nominal Volume (ml)
1
2
3
5
10
20
25
30
Volume to centre of Constriction (ml)
1.5
2.3
3.5
5.5
11.5
23.5
28.5
33.5
Diameter (mm)
10.75
10.75
12.75
14.75
17.75
22.5
22.5
22.5
Total Height (mm)
60
72
75
83
102
113
128
143
Height to gauging point (mm)
47
57
62
68
87
100
115
130
Wall Thickness (mm)
0.5
0.5
0.5
0.55
0.6
0.7
0.7
0.7
The dimensions mentioned in this table are as per ISO standard
