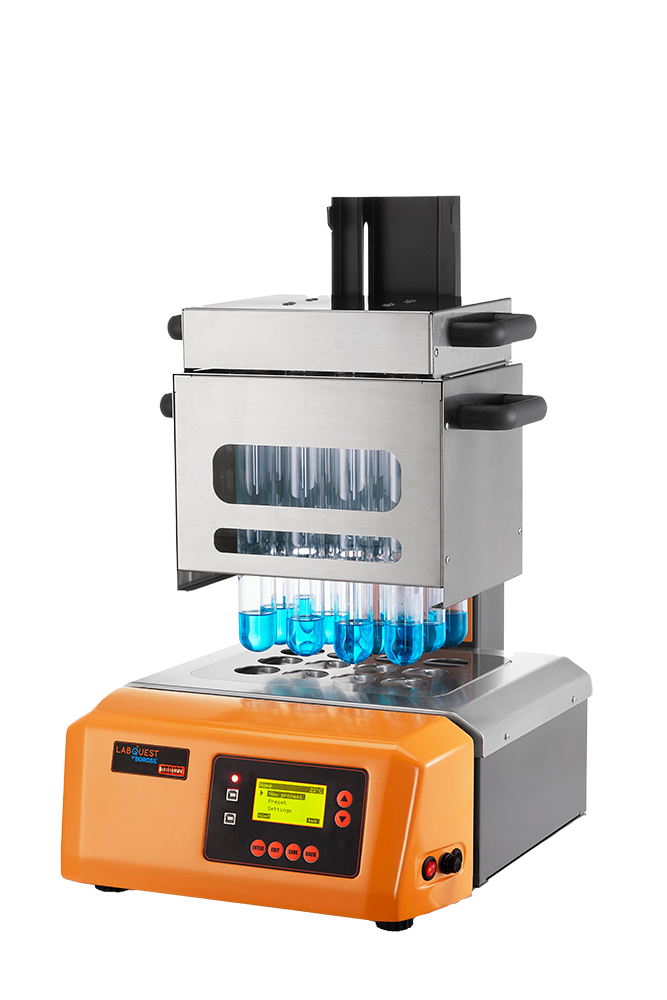

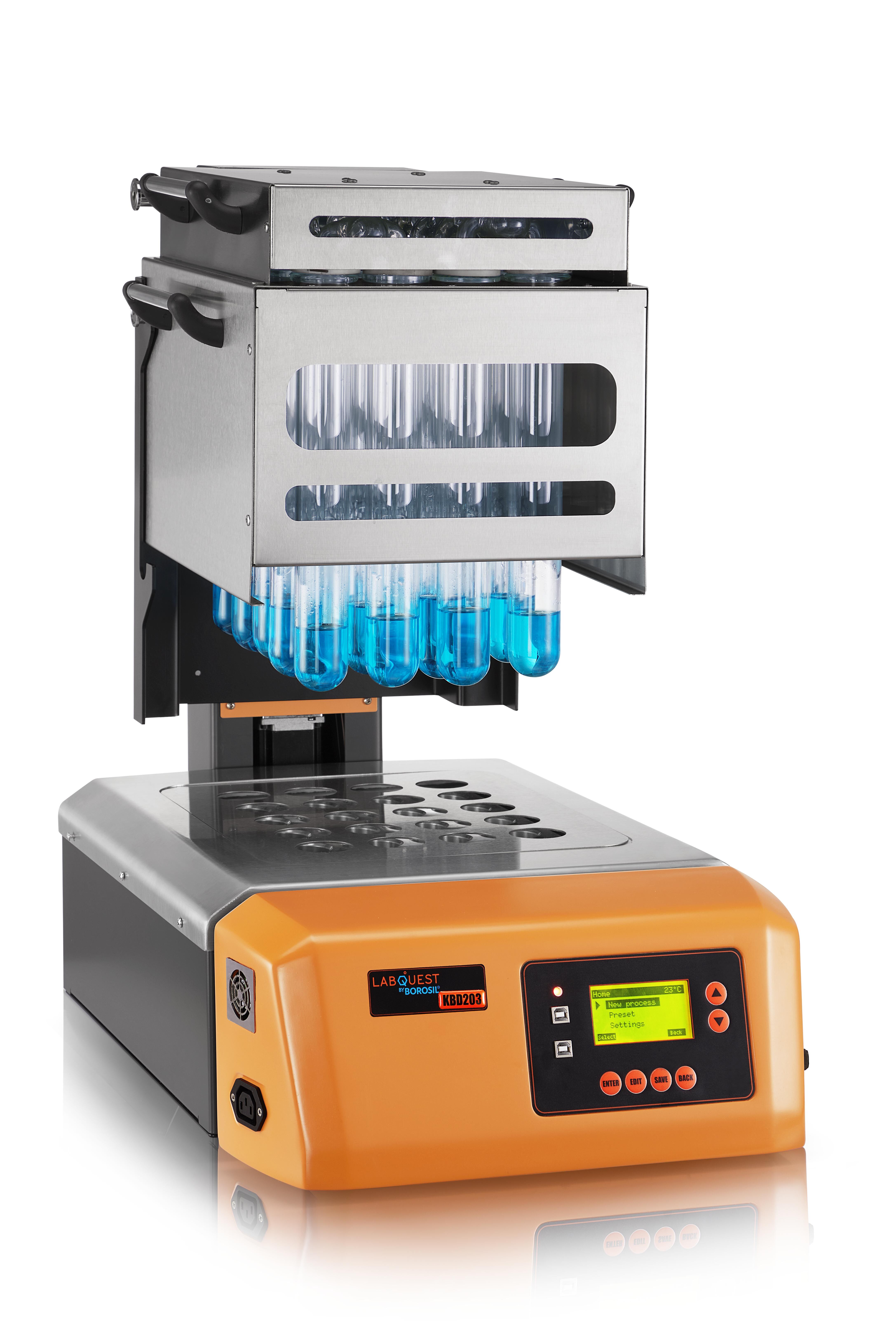

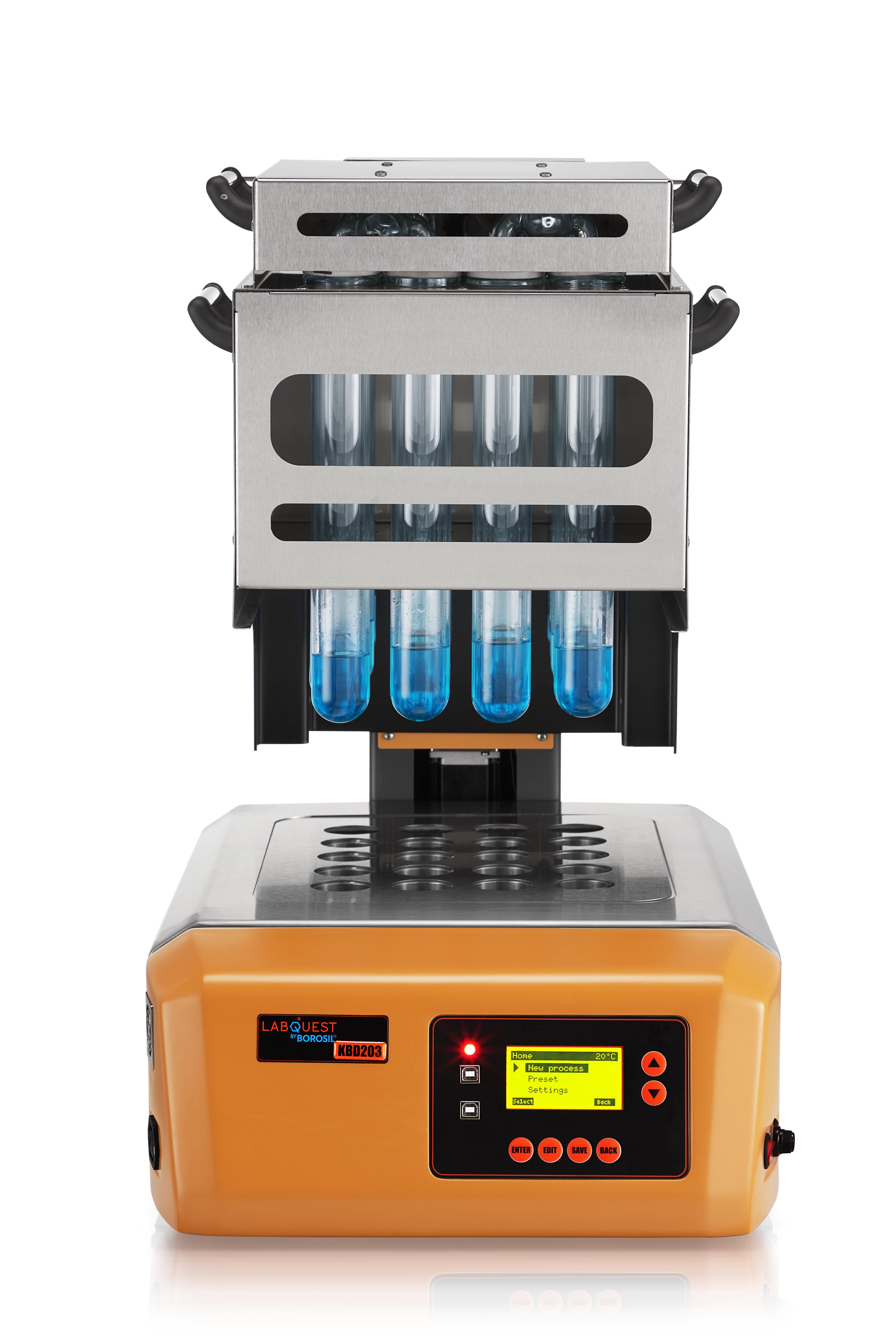

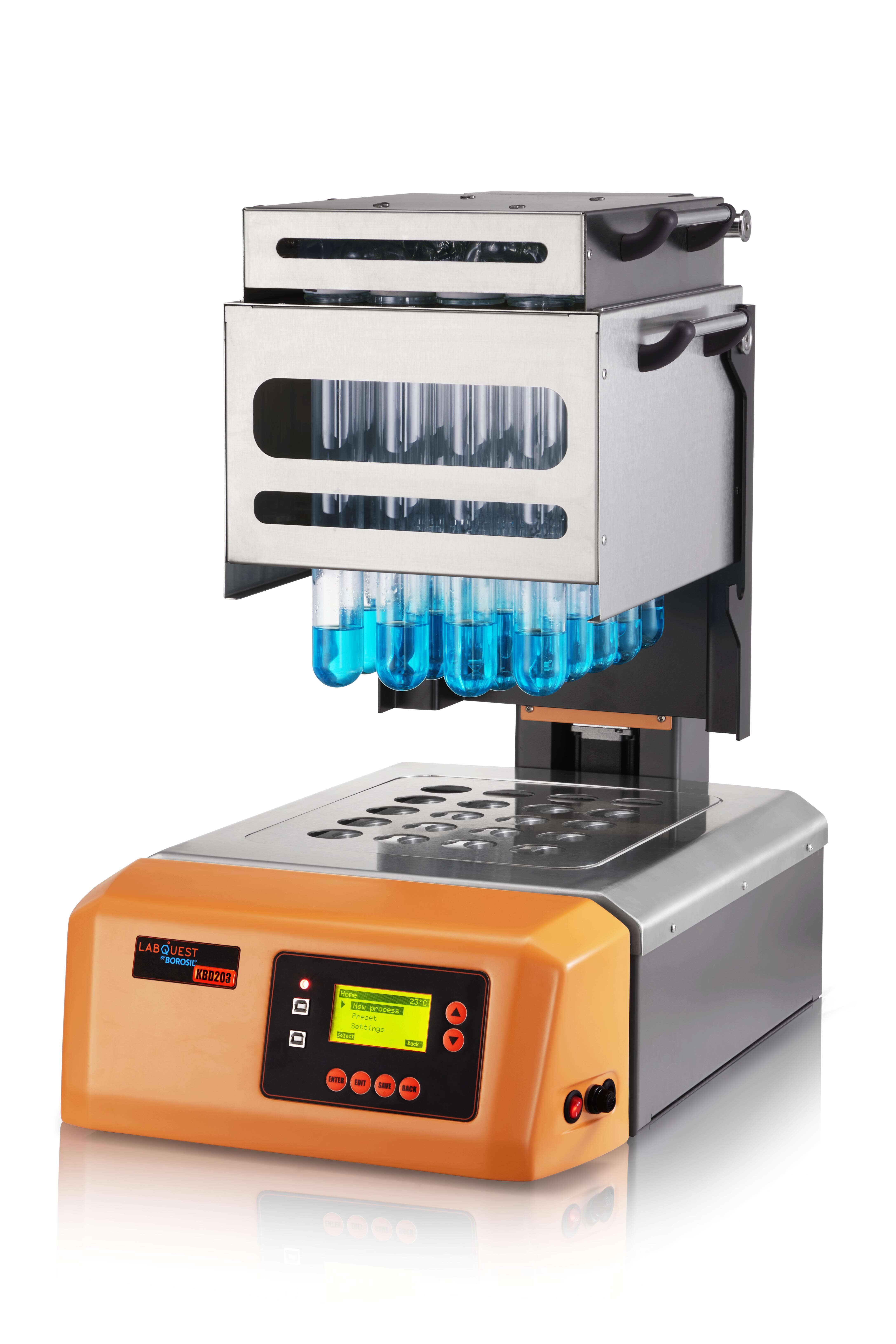

Kjeldahl Magnus Digesters

KBD digesters series offer heating through aluminium blocks, autolift sample handling, suction hood, test tubes, test tube rack and drip tray.
Steady, gradual and smooth rise in temperature makes way for excellent sample digestion

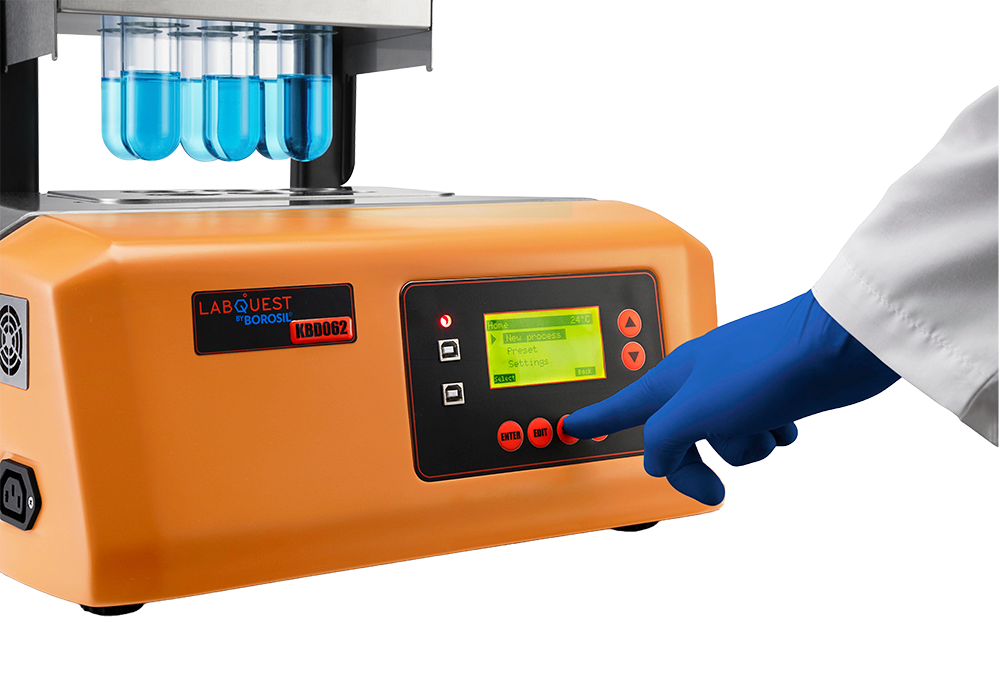

Extremely bright graphical display, easy to read and practical with all the fundamental parameters available at a single glance

Product Code : KBD-1
Efficient, safe and simple

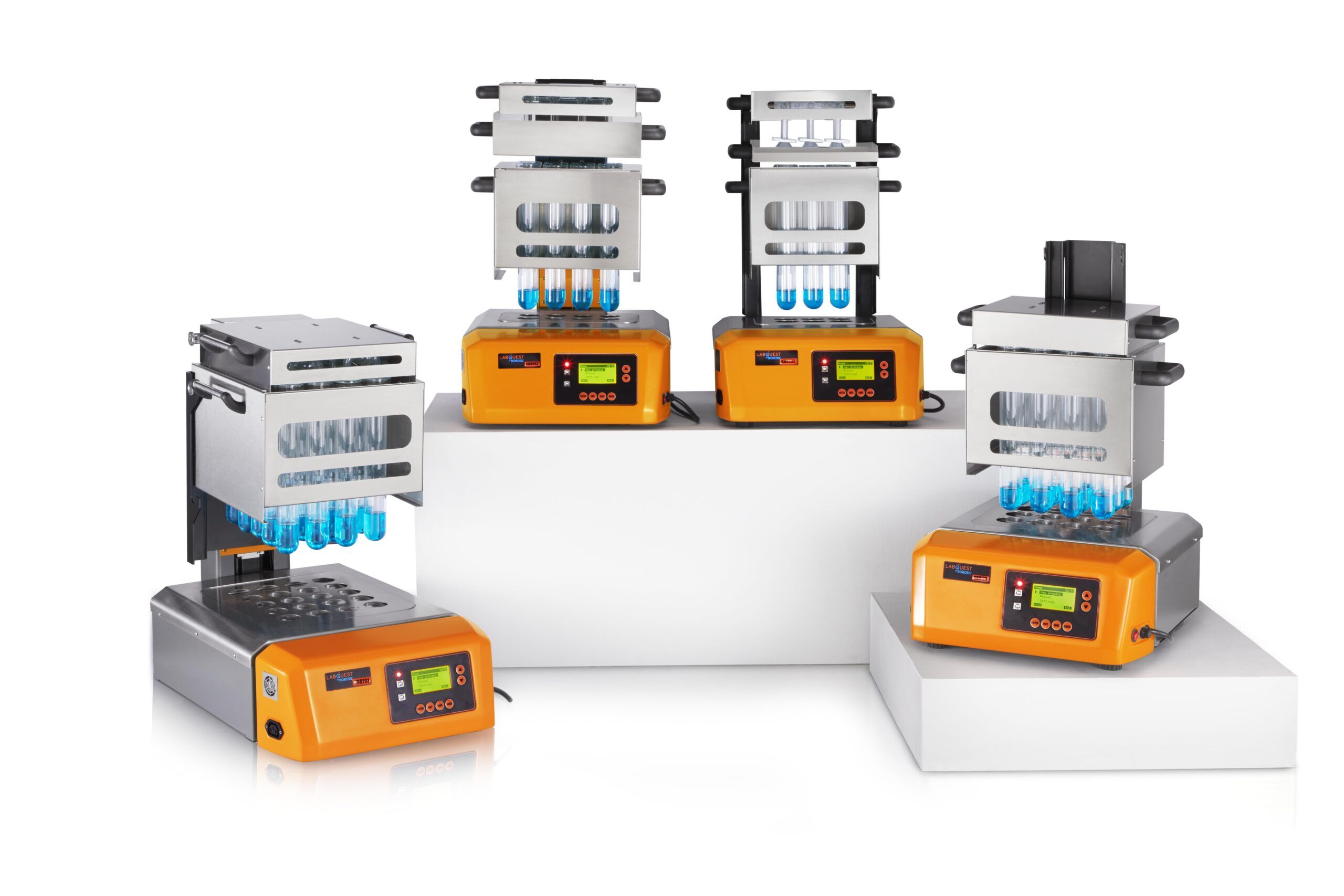

- 6, 8, 12, 20 sample positions specific to industry offering excellent thermal stability and homogeneity.

- The surrounding heat shield and front control fiber panel protects the user from burns during the digestion.

- Intuitive display and easy to operate keys makes it convenient and simple for use
Consistent Digestion with Easy Setup and Control

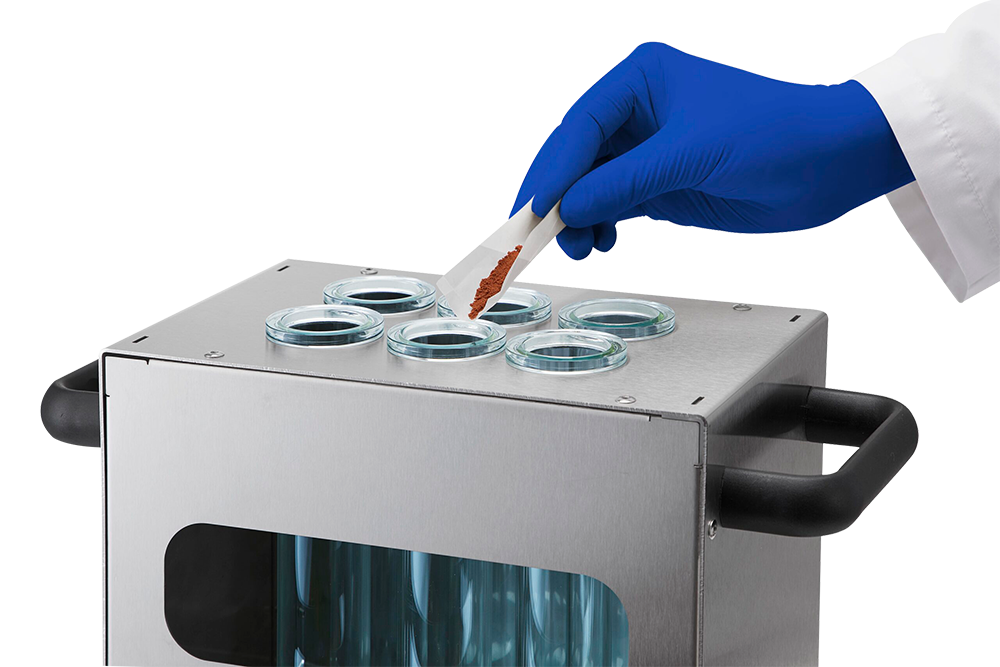

Just weigh your samples, add the reagents and catalysts and select the method of your choice and KBD digesters will do the rest for you Intricately control digestion temperature curves for complete consistent unsupervised digestion
Graphical Process Tracking and Cycle Management
Graphical representation and monitoring of process parameters, pre-set sample cycles, plot ramp rate and digestion time
Safe Operation with Controlled Digestion
- Priority for chemist safety- Safe to touch insulation, Hot surface warning Reproducible digestion due to refined thermal homogeneity
- Delayed scrubber start ensures safe unattended operation and complete fume evacuation

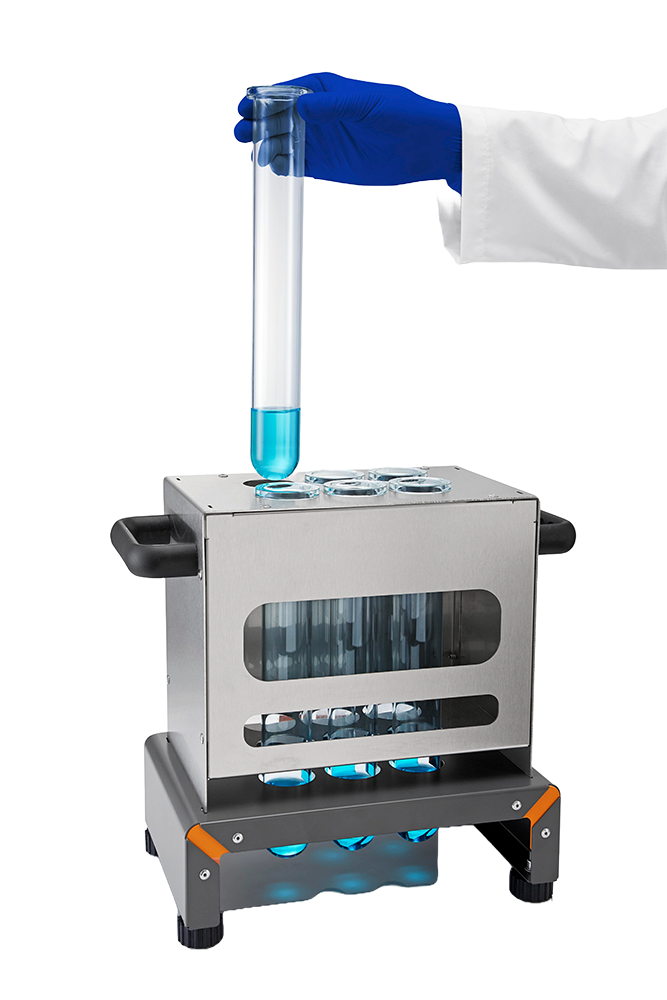

Extended Equipment Life with Protective Tray and Grid
- The easy-to-clean drip tray reliably catches any acid residues
- Extended lifetime of block and accessories with protective drip tray
- The aluminum block protection grid provides enhanced heating performance and protects the heating block from splashes and chemicals

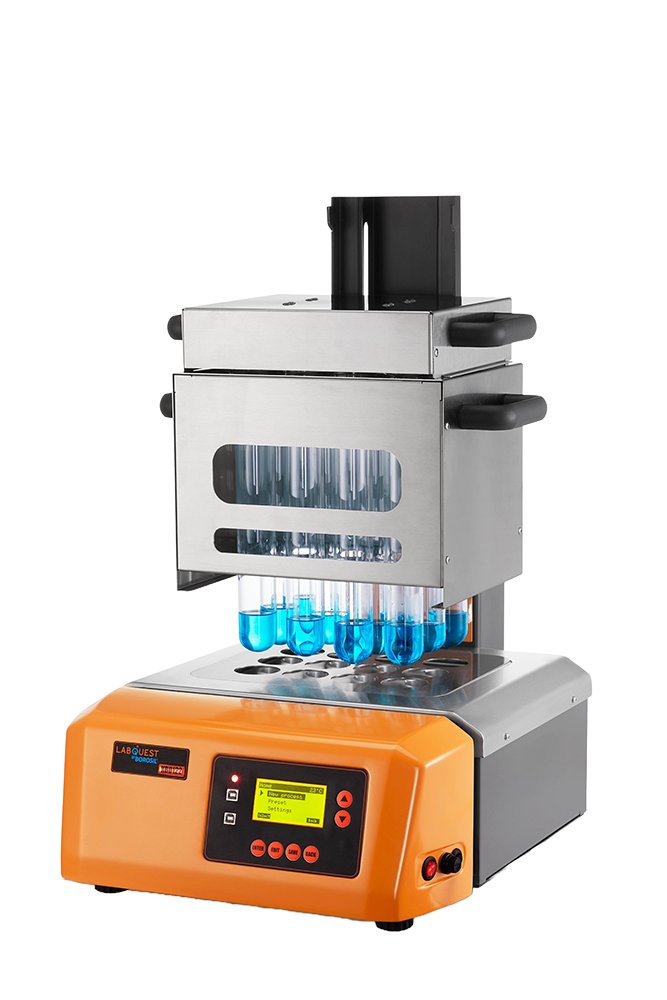

Durable Coating with Accurate Temperature and Auto Lift
- Excellent corrosion protection thanks to the front acid-proof enameled coated based
- Accurate temperature control with the programmed profile
- The automatic lift function ensures comfortable and safe lifting and lowering of test tube rack

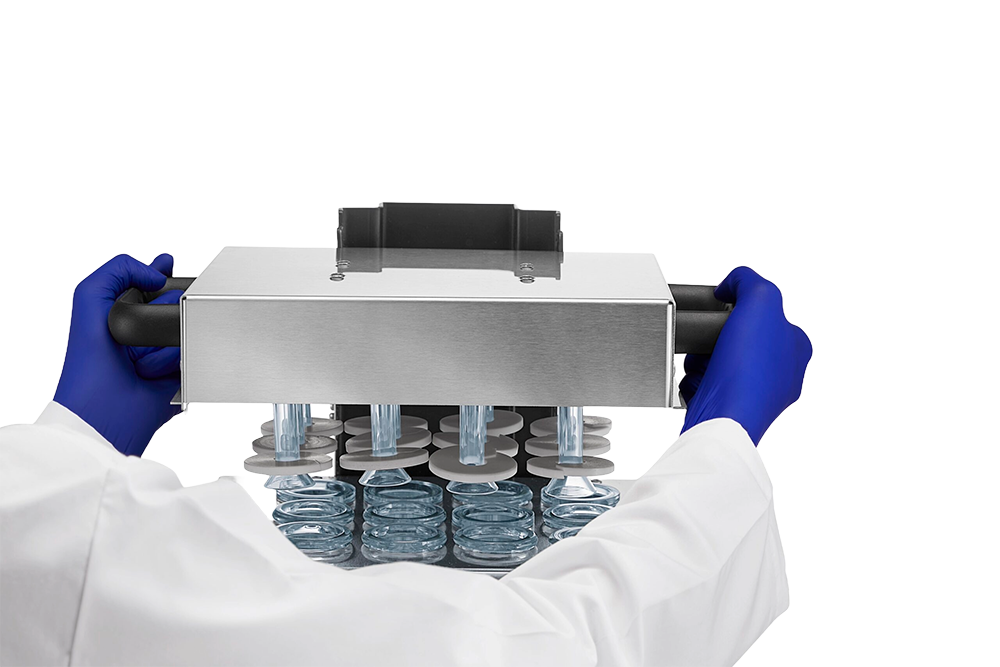

Effective Fume Management with Improved Sealing
Synchronised fume extraction with perfect fit to manifold Improved sealing for effective transfer of harmful fumes

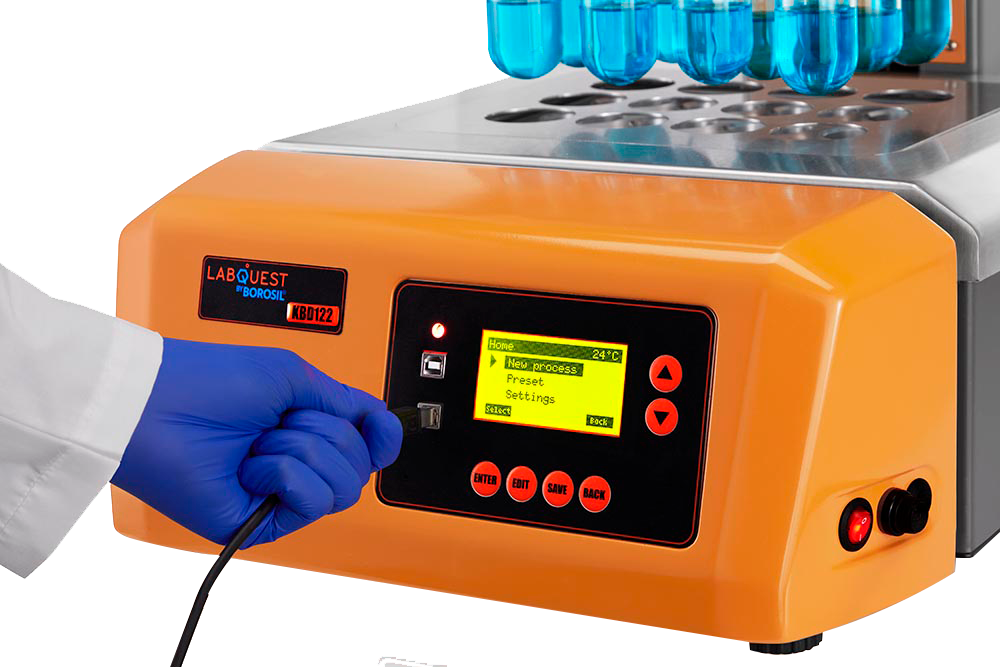

Effortless Data Export with Print and PC Ports
- Easy export of data with print and PC data transfer ports
- Allows documentation of sample time, temperature and other process parameters
Model Name KBD083 KBD123 KBD203
Type Block Digester Block Digester Block Digester
No. of positions 8 12 20
Tube capacity (ml) 250 / 400 250 / 400 250 / 400
Temperature Range Ambient to 470°C Ambient to 470°C Ambient to 470°C
Timer Range 1-300 mins 1-300 mins 1-300 mins
Temperature Precision ±1°C ±1°C ±1°C
Ramp and Hold upto 4 upto 4 upto 4
Presets upto 50 upto 50 upto 50
Auto scrubber ON/OFF Yes Yes Yes
PID control Yes Yes Yes
Autolift Yes Yes Yes
Auto OFF after achieving set time Yes Yes Yes
Temperature Calibration Yes, single and two point Yes, single and two point Yes, single and two point
PC & Printer Connectivity Yes, upgradable Yes, upgradable Yes, upgradable
Display Graphical LCD Graphical LCD Graphical LCD
Body Stainless steel with control pannel of FRP Stainless steel with control pannel of FRP Stainless steel with control pannel of FRP
Current Consumption 6A 8A 12A
Dimensions (W x D x H) (416 X 554 X 595) mm (416 X 554 X 595) mm (410 x 585 x 735) mm
Power Consumption 1400W 1600W 2800W
HSN Code 84198990 84198990 84198990
Ordering Code BLFAKBD08300000000 BLFAKBD12300000000 BLFAKBD20300000000
