Kjeldahl Magnus Distillation Unit with Autotitrator

Fully automated Nitrogen/ Protein determination units with touch user interface & inbuilt autotiration.For the modern chemist in Milk & Dairy, Food, Feed, Grains, Cereals, Oil Seeds, Meat & Meat Products, Beverage Laboratories.
In built application library and process optimized analysis

Product Code : KDI060
Smart User Interface

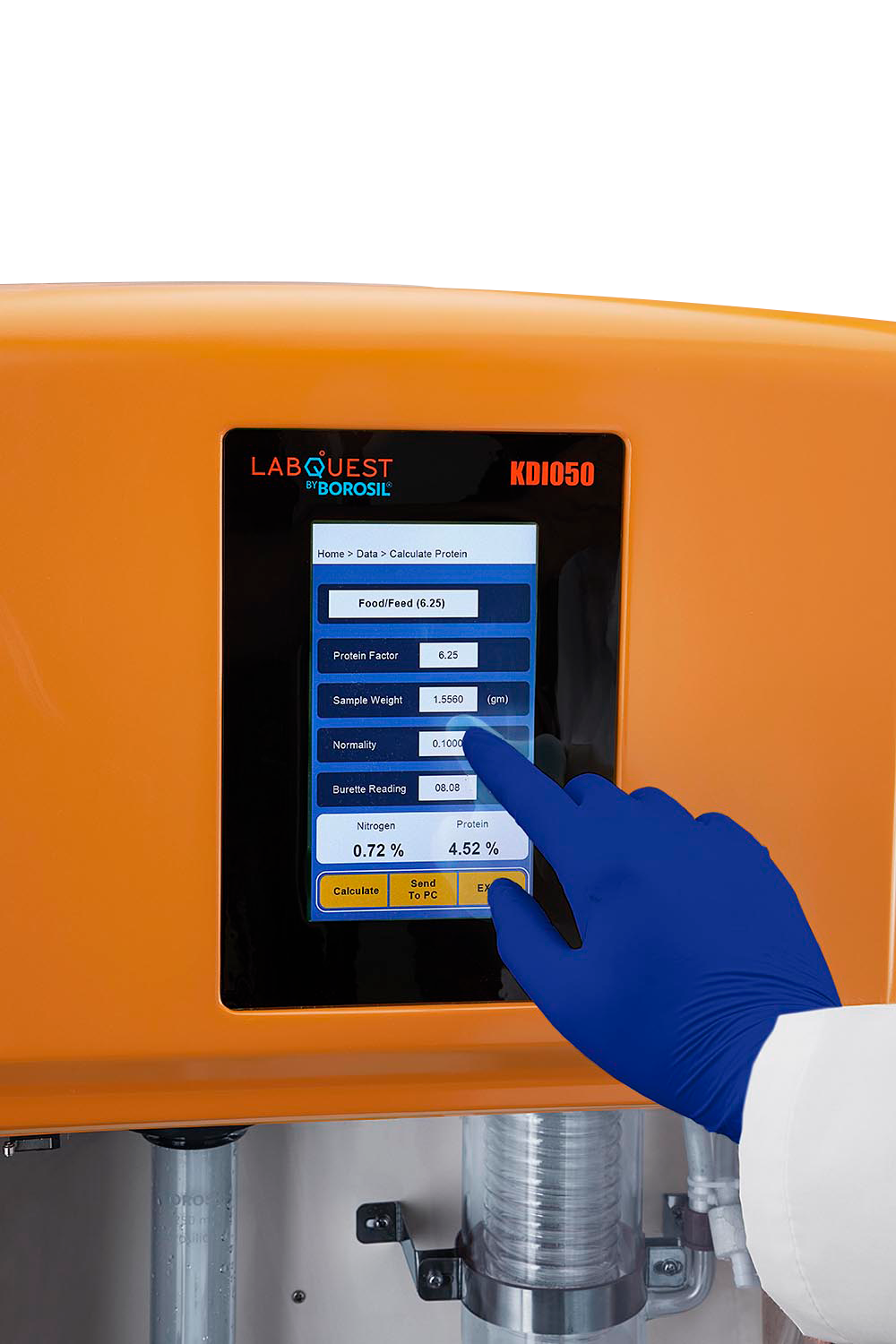

• Bright 7″ color touch screen and easy-to-use software guide the operator step-by-step

• Clear and intuitive operations thanks to the Smart User Interface and digital display

• Inbuilt Nitrogen calculator that provides Nitrogen and Protein results in just one touch.

• Programmable Reaction Time with Continuous real time monitoring of steam temperature, display at the time of water filling and other parameters
High-Precision Titration with Accurate, Reproducible Results
• Potentiometric autotitrator employs a high-precision pH sensor to detect the endpoint of the titration reaction, ensuring accurate and reproducible results every time

• With its advanced algorithms and robust hardware, the unit delivers reliable data, even for the most challenging samples
Programmable and Auto Features
• The Mangus Kjeldahl distillation unit combines excellent value-for-money with high reliability and advanced performance

• Programmable water, acid and sodium hydroxide addition

• Selectable steam generation output level 10% – 100%

• Auto removal of residues from sample tube
Advanced Operator Safety with Efficient Steam System
• Unit is provided with maximum safety for the operator

• Sensors monitor tube in place, safety doors, reagent levels, cooling water flow-rate and more

• The Steam Generator guarantees safe working conditions with quick pre-heating time, high performance and resistance which works with distilled water or direct tap water when connected with a softener
Efficient Maintenance with Robust Design
• Modular design with glass reinforced polymer construction simplifies maintenance

• Validated and chemical-resistant components benefit from low operating costs

• A stand-by mode and the separately controllable cooling water supply keep costs down

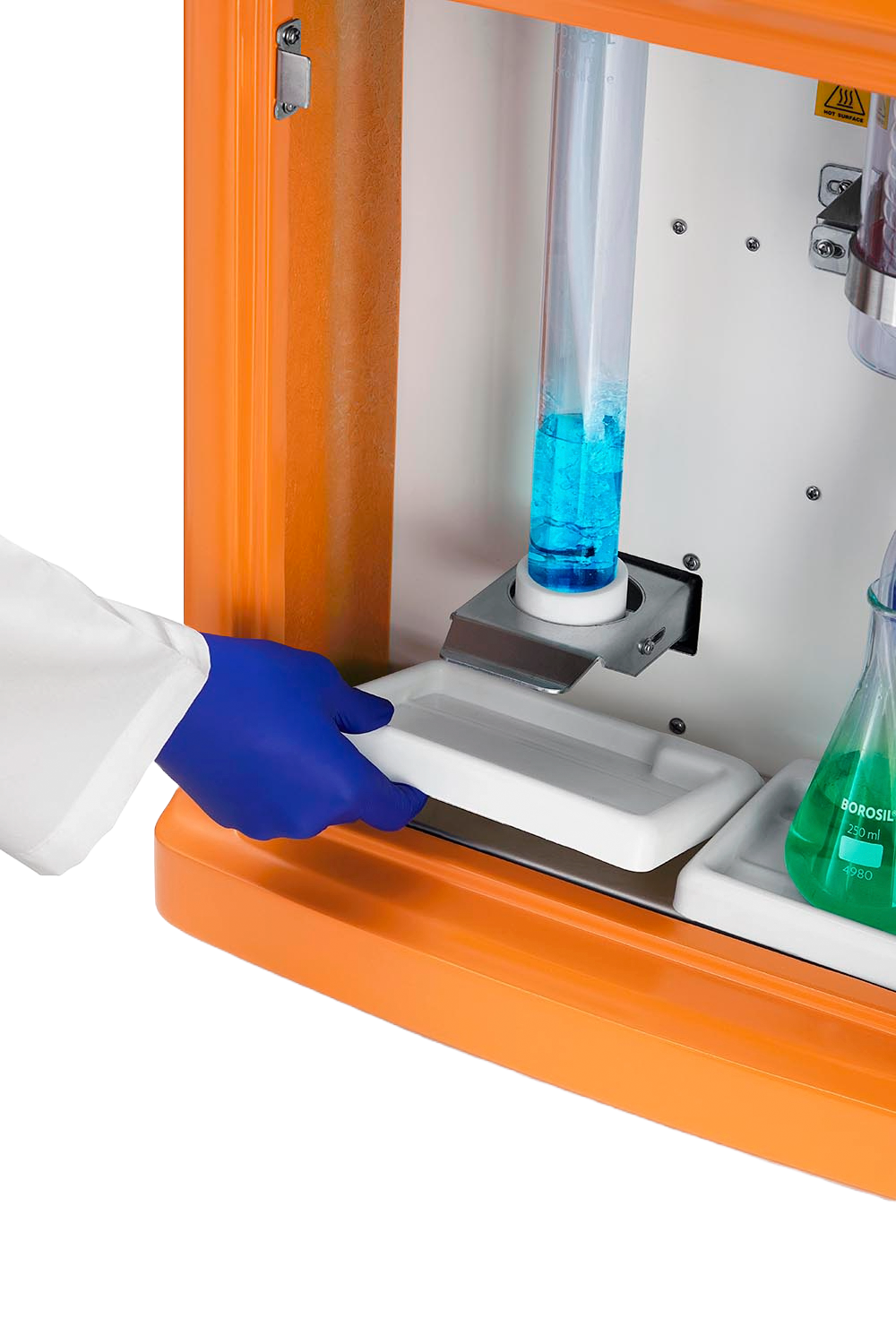

• A removable bottom drip tray ensures quick cleaning and longer unit life
Model Name KDI060
Steam Addition Automatic
Distilled water addition Automatic
Alkali addition Automatic
Residue drain Automatic
Display 7'' colored touch screen
Tube Capacity (ml) 250 / 400ml
Steam power regulation (Adjustable) 10 to 100%
Minimum distillation time (mins) 5
Reagent level sensor Yes
Anytime alkali addition Yes
Tube error detection Yes
Door close sensor Yes
Process resume from stop Yes
One point alkali and distilled water pump Yes
Two point calibration for acid pump Yes
Real time monitoring of process parameter Yes
SELV protection Yes
Programs 40 preset, 10 user editable
PC Connectivity Yes
Nitrogen recovery >99.5%
Nitrogen reproducibility 0.01
RSD <1%
LOD 1-200mg with of =0.1mg of Nitrogen
Titration Type pH base
Water Addition Automatic
Distillation Residue Removal Automatic
Titration Cleaning Vessel Automatic
Detection Limit 0.1ml
Analysis time upto 1min
Titration Residue Removal Automatic
Boric Acid Addition Automatic
Burette Resolution 0.03ml/drop
Power Supply 230V/50Hz
Current Consumption 10A
Power Consumption 1800 W
Dimension (L x B x H) mm (480 × 470 × 820) mm
HS Code 84198990
Ordering code BLFAKDI06000000000
