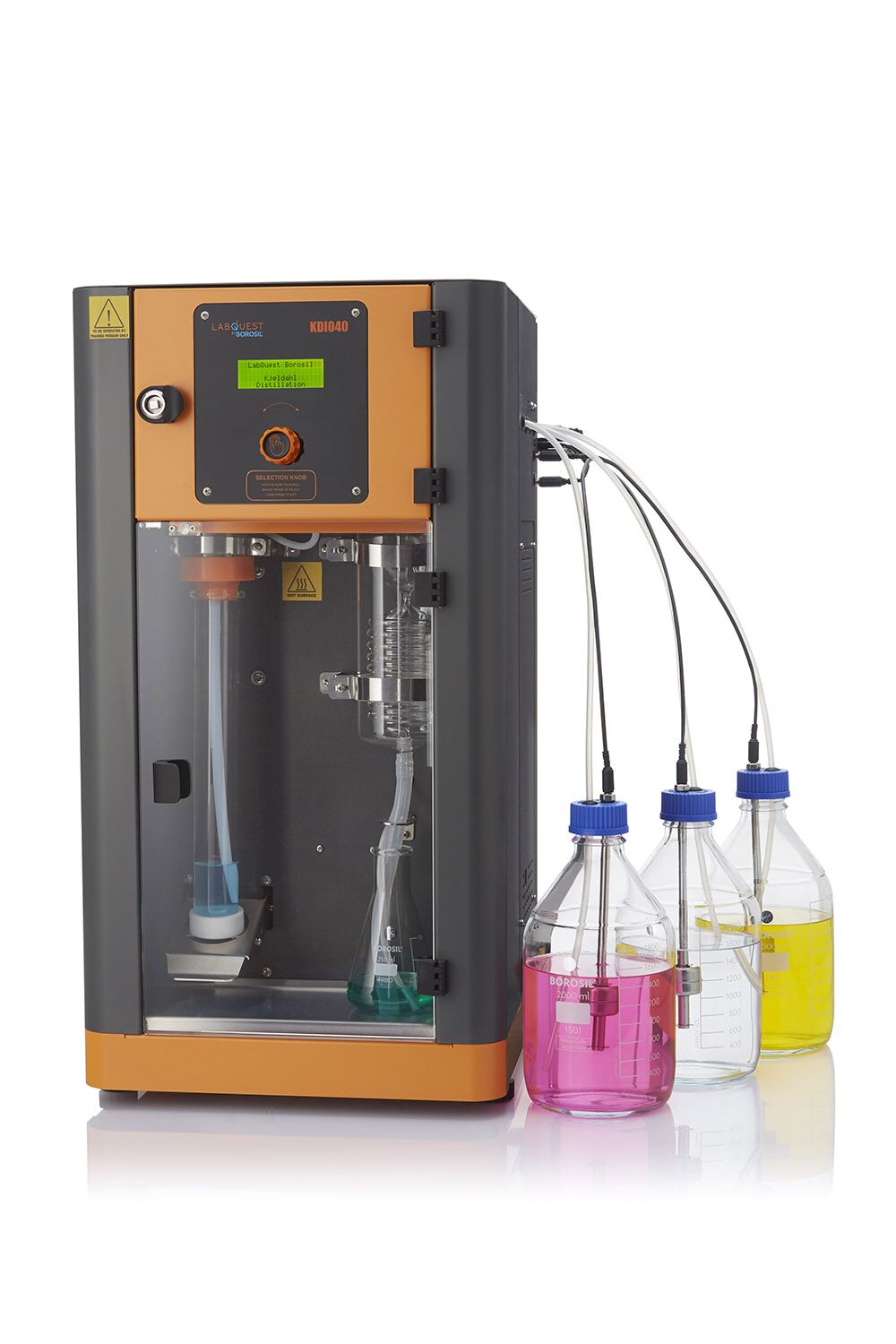

Kjeldahl Oracle Distillation Unit

KDI040, an automatic system controls all functions with a single rotary button. Allows automatic addition of steam, alkali, distilled water & acid. Recommended for all types of industries that estimate ammoniacal and organic Kjeldahl nitrogen.

Product Code : KDI040

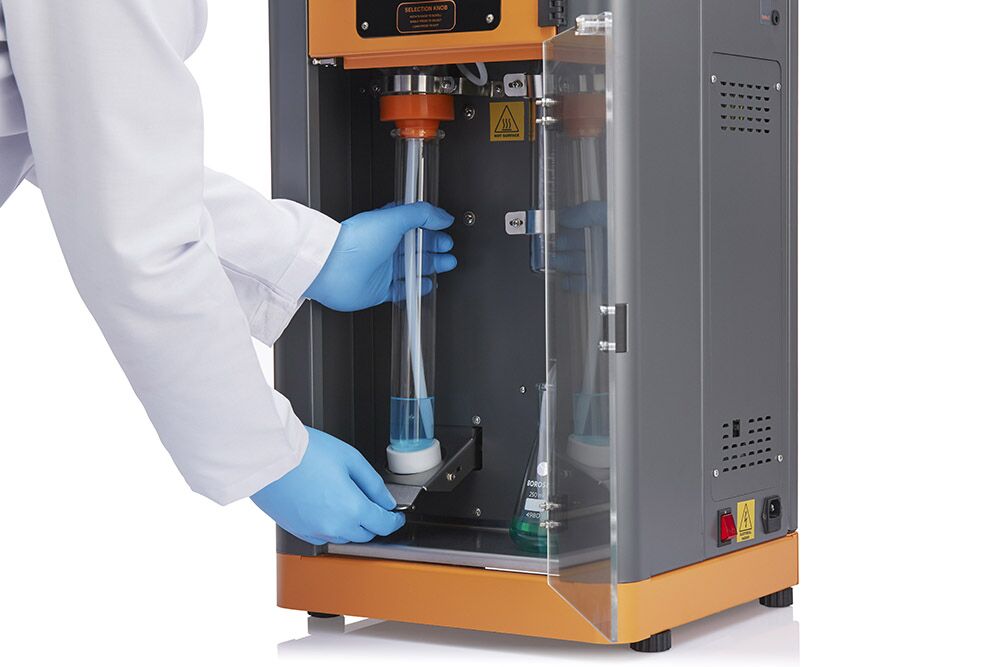

Convenient Alkali Addition and Drip Protection
- Single knob control function
- Detachable bottom drip tray for extra protection against acidic attack during sample loading
- Single press precise addition of alkali anytime during the distillation cycle
Kjeldahl Oracle Distillation Unit
Smart Reagent Management with Calibration and Usage Alerts
- Reagent refill level sensor to avert reagent dry out
- Acid and alkali pump calibration for accurate reagent dosing
- Documentation of no. of cycles and hours of usage with auto service and maintenance alerts
Kjeldahl Oracle Distillation Unit

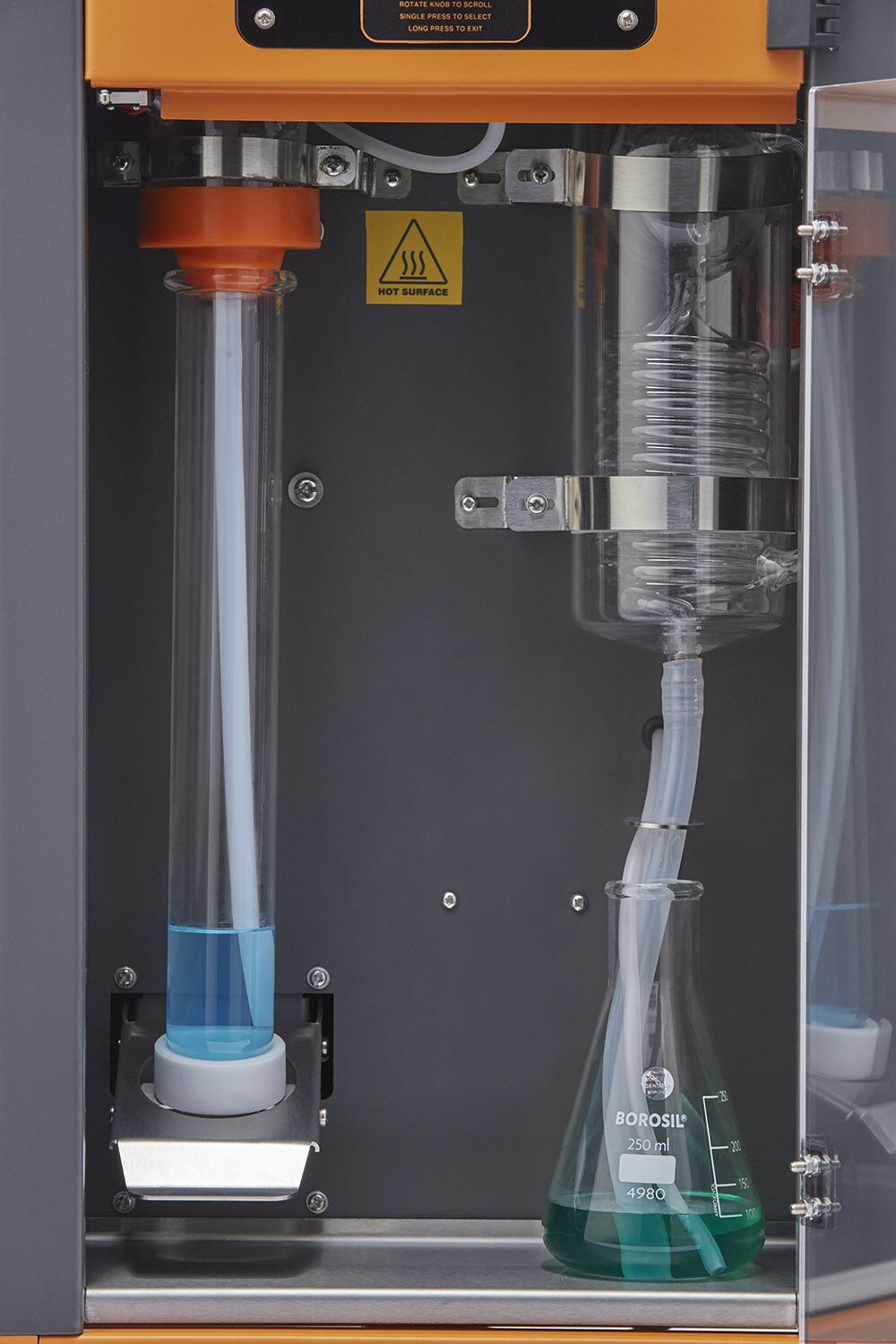

Safe Operation with Tube Sensor and Durable Materials
- Tube sensor that enables safe operating conditions in event of tube damage
- Borosilicate glass assembly along with SS steam generator enhances the life of the unit
Kjeldahl Oracle Distillation Unit
Safety Kill Switch for Process Interruption
Process kill switch to halt the process in case of accidental door opening
Kjeldahl Oracle Distillation Unit
Feature/ Model KDI040
Steam addition Automatic
Distilled water addition Automatic
Alkali addition Automatic
Boric acid addition Automatic
Input for 20 sample processing NA
Display LCD
Tube Capacity (ml) 250/400ml
Steam power (Adjustable) 25% to 100%
Minimum distillation Time (mins) 5
Reagent level sensor Yes
Anytime alkali addition Yes
Tube error detection Yes
Door close sensor Yes
Process resume from stop Yes
One point alkali and distilled water pump Yes
Two point calibration for acid pump Yes
Real time monitoring of process parameter Yes
SELV protection Yes
User Editable Programs 50 (10 pre defined editable programs)
Nitrogen recovery >99.5%
Nitrogen reproducibility ±1 %
RSD <1%
LOD 1-200mg with of ≥0.1mg of Nitrogen
Current Consumption 5.5 A
Power consumption 1000 W
Dimension (L X B X H) (650 x 350 x 725) mm
HSN Code 84198990
Ordering Code BLFAKDI04000000000
