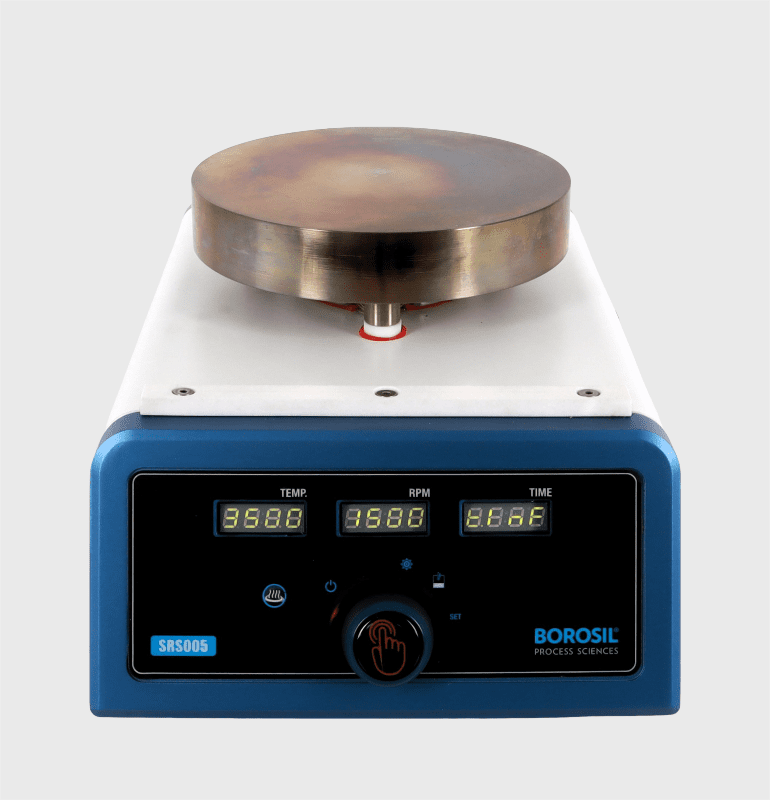

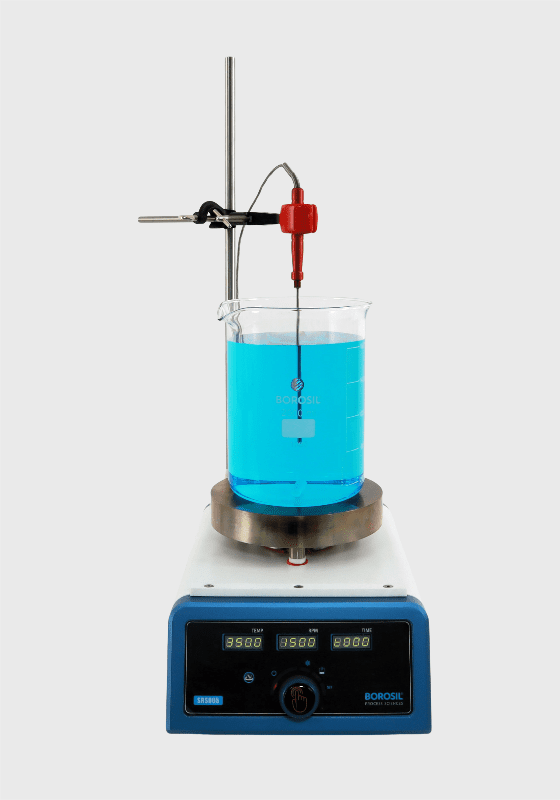

Magnetic Hot Plate Stirrer (Heat & Stir)- 5L

Hot Plate Stirrer is reaction system is a block based reactor system provides solutions for many chemical reactions that require a constant input of heat and stirring to speed up the functional sequence.

Product Code : HPS

Practical Design

Hermetic Design (Liquid and fume sealed)

Smart Display with Safe temp setting

Integrated Control System with Digital Display and quick setting knob & Control Unit with Digital Display

Rugged Design with precise temp & measuring

Temperature Sensor Better durability & very precise measuring "Wide Heating Surface ⌀168 mm "

Mode Name	Hot Plate Stirrer SRS005
Stirring Positions	1
Max Capacity	5 L
Max Speed for H2O	2000
Timer	upto 999 min or Continuous Mode
Plate Temperatures upto °C	350 °C
Temperature Accuracy	Operation with external temperature measuring sensor Pt1000: ± 0.2 K
Safe Temperature Setting	Yes
Hot Indicator when Plate is above 50 °C	Yes
Pulse Mode	NA
Display	3 x 4 Digit Seven Segment Display
Temperature Increments	Yes
Stirring RPM Increments	Yes
Top Plate Material	Stainless Steel
MOC Body	Aluminium
Power Consumption	2 kW
Magnetic Bar	Yes
Top Plate Dimensions	⌀168mm
Safety Warning for Plate Temp above 50°C	Yes
IP Protection Class	IP21
Supplied with Probe Specs	PT1000 Probe
Drive	BLDC motor 28 watts
Rotation speed range	100 – 1500 rpm
Heating power	1000 watts @ 230 V
Temperature range	RT – 350 °C, setting accuracy 1°C for Plate
Heating control	PID
Power input	230 V, 50 Hz, 6 A
Product Dimensions (L x B x H) in mm	360 x 220 x 165 mm (approx)
Ordering Code	BLFHSRS00500000000
Price/ Piece	On Request
