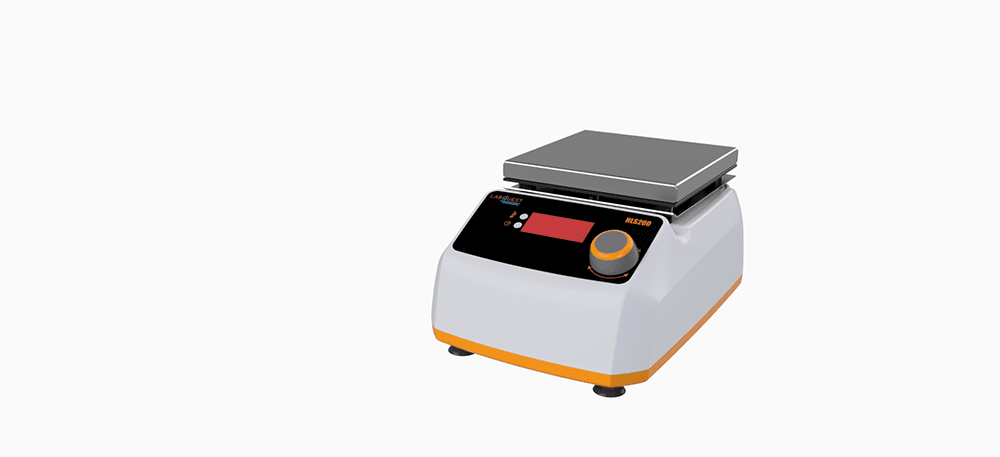

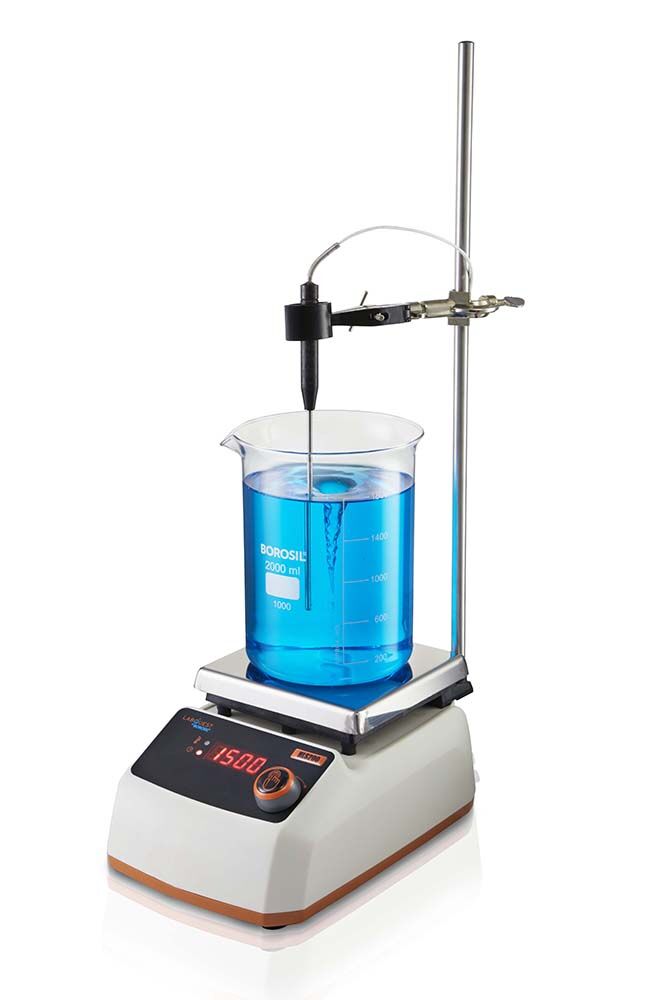

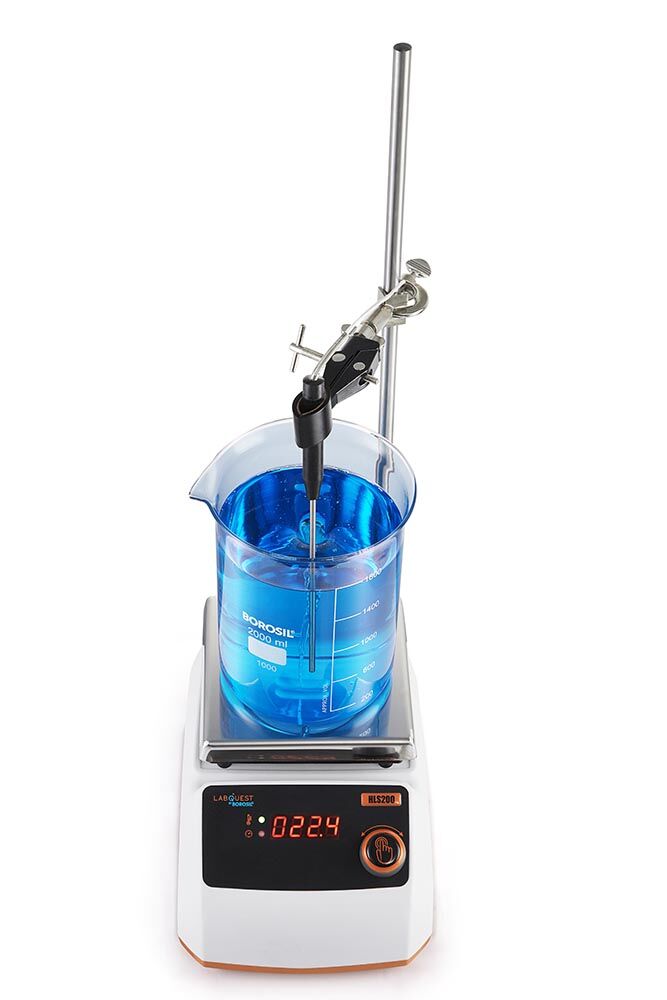

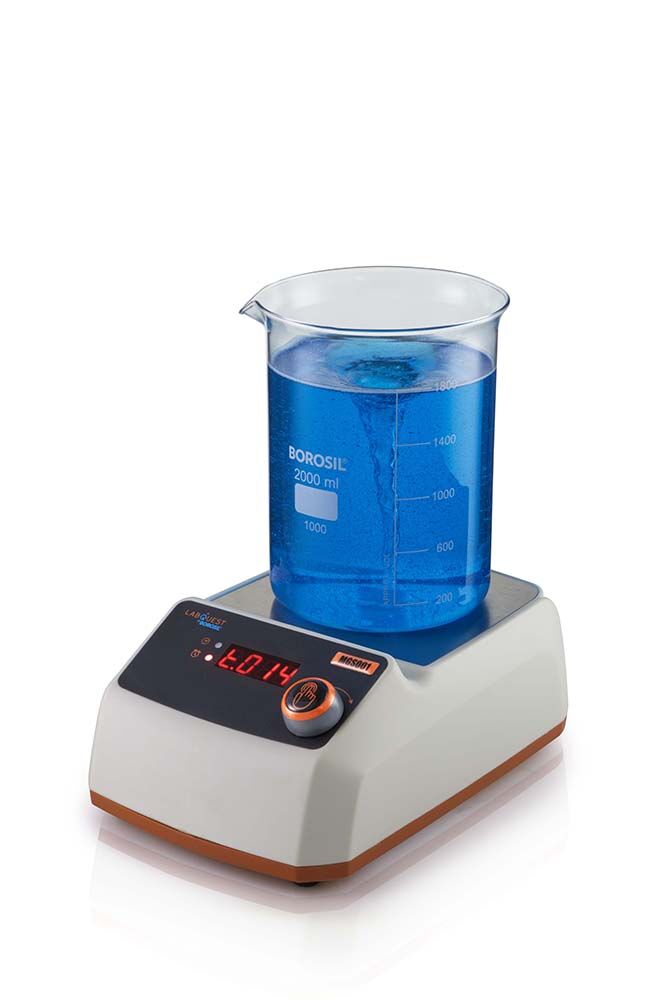

Magnetic Hot Plate Stirrer(Heat & Stir)-2L & 20L

Wide applications

Heating and Mixing: For all laboratory applications with low viscosity fluids

Improved Temperature Regulation

Variable Heating Speed to meet user’s requirement. Allows both quick and gradual heating, Precise Temperature control with PT 100 probe for carrying out error free processes.

Efficient Stirring

Strong Magnetic Field that allows stirring volumes up to 2L with ease.

Smart Display with Safe temp setting

Compact magnetic stirrer with digital display with accurate speed, timer setting and Microprocessor PID controlled

Enhanced Safety and Convenience Features

Safe Mode to restrict maximum temperature while working with aggressive fluids, Elevated control panel protects the display from spilled solutions,

Ease of Maintainance

Easy cleaning of heating plate and device casing

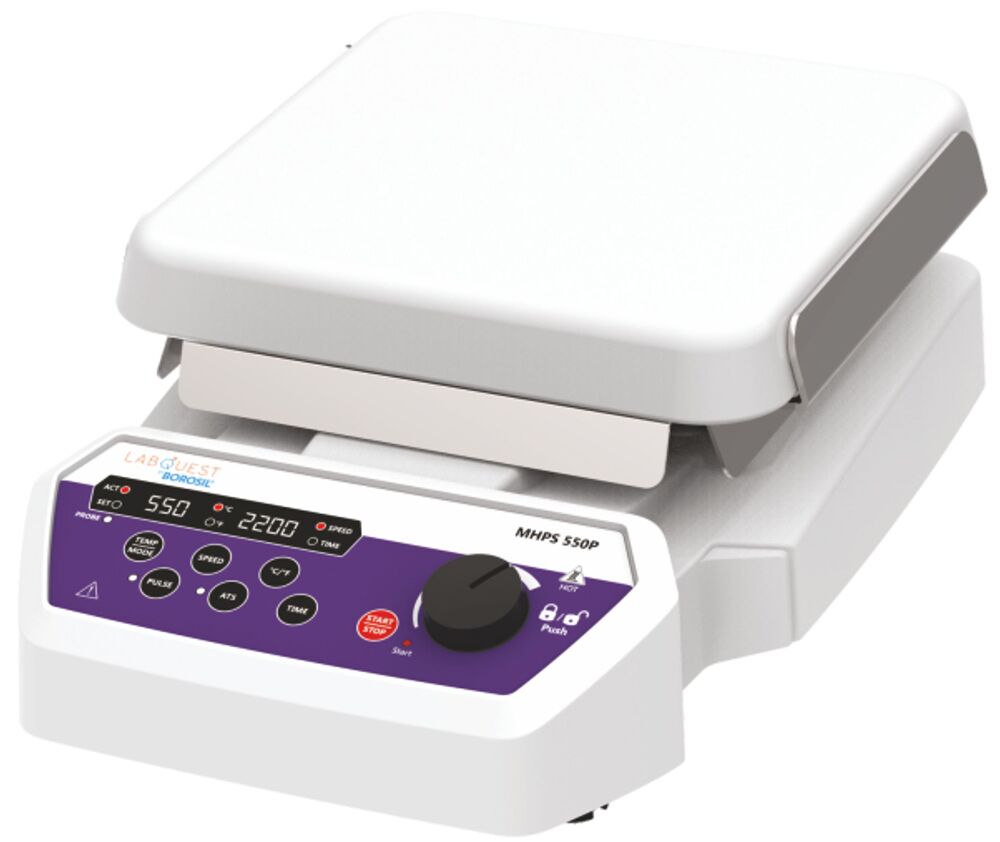

Parameter	HLS 200	MHPS 550P Premier
Stirring Position	1	1
Max Capacity	2L	20L
Max Speed for H2O	1500 RPM	upto 2200 RPM
Timer	0- 999 min OR Continuous	0- 999 min OR Continuous
Plate Temperature	Ambient +5 degC - 300 degC	Ambient +5 degC - 550 degC
Liquid Temperature	External PT100 Probe upto 150 degC	External PT1000 Probe upto 280 degC
Safe Temperature Setting	Yes	Yes
Hot Indicator when Plate is above 50 degC	Yes	Yes
Pulse Mode	NA	Yes
Display	LED Digital	Dual Set & Actual Temp, RPM & Time
Plate Material	SS	Ceramic
Power Consumption	2A, 230V, 325W	5A, 230V, 1000W
Magnetic Bar	25mm'	25 mm
Top Plate Dimensions	150X155	180X180
Product Dimensions (L x B x H) in mm	260 X 190 X 155 mm	313 X 212 X 110 mm
Safety Warning for Plate Temp above 50 degC	Yes	Yes
Protection Class	IP21	IP21
Supplied with	PT100 Probe only	PT1000 Probe & Stand
Ordering Code	BLFHHLS20000000000	100MHPS010550P
