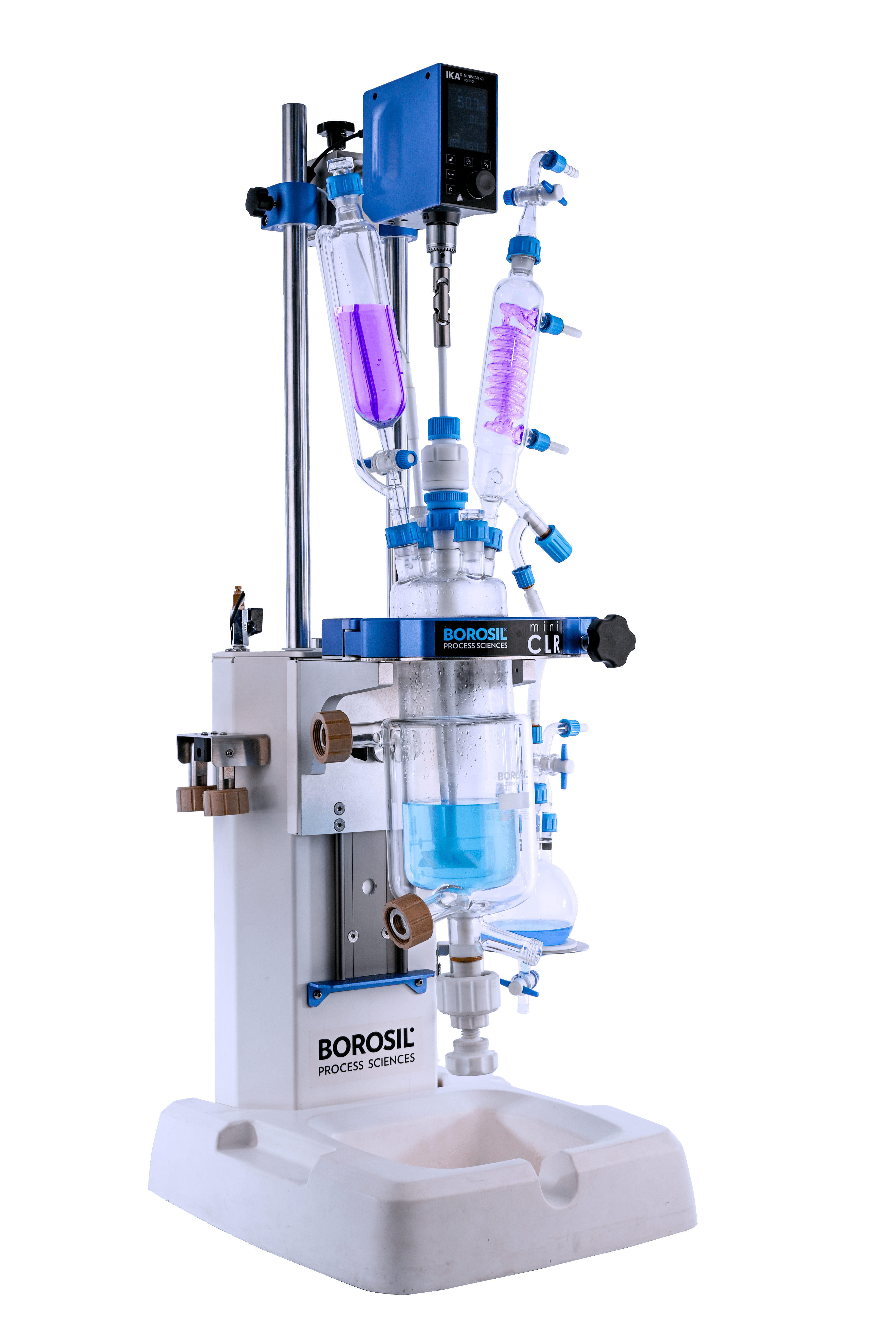

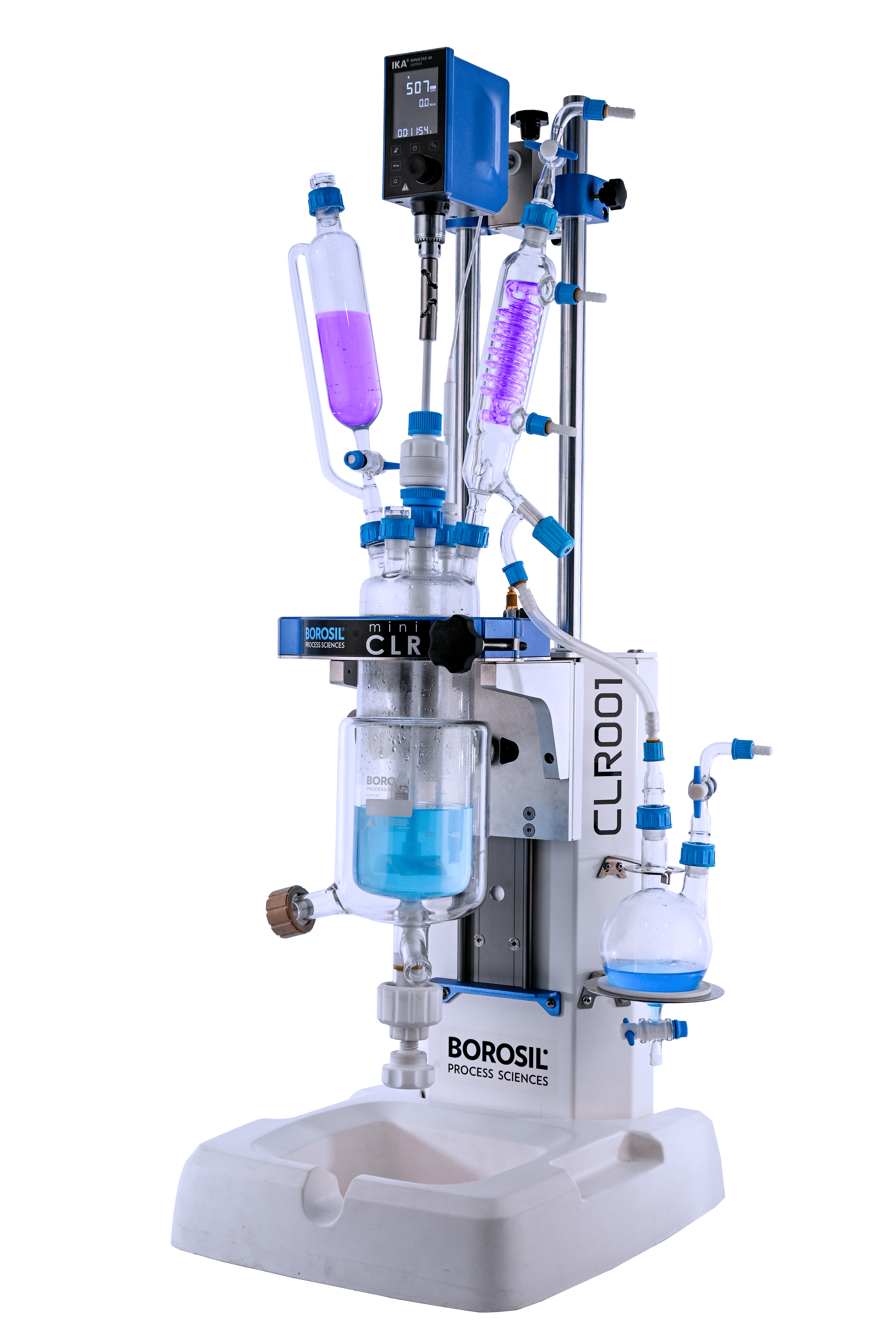

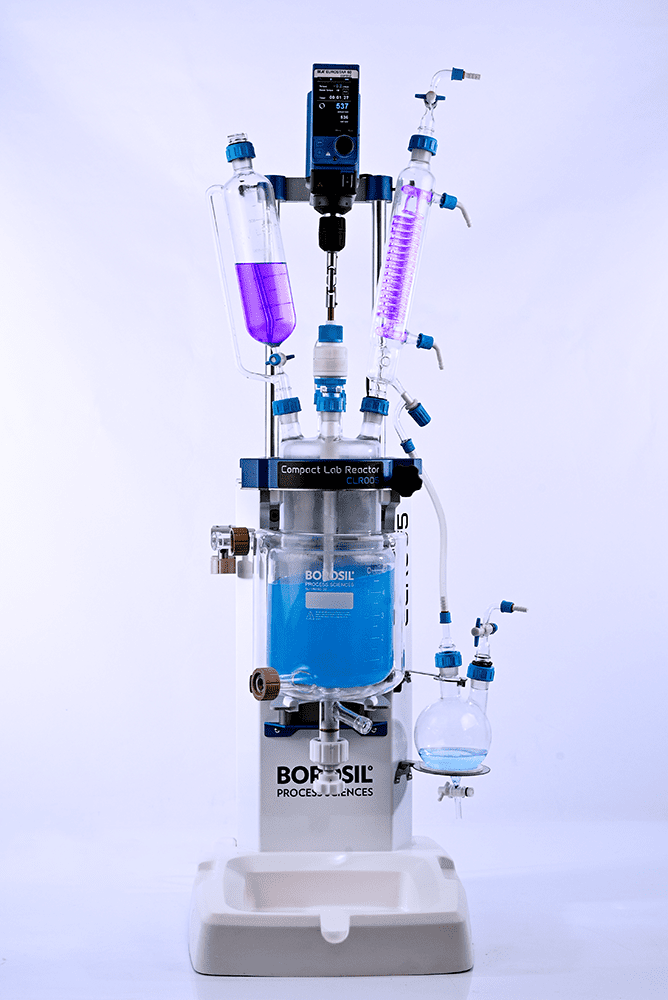

PRIME – Compact Lab Reactor

Golden proportion for scalable performance

Introducing PRIME, a premium compact lab reactor designed for unmatched performance and seamless user experience. With its precise 1.25 L/D ratio, it mirrors the efficiency of pilot and plant-scale reactions, ensuring optimal mixing every time. Built with advanced reaction systems, PRIME outperforms imported alternatives by offering improved usability and superior handling.  The unified neck clamp eliminates tedious neck rings, making loading, washing, and handling remarkably easy. Designed for those who demand excellence, PRIME redefines what a compact lab reactor should be – efficient, user-friendly, and undeniably premium.

Product Code : MLR
Easy Stirrer Drive Adjustment
Our innovative stirrer lifting design and easy clamping simplifies the alignment of the motor to an unprecedented degree

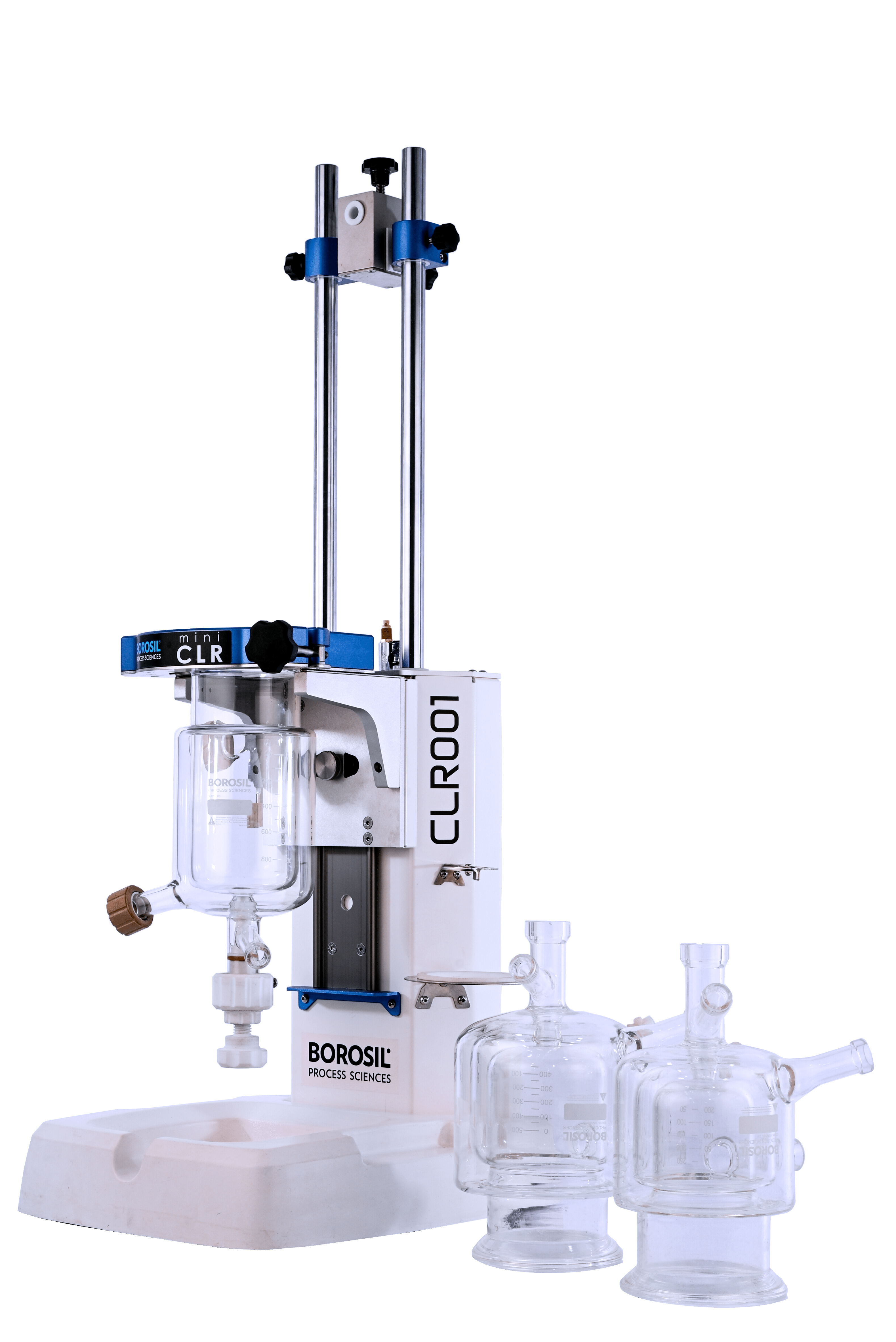

Hassle-free vessel change and clamping
Recognizing the inquisitive nature of chemists and scientists in their pursuit of results, we have designed a vessel neck that facilitates prompt and effortless vessel replacement
Hose Clip and Support Structure (HCSS)
HCSS helps to keep the tubing of the system organized and in place during experiments allowing users to secure and organize the various tubing lines that are connected to the system. The HCSS feature is particularly useful for complex experiments that require multiple tubing lines, such as those involving multiple reagents or solvents

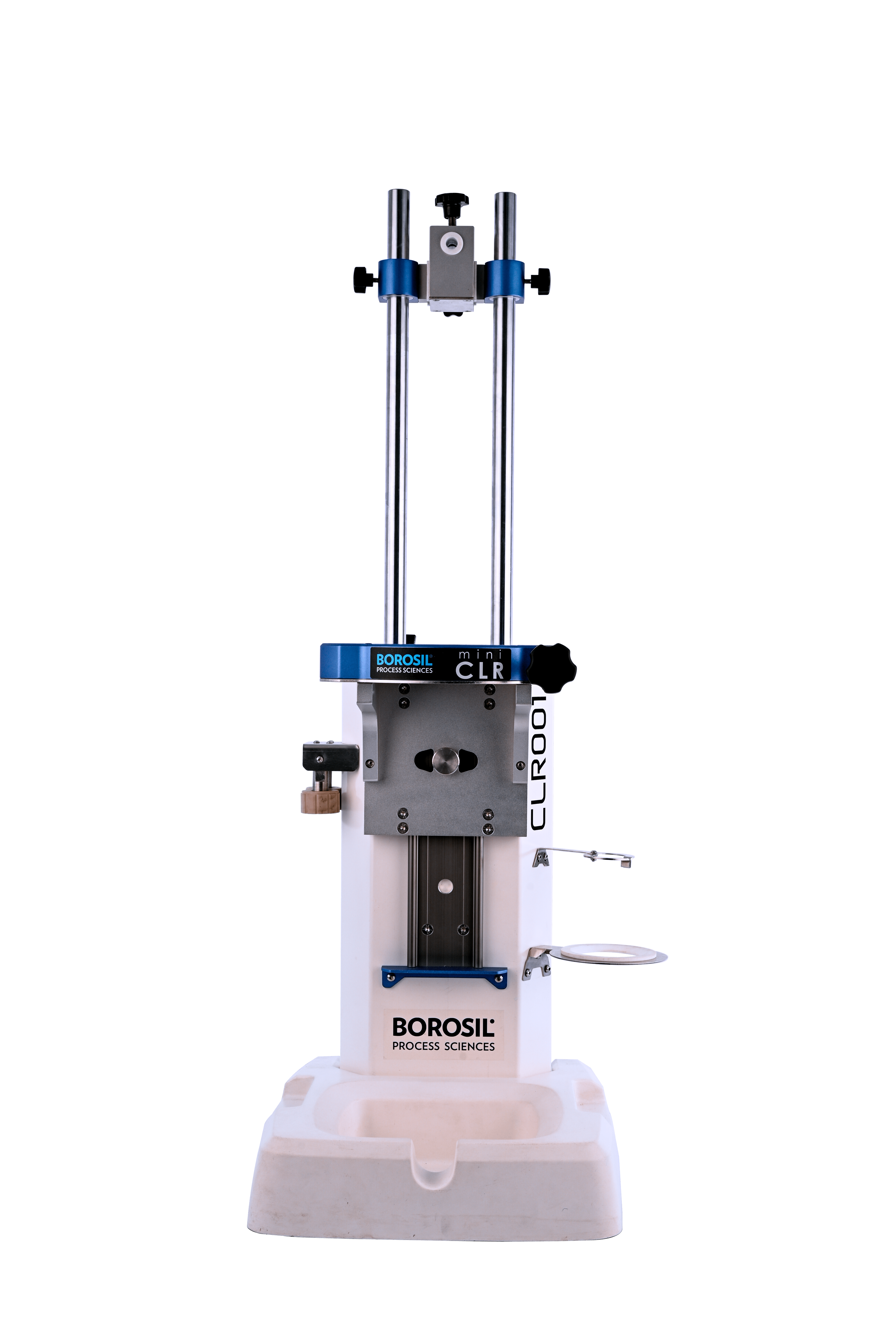

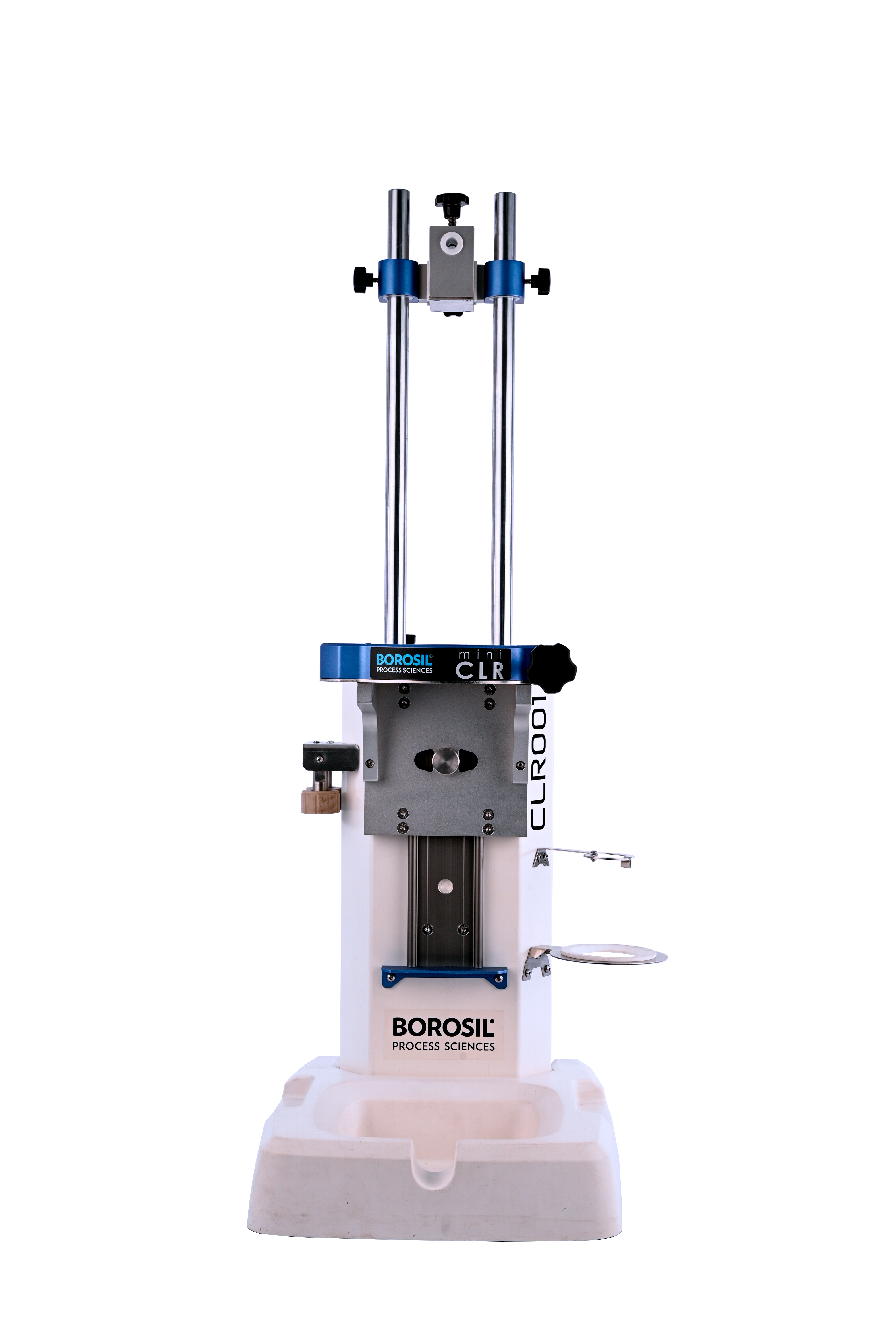

Effortless Height Adjustment
Revolutionize your research process with our lab reactor's cutting-edge vessel height adjustment feature. Our innovative design allows you to fine-tune the vessel height with unparalleled convenience, providing the flexibility you need to optimize workflows with ease
Efficient Spill Management
The drip tray, designed to fit seamlessly beneath the glass reactor, efficiently collects any accidental spills, ensuring a clean and safe working environment
Prime 001
Part Code Temperature DegC Pressure barg Flange Dia L x B x H mm Volume
BLMRCLR250XJ000000 -40 C to 200 Vacuum to 0.5 DN 100 500 x 550 x 1200 250 ML
BLMRCLR500XJ000000 -40 C to 200 Vacuum to 0.5 DN 100 500 x 550 x 1200 500 ML
BLMRCLR750XJ000000 -40 C to 200 Vacuum to 0.5 DN 100 500 x 550 x 1200 750 ML
BLMRCLR001XJ000000 -40 C to 200 Vacuum to 0.5 DN 100 500 x 550 x 1200 1000 ML
Prime 005
Product Code Temperature DegC Pressure barg Flange Dia L x B x H mm Volume
BLMRCLR002XJ000000 -40 C to 200 Vacuum to 0.5 DN 150 560 x 550 x 1300 2L
BLMRCLR003XJ000000 -40 C to 200 Vacuum to 0.5 DN 150 560 x 550 x 1300 3L
BLMRCLR005XJ000000 -40 C to 200 Vacuum to 0.5 DN 150 560 x 550 x 1300 5L
