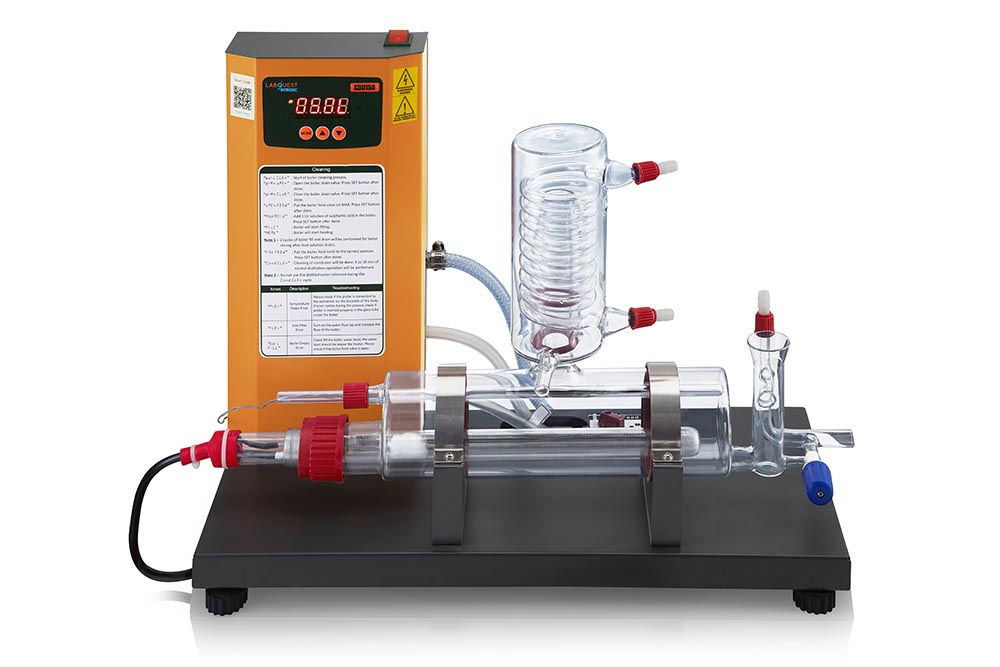

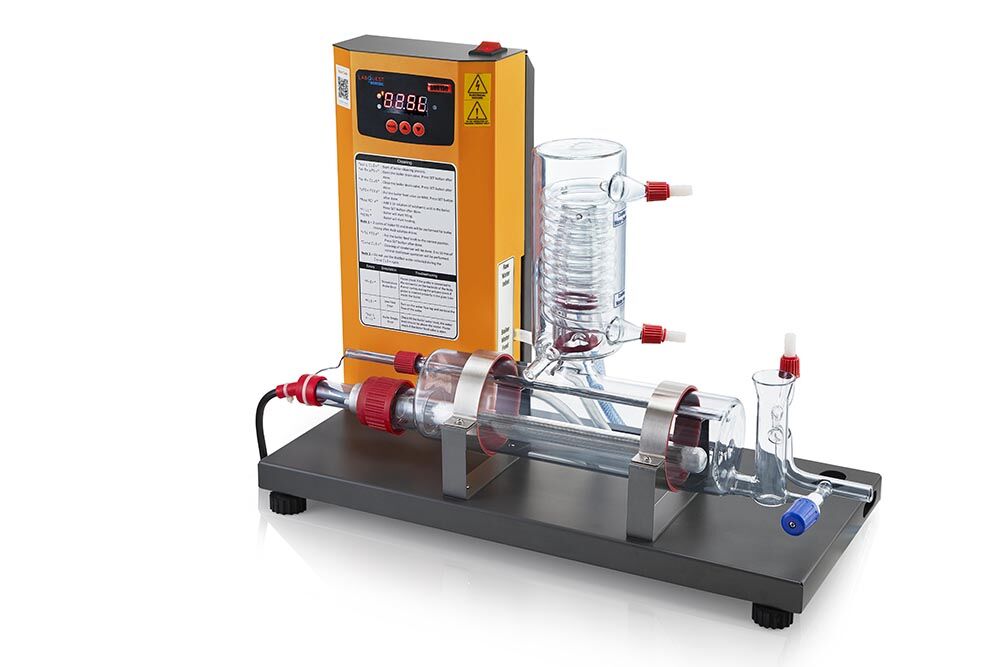

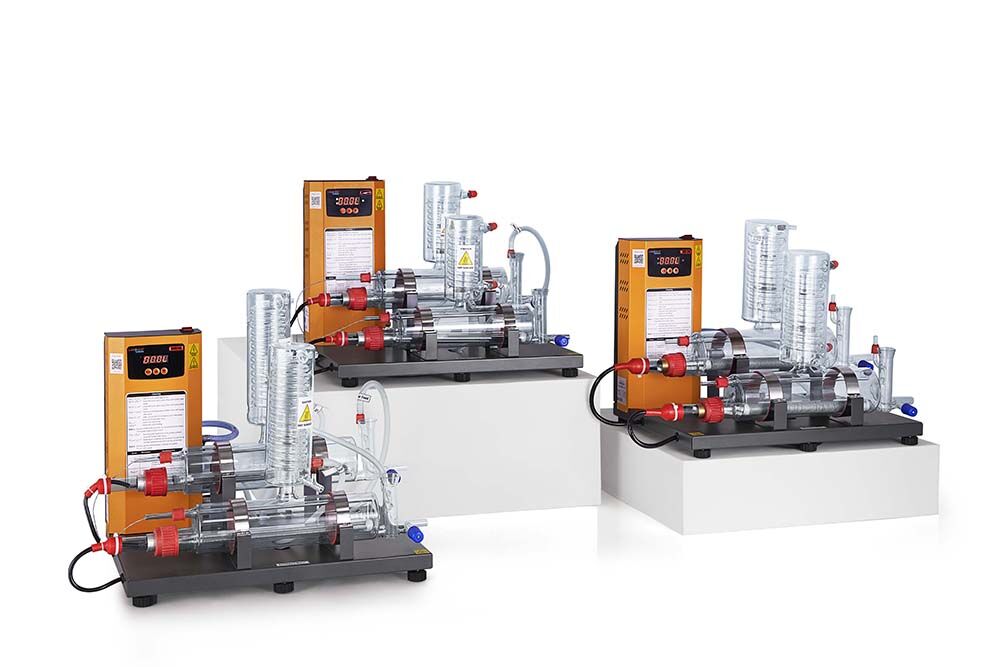

On demand Single Distillation Unit

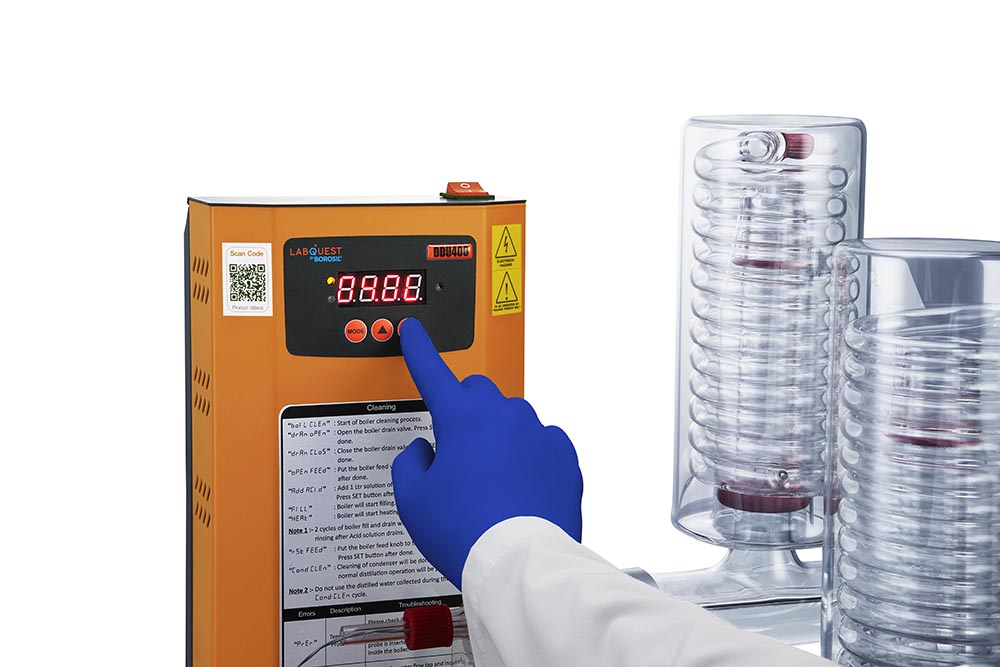

USER PRESET : Simply PresetThe quantity of distilled water required . Automatic shut off after producing the set volume, saving chemist’s time, power and water consumption.

COUNTDOWN TIMER that estimates the time to collect desired volume.
Digital alerts to alert the user.

The AUTO CUT OFF system which will alert the user of any malfunction like disruption in feed water supply / probe errors / heater failure and safely shut off.

TEMPERATURE SENSOR offer overheat protection. A temperature sensor feedback checks for sufficient water level in the boiler and indicates with a buzzer turning the heater will turn off. Also displays an error message safely ending the process.

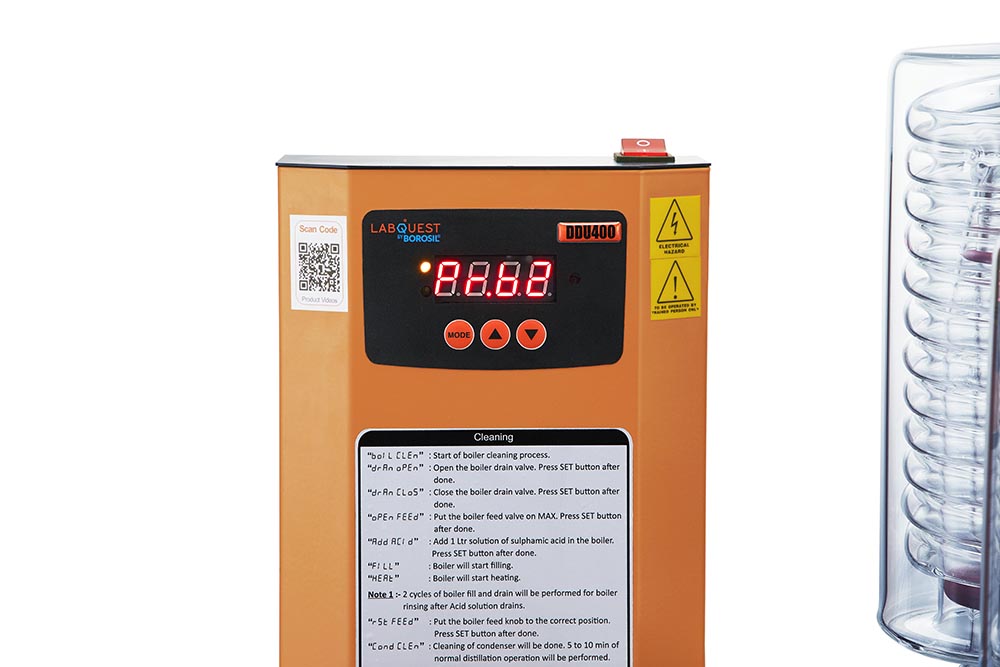

The Built – in CLEANING GUIDE helps the user clean any sediment deposition in simple steps. THREADED JOINTS for leak free operation.

Capacity Distilled Water Output	1.5 LPH	2.5LPH	4LPH
Minimum cooling water requirement (Ltr/min)	1	1.5	2
Heater	Quartz	Quartz	Quartz
Boiler	Boro 3.3	Boro 3.3	Boro 3.3
Condenser	Boro 3.3	Boro 3.3	Boro 3.3
Biological Activity	Pyrogen Free	Pyrogen Free	Pyrogen Free
Conductivity S/cm	<3 x 10-6	<3 x 10-6	<3 x 10-6
Power consumption (kw)	1.5kW	2.2kW	3.5kW
Voltage (V)	230V	230V	230V
Dimensions in mm (L x B x H)	640 x 255 x 440mm	650 x 255 x 440mm	650 x 255 x 440mm
HSN Code	84194090	84194090	84194090
Ordering Information	BLFRSDU15000000000	BLFRSDU25000000000	BLFRSDU40000000000
