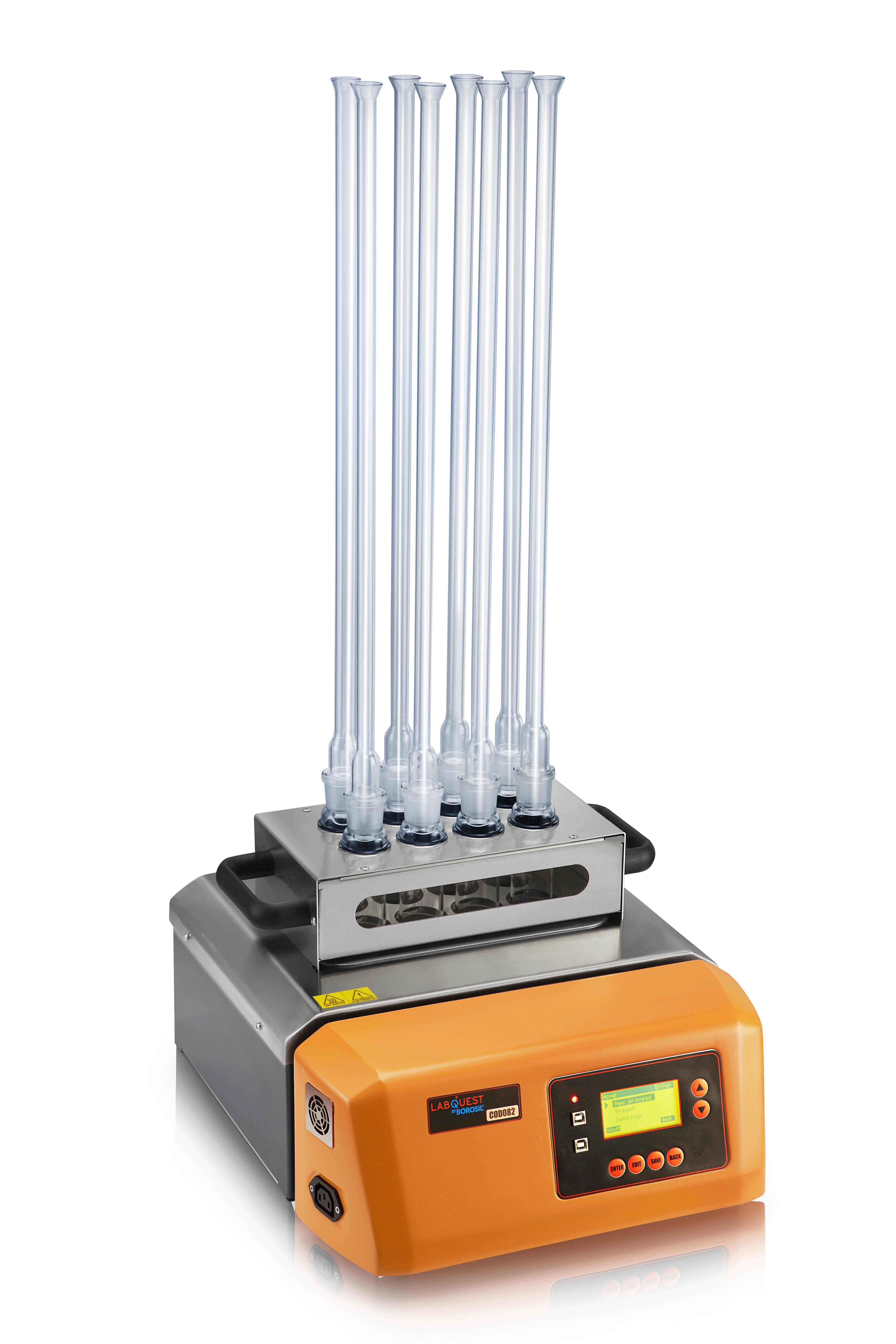

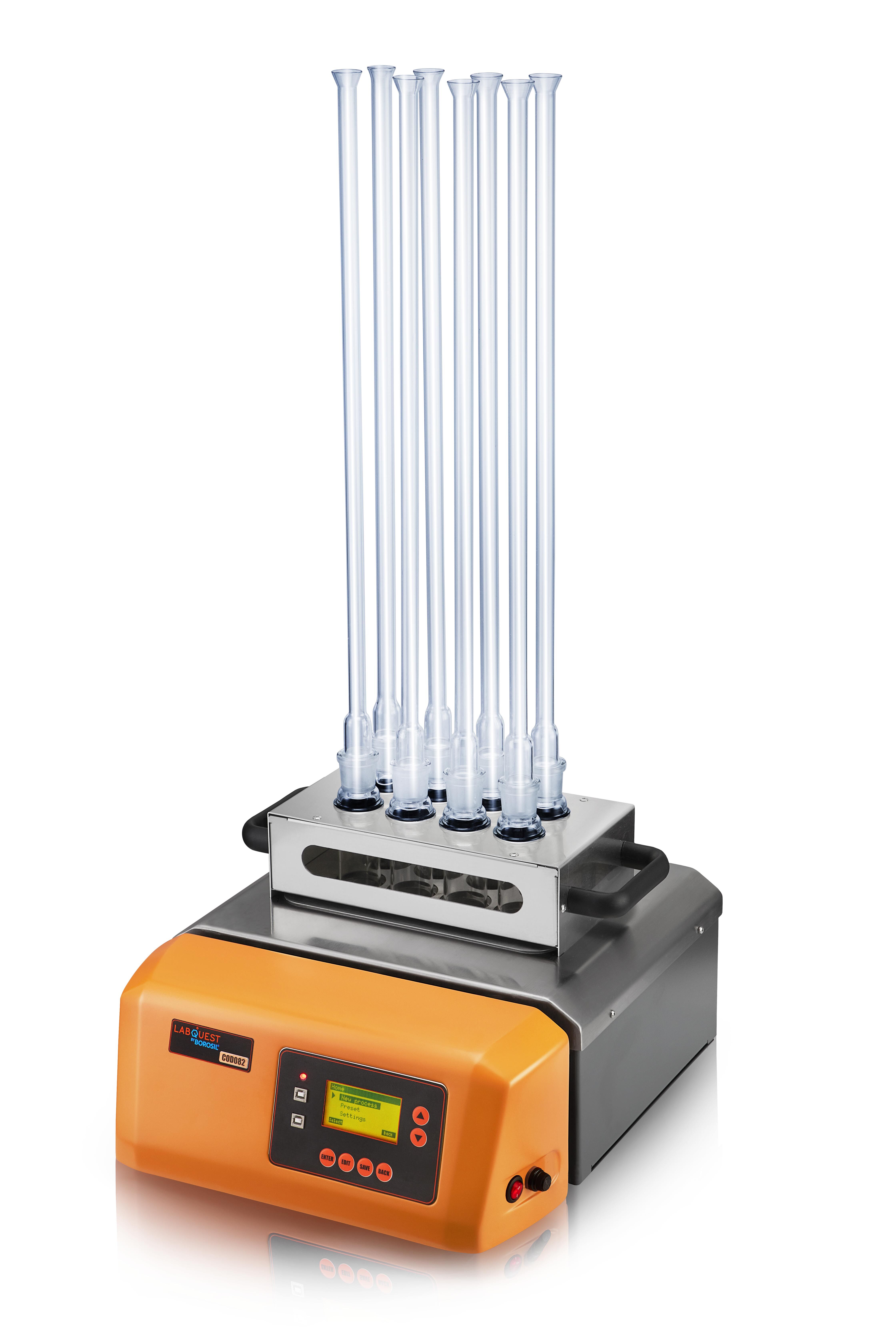

Open Reflux COD Digesters

Open reflux COD digesters can be operated over a wide range of temperatures and organic loading rates, making them adaptable to various types of industrial wastewater and sludge compositions.They are undoubtedly the best solutions for water analysis.

Product Code : COD082/COD152

Efficient Heating and Graphical Temperature Monitoring

- Allows temperature up to 180°C. Rapid heating heats the block heats from 20 to 160°C in less than 20 minutes
- Continuous graphical monitoring of time & temperature along with display of set and actual values

Safe Operation with Insulated Block and Overheat Protection

- The insulated heater block of the COD reactor series ensures no skin contact with the heater block
- Temperature overheat sensors provided prevent overheating

Automated Process and Alert System for Hands-Free Operation

- Auto process off after achieving set time
- No process monitoring as end of cycle audible buzzer alerts the user after completion of the process

Model No	COD082	COD152
Reflux Type	Open	Open
Positions	08 Position	15 Position
Capacity	250 ml X 08 tubes	250 ml X 15 tubes
Heating Block	Aluminium	Aluminium
Temperature Range	Ambient to 180°C	Ambient to 180°C
Temperature Accuracy	±1°C	±1°C
Display	Graphic LCD	Graphic LCD
Graphical representation of time and temp	Yes	Yes
Two point factory calibration	Yes	Yes
PID autotune	Yes	Yes
User presets	Yes	Yes
Process Timer	0-999 min	0-999 min
Temperature Control	Yes with Set value and Present value	Yes with Set value and Present value
Time Control	Yes with Set value and Present value	Yes with Set value and Present value
Connectivity to Printer	Yes (upgradeable)	Yes (upgradeable)
Connectivity to USB	Yes (upgradeable)	Yes (upgradeable)
Power consumptions	1400W	1800 W
Current Consumption	6 A	8 A
Unit External Dimensions (WxDxH)	(414 x 414 x 283) mm	(414 x 427 x 283) mm
HSN Code	84194090	84194090
Ordering Code	BLFACOD08200000000	BLFACOD15200000000
