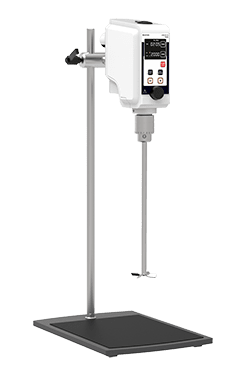

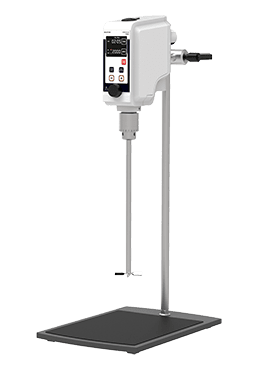

Overhead Stirrer

We present a range of overhead stirrers designed for stirring and mixing tasks in the laboratory, catering to low to high viscosities. Overhead stirrers are crafted to meet the diverse needs of laboratory applications, providing reliable and efficient solutions for stirring and mixing tasks. BLDC, Microprocessor, Compact, Overload Protection

Product Code : OHS

High Volume range

Stirring quantities of up to 100 liters

Advanced technology

- Brushless DC motor & Micro-processor controlled technology
- Reversible mixing Motions

Smart Design

Compact and totally enclosed casing for enhanced safety

Enhanced Safety and Convenience Features

- Adjustable push through impeller shaft to accommodate different heights/vessels
- Internal overload protection for added safety.

Model	OHS15	OHS20	OHS40	OHS50	OHS75	OHS100
Stirring quantity max [L / H2O]	20L	25L	40L	50L	75L	100L
Speed range [rpm]	50-1000	50-2000	50-1000	60-2000	60-2000	60-1300
Max Torque [N-cm]	15Ncm	20Ncm	40Ncm	50Ncm	75Ncm	100Ncm
Max Viscosity	8000mPas	10000mPas	30000mPas	30000mPas	50000mPas	70000mPas
Motor	BLDC	BLDC	BLDC	BLDC	BLDC	BLDC
Power	24V/36W	24V/36W	24V/36W	24V/72W	24V/72W	24V/72W
Change of Rotation Direction	Yes	Yes	Yes	Yes	Yes	Yes
Speed / Timer Display	Digital LED	Digital LED	Digital LED	Digital LED	Digital LED	Digital LED
Impeller Adjustment	Push Through	Push Through	Push Through	Push Through	Push Through	Push Through
Overload Protection	Yes	Yes	Yes	Yes	Yes	Yes
Over Temperature Protection	Yes	Yes	Yes	Yes	Yes	Yes
Auto Resume - Power Interruption	Yes	Yes	Yes	Yes	Yes	Yes
Smart Control Feature	Yes	Yes	Yes	Yes	Yes	Yes
IP Rating	IP54	IP54	IP54	IP42	IP43	IP44
Chuck range diameter [mm]	1-10mm	1-10mm	1-10mm	1-10mm	1-10mm	1-10mm
Timer	1-99min OR Continuous	1-99min OR Continuous	1-99min OR Continuous	1-99min OR Continuous	1-99min OR Continuous	1-99min OR Continuous
Dimensions (L x W x H) [mm]	176X173X79	176X173X79	176X173X79	102X242X249	102X242X249	102X242X249
