Primelab 2.0

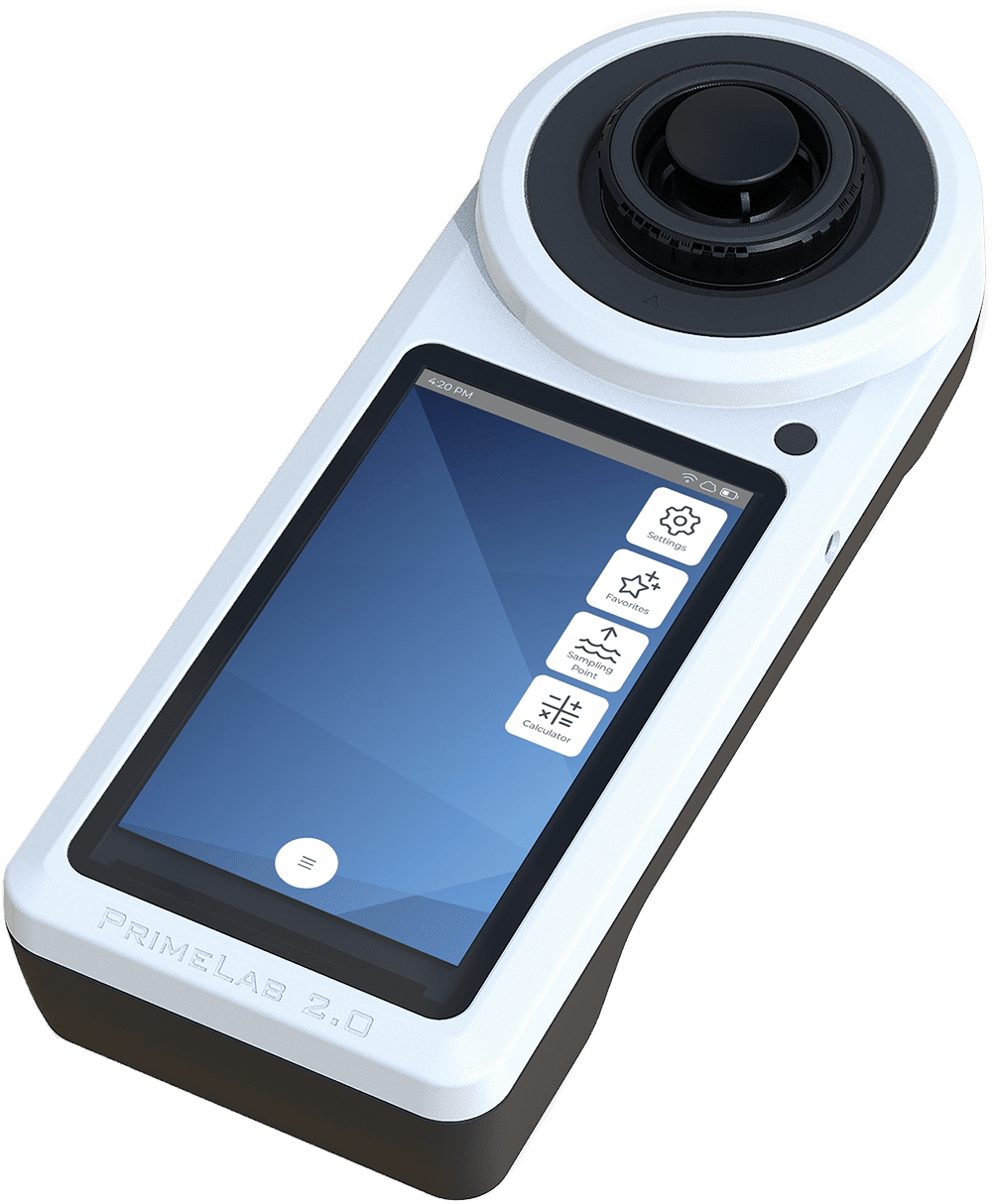

Analyze water parameters anytime, anywhere with portable photometer. Featuring advanced optics and sensor technology, the Handheld Photometer delivers accurate and repeatable measurements for water testing

Product Code : 100PL02B

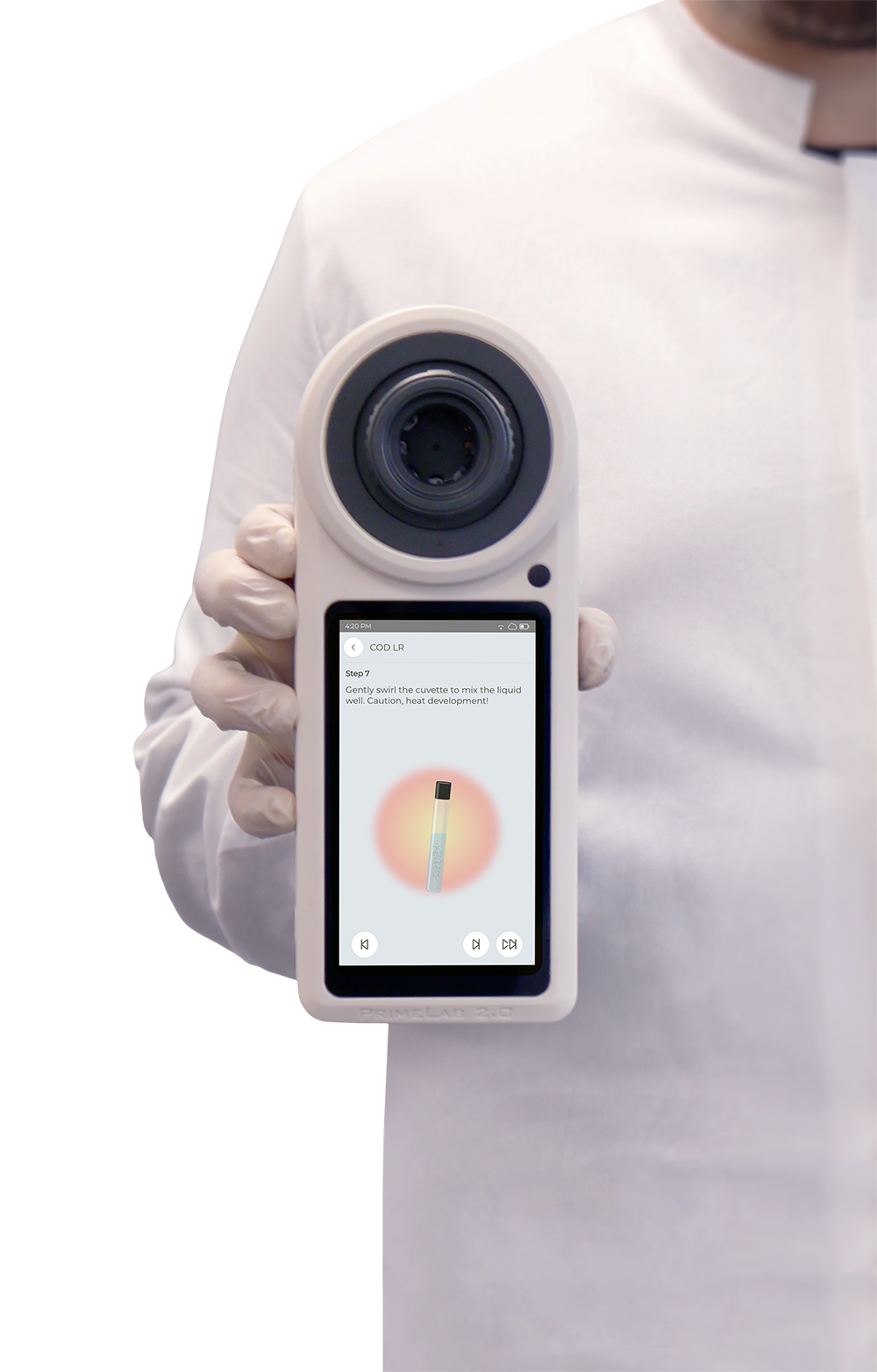

Advanced HD Touchscreen with Interactive Instructions

Interactive user interface with 5.5‘’ HD Colour touchscreen and step-by step instructions with animations

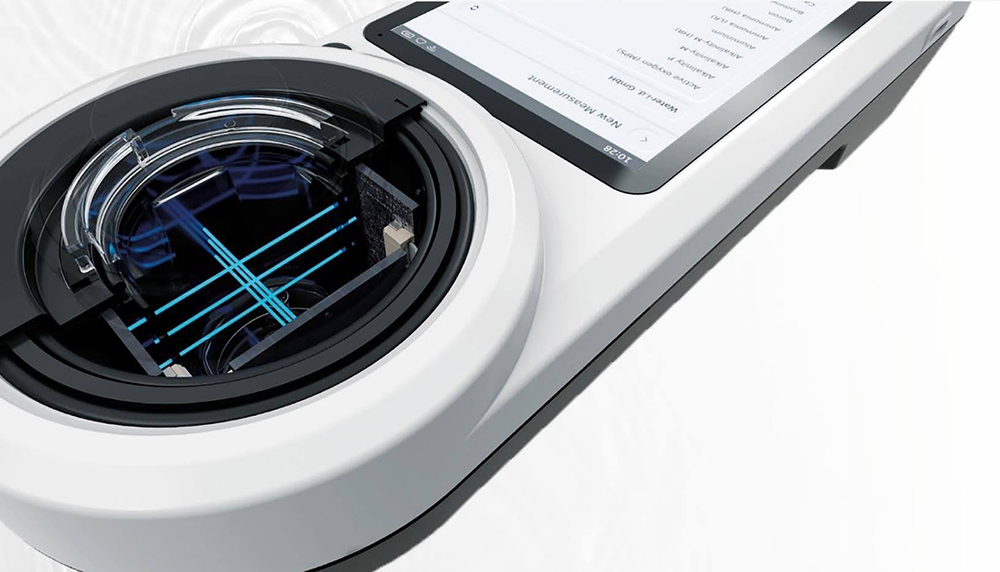

Extensive Precision with Multi-Lamp Coverage

Accuracy and wide coverage of over 140 parameters with 3 inbuilt lamps (18 Wavelengths)

WiFi-Enabled Data Transfer and Software Updates

Connectivity through Wifi (Wireless lan) for
1. Data transfer (LabCOM®)
2. Software Updates
3. Use the Wlan Hotspot to connect to a smartphone

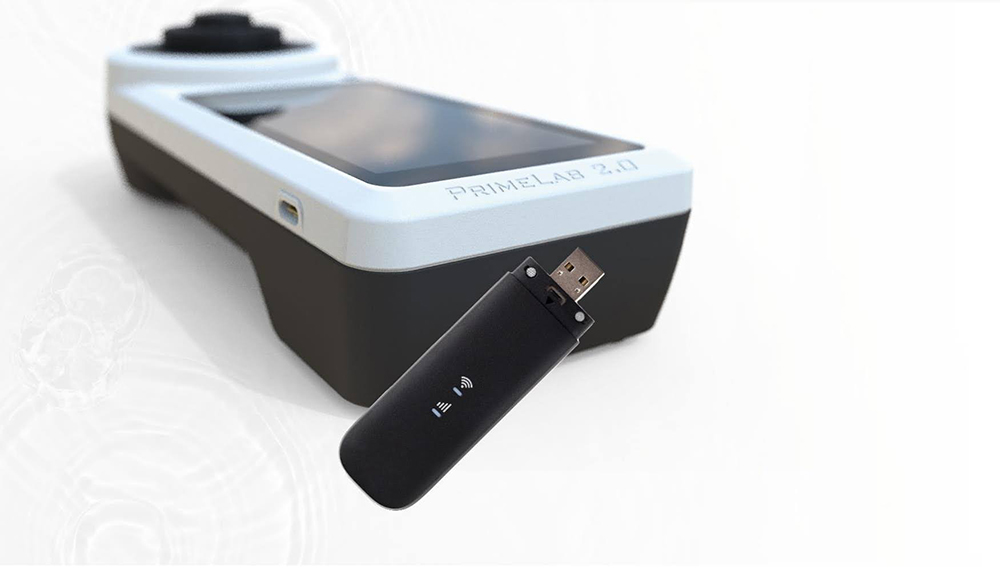

Throught 4/5G (modem) for
1. Data transfer (LabCOM®)
2. Software Updates

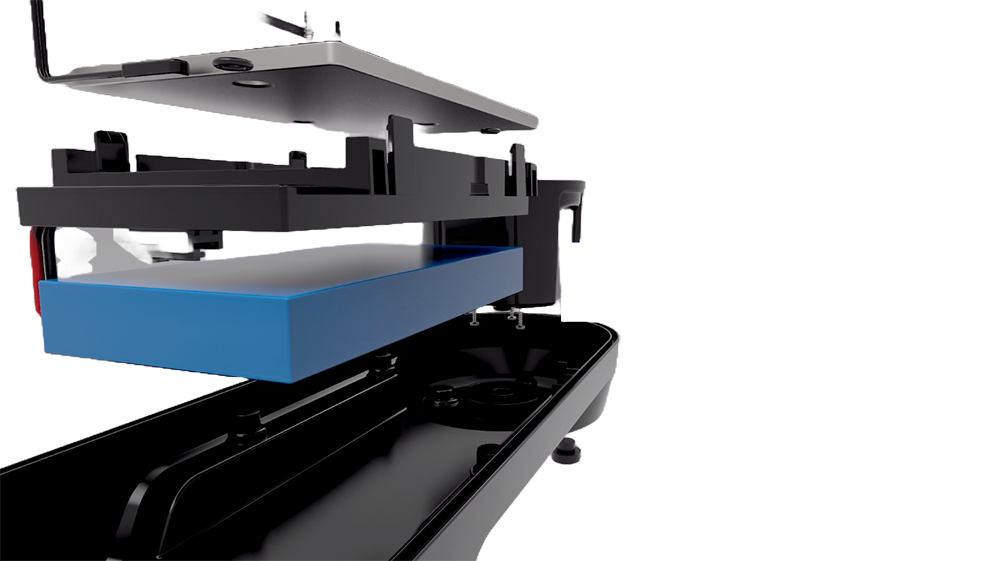

High-Capacity iron battery

Extra strong rechargeable 8400 mAh iron battery

Streamlined Reagent Tracking and Sampling

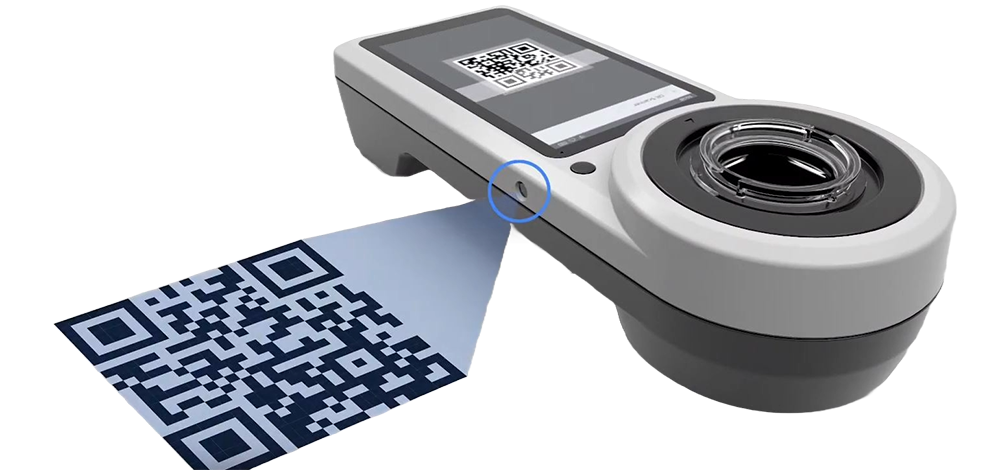

QR- Code Scanner for reagents and scanning at sampling points

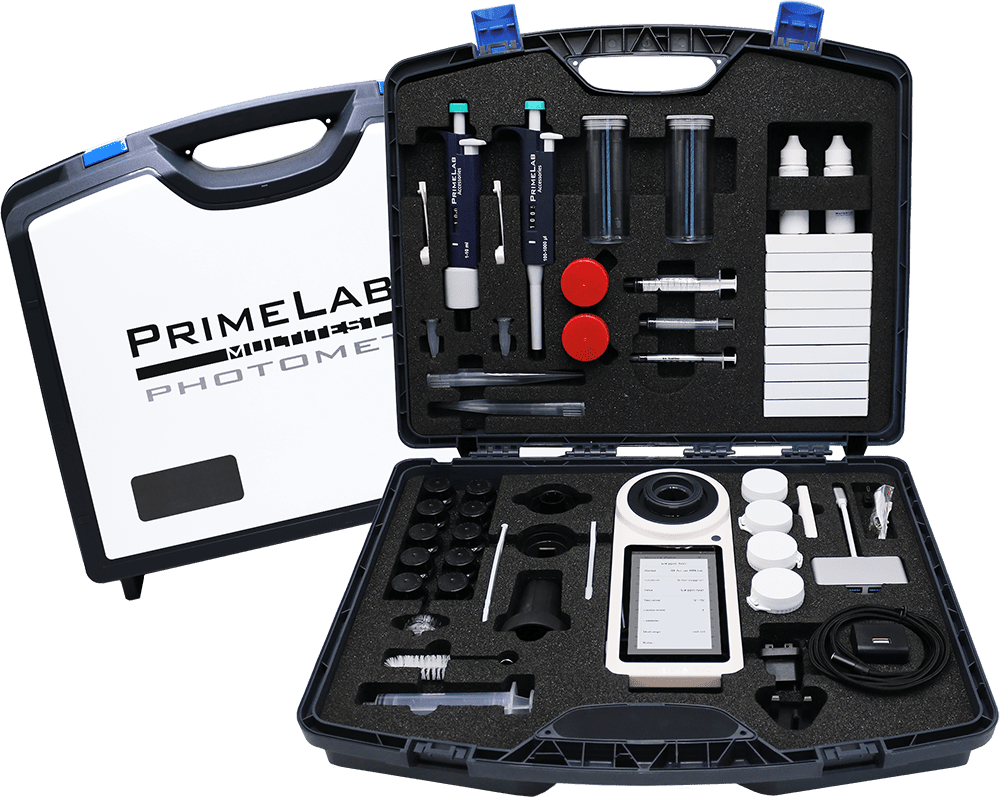

Flexible Probes and Cuvettes for Wide-Ranging Tests

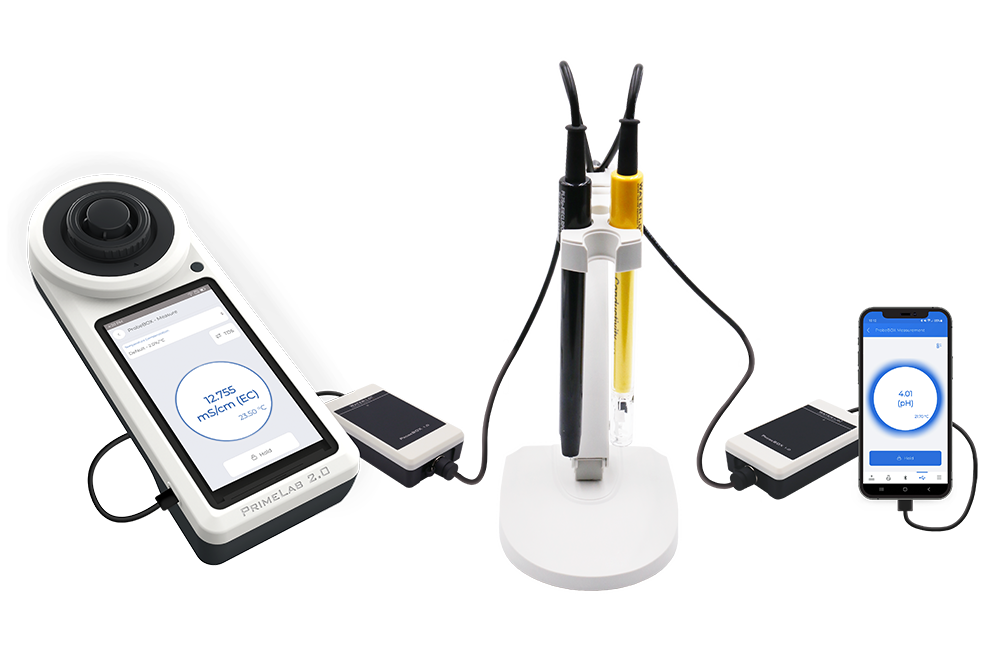

- Probes to connect for pH, EC, TDS, Temp, ORP determinations

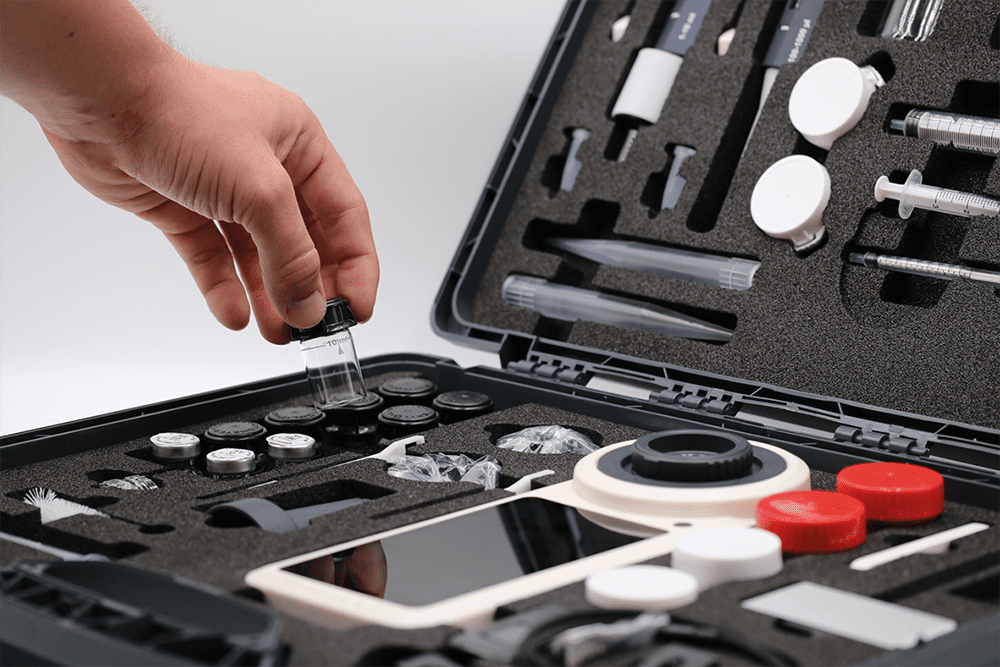

- Cuvettes with adapters for 24mm, 16mm & 1ml capacities widening the scope of usage

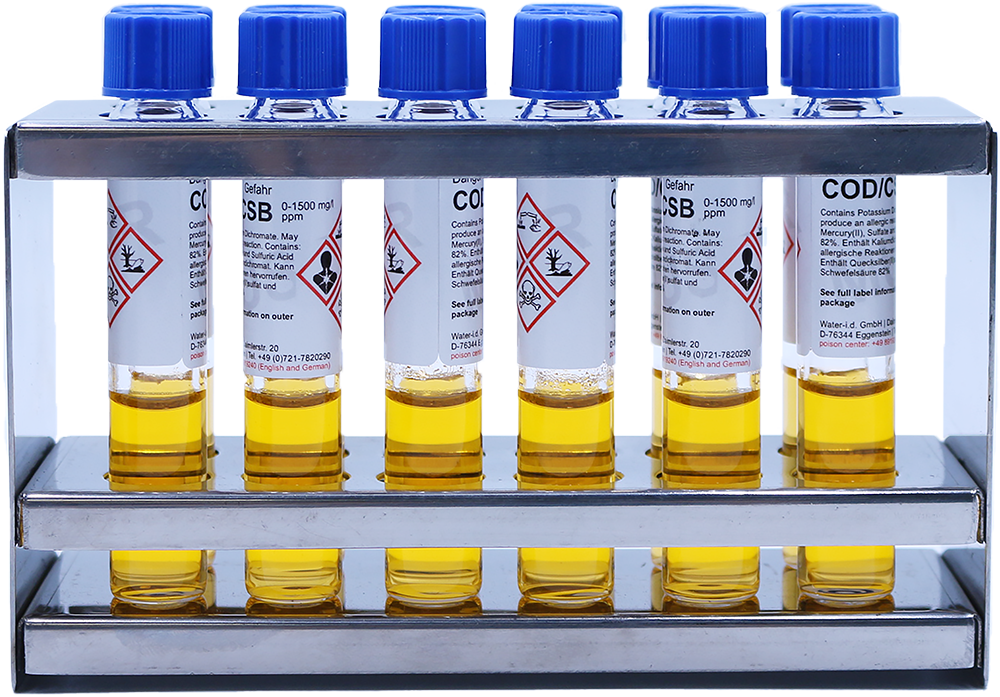

Durable Reagents in Multiple Forms for Broad Testing

Long shelf life reagents available in Tablets, Powder, Liquids, Tube Tests for analysis of more than 140 parameters

Model Name	Prime Lab 2.0
Spectral range	390nm - 950nm 18 wavelength, peaks at 410/435/460/485/510/535/560/ 585/610/645/680/705/730/760/810/860/900/940nm 180° and 90° Setup for direct and indirect measurement
Parameters	more than 140 parameters
Electrodes	USB-type-C connector for pH/ EC/ TDS/ ORP/ Temp-Probes
Connectivity (technical)	Bluetooth 4.2 WiFi USB (type C) 4G* (via USB-modem)
Connectivity (software)	LabCOM Software (Windows / Mac) LabCOM App (Android / iOS) LabCOM Cloud (web-browser)
Display	5.5" Color-HD touch display
Camera	In-build barcode / QR-code scanner
Calibration	Auto-calibration function with certificate (software)
One-Time-Zero	Inteligent OTZ (One-Time-Zero) function with recognition of ZERO types
Internal memory	>5,000
Clock/Date	RTC (Real-Time-Clock) with calendar function
Auto-Off	Factory default setting = 10 minutes. Individual adjustment possible
Menu guidance	Intuitive, display-controlled 4-button menu guidance; test instructions during measurement process
Power supply	8,500 mA Li-lo-battery
Languages	>15
Environment	5°C - 45°C / 30 - 90% rel. humidity
Water-proof rating	The device is splash-water-proof (IP54)
Reagents	The calibration curves for the individual parameters / measurement procedures are adjusted to the reagents offered with the unit.
Weight	715g
Dimensions (W X D X H)mm	100 x 59 X 255
HS Code	90275000
Ordering Code	100PL02B000000
