Quanta Pro/ Quanta Promax

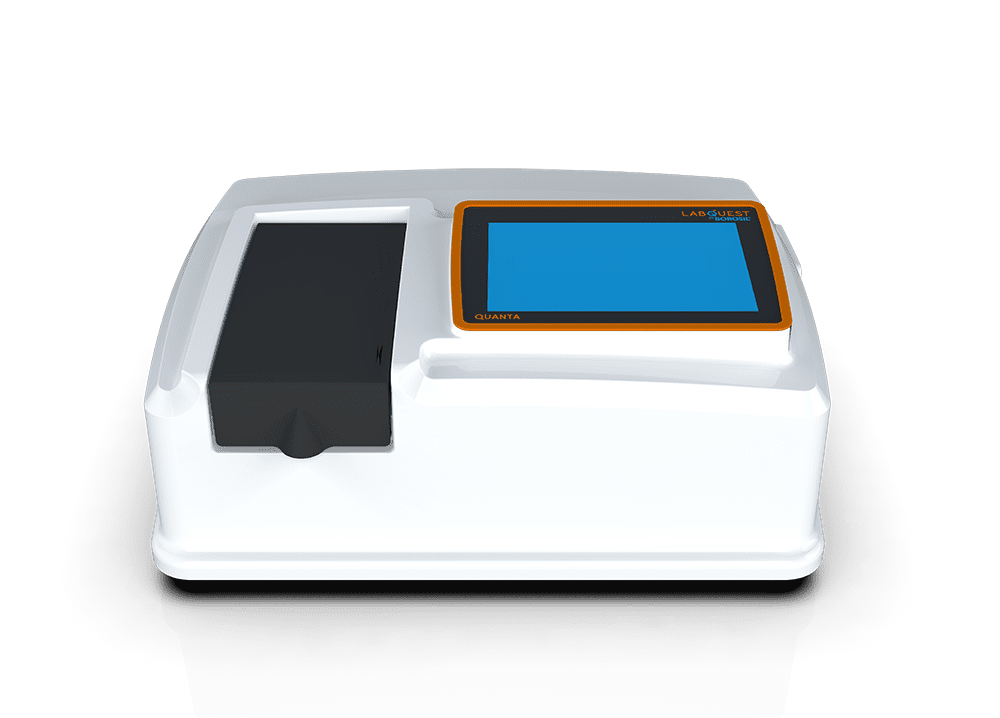

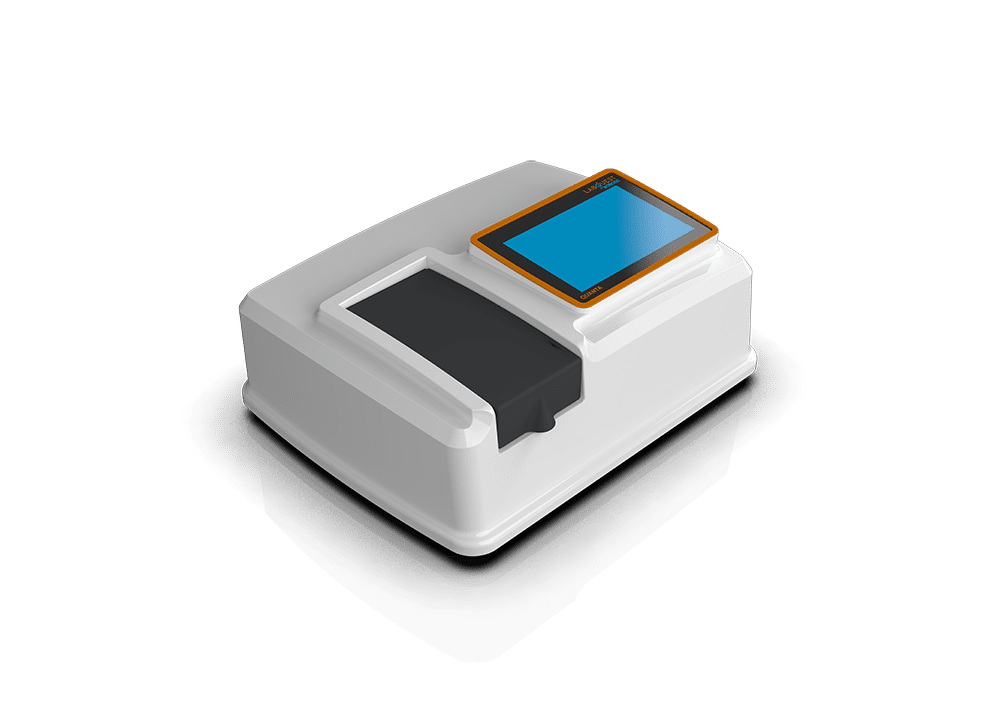

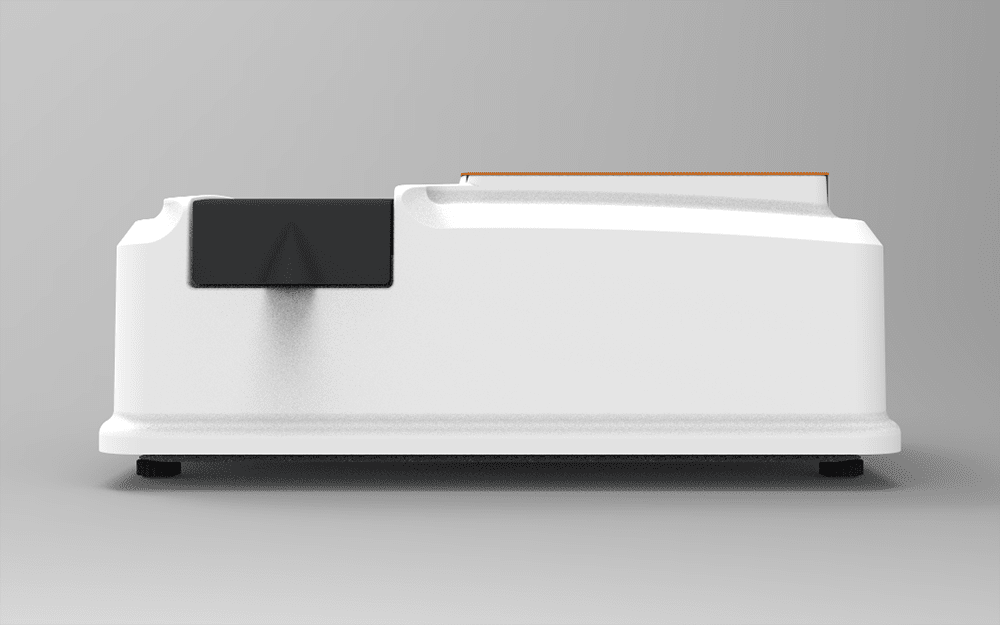

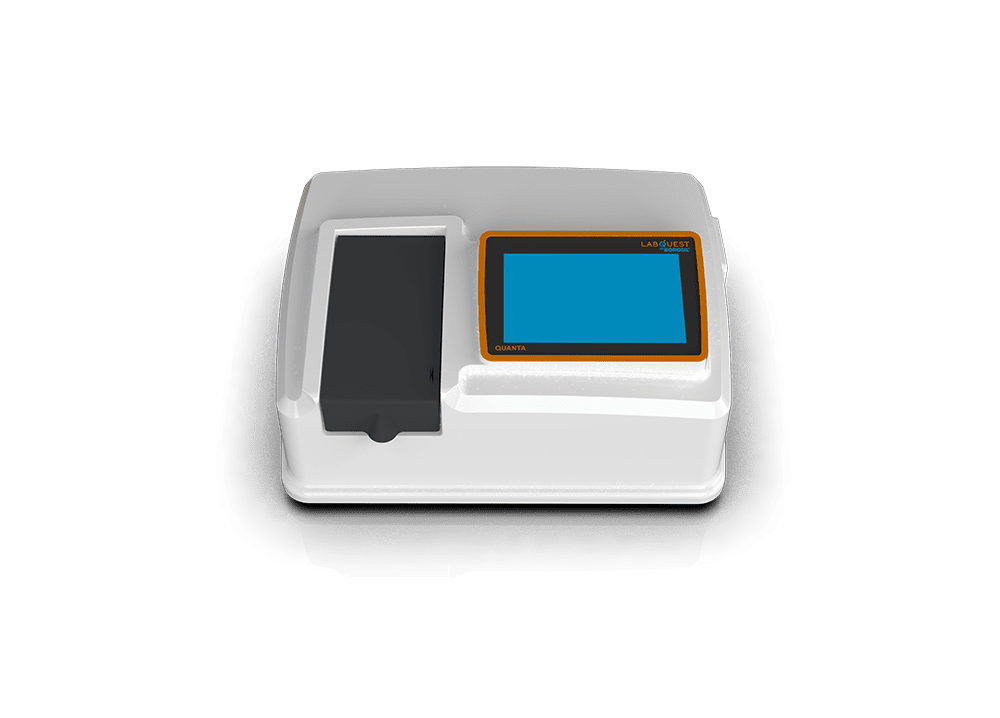

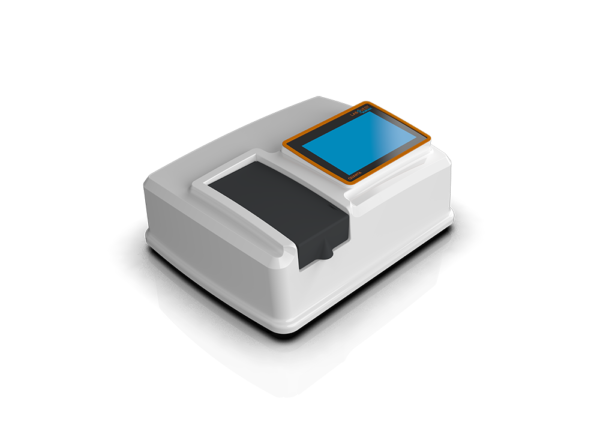

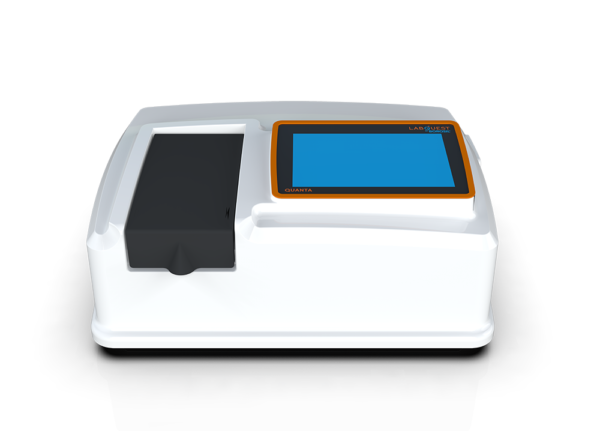

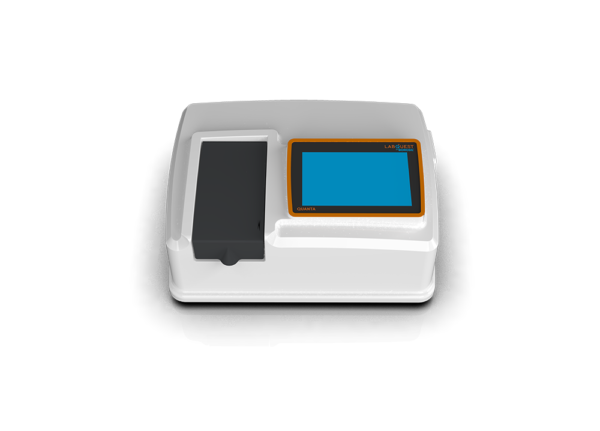

Quanta Pro/ Quanta Promax

The Quanta Pro and Promax series of UV visible spectrophotometers are powered with high sensitivity, accuracy, and reproducibility Applications finds way as an invaluable tool for quantitative and qualitative analysis in environmental analysis, research laboratories, chemistry and educational institutions.

Product Code : 100UVVAR/ 100UVFIX
image not found Request a Quote
image not found Find a Dealer
High-Resolution Spectrometer with Wireless and User-Friendly Features
  1. Wavelength range of 180 to 1,100 nm with Resolution of 0.1nm for fixed and upto 4.0nm for variable configuration
  2. Inbuilt Desktop OS based PC with high resoluon multipoint capactive screen
  3. Inbuilt Wi-Fi support. Run analysis from Laptop, Tablet without connectivity anywhere!
  4. Pre-aligned optics allow easy lamp change operation. Large sample compartment to accommodate various path length cuvettes
  5. Automatic changeover of wavelength with configurable wavelength
  6. A 10 inch user-friendly interface, advanced software, and robust design ensures reliable and precise measurements, making it an essential instrument for scientific exploration and industrial applications
Parameter Qunta Pro Qunta Promax
Colored Touch Screen Display 10inch 10inch
Photometric system True Double beam Optics True Double beam Optics
UV/Vis Bandwidth Type Fixed Variable
Wavelength range 190 to 1100 nm 180 to 1100 nm
UV/Vis Bandwidth Increments (nm) 1 nm 0.1 nm to 5.0 nm
Wavelength Setting 0.1nm increments 0.1nm increments
Wavelength Display Resolution (nm) 0.1nm 0.1nm
Measuring Modes ABS, %T, CONC with custom K-Factor and multiple standards ABS, %T, CONC with custom K-Factor and multiple standards
Wavelength Accuracy +/-0.05nm @ 656.1nm +/-0.1nm entire range +/-0.1nm @ 656.1nm +/-0.1nm entire range
Wavelength Repeatability +/-0.1nm +/-0.1nm
Wavelength Slew rate About 29000 nm/min About 6000 nm/min
Wavelength Scan speed (nm/min) 3600 to 2nm/min for survey of 29000nm/min 4000 to 2nm/min
Lamp interchange wavelength Automatic changeover of wavelength with configurable wavelength. Automatic changeover of wavelength with configurable wavelength.
Stray light Less than 0.02% at 220nm (NaI) Less than 0.02% at 340nm (NaNO2) Less than 0.5% at 198nm (KCl) Less than 0.02% at 220nm (NaI) Less than 0.02% at 340nm (NaNO2) Less than 1.0% at 198nm (KCl)
Photometric readability range (Abs) Absorbance: -4.0 to 4.0 Abs Transmittance : 0% to 400% Absorbance: -4.0 to 4.0 Abs Transmittance : 0% to 400%
Photometric accuracy +/-0.002 Abs at 0.5 Abs '+/-0.004 Abs at 1.0 Abs '+/-0.006 Abs at 2.0 Abs +/-0.002 Abs at 0.8 Abs '+/-0.004 Abs at 1.2 Abs '+/-0.006 Abs at 2.1 Abs
Photometric repeatability Less than +/-0.001 Abs at 0.5Abs Less than +/-0.001 Abs at 1Abs Less than +/-0.003 Abs at 2Abs Less than +/-0.001 Abs at 0.8Abs Less than +/-0.001 Abs at 1.2Abs Less than +/-0.003 Abs at 2.1Abs
Baseline stability Less than 0.0002 Abs/Hr @700 nm(one hour after light source ON) Less than 0.0002 Abs/Hr @700 nm(one hour after light source ON)
Baseline flatness (±A) Less than +/-0.0005 Abs (avg. points)(1100 to 190nm, one hour after light source switched ON) Less than +/-0.0005 Abs (avg. points)(1100 to 190nm, one hour after light source switched ON)
Noise level Less than 0.00003 Abs (700nm) Less than 0.00005 Abs (700nm)
Light source Plug- in pre-aligned Halogen lamp and Deuterium lamp or Xenon Lamp Plug- in pre-aligned Tungsten Halogen lamp and UV Deuterium lamp
Monochromator Blazed holographic grating 1200 lines/mm in Czerny Turner mounting Blazed concave holographic grating 1200 lines/mm in Czerny Turner mounting
Detector Dual Silicon photodiode Dual matched silicon photodiode
Environmental requirements Temperature 15 to 38 Humidity 30% to 80% Temperature 15 to 38 Humidity 30% to 80%
Output device Inbuilt with desktop OS with high resolution 10inch touch screen LCD Inbuilt with desktop OS with high resolution 10inch touch screen LCD
Software Scanalyser software (Microsoft windows 7 and above) CFR 21 complaince Scanalyser software (Microsoft windows 7 and above) CFR 21 complaince
Validation Automatic measurement and pass/ fail evaluation and printing of results Automatic measurement and pass/ fail evaluation and printing of results
Connectivity LAN/ Ethernet/WiFi/Bluetooth LAN/ Ethernet/WiFi/Bluetooth
Sample compartment internal dimensions (W X D X H) mm 115 X 250 X 90 Distance between light beams :80mm 115 X 250 X 90 Distance between light beams :80mm
Dimensions (LxBxH) mm 560 X 430 X 195 556 X 486 X 236
Power Supply 230V/50Hz 230V/50Hz
Ordering Code 100UVFIX000000 100UVVAR000000
HS Code 90273020 90273020
Weight 22Kg 24Kg
