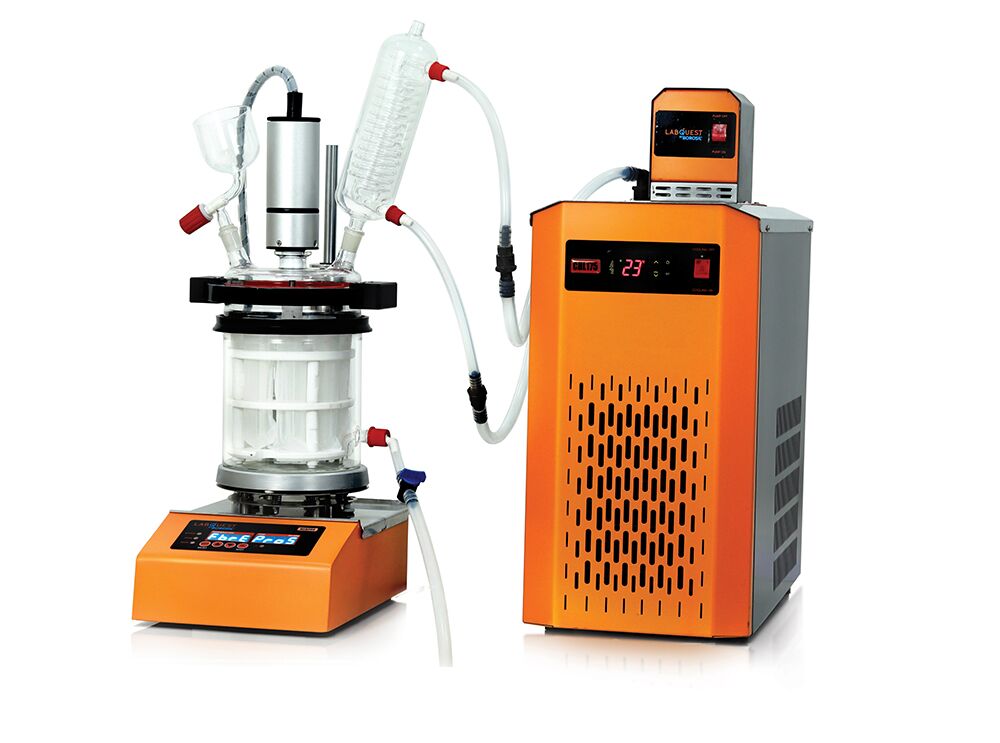

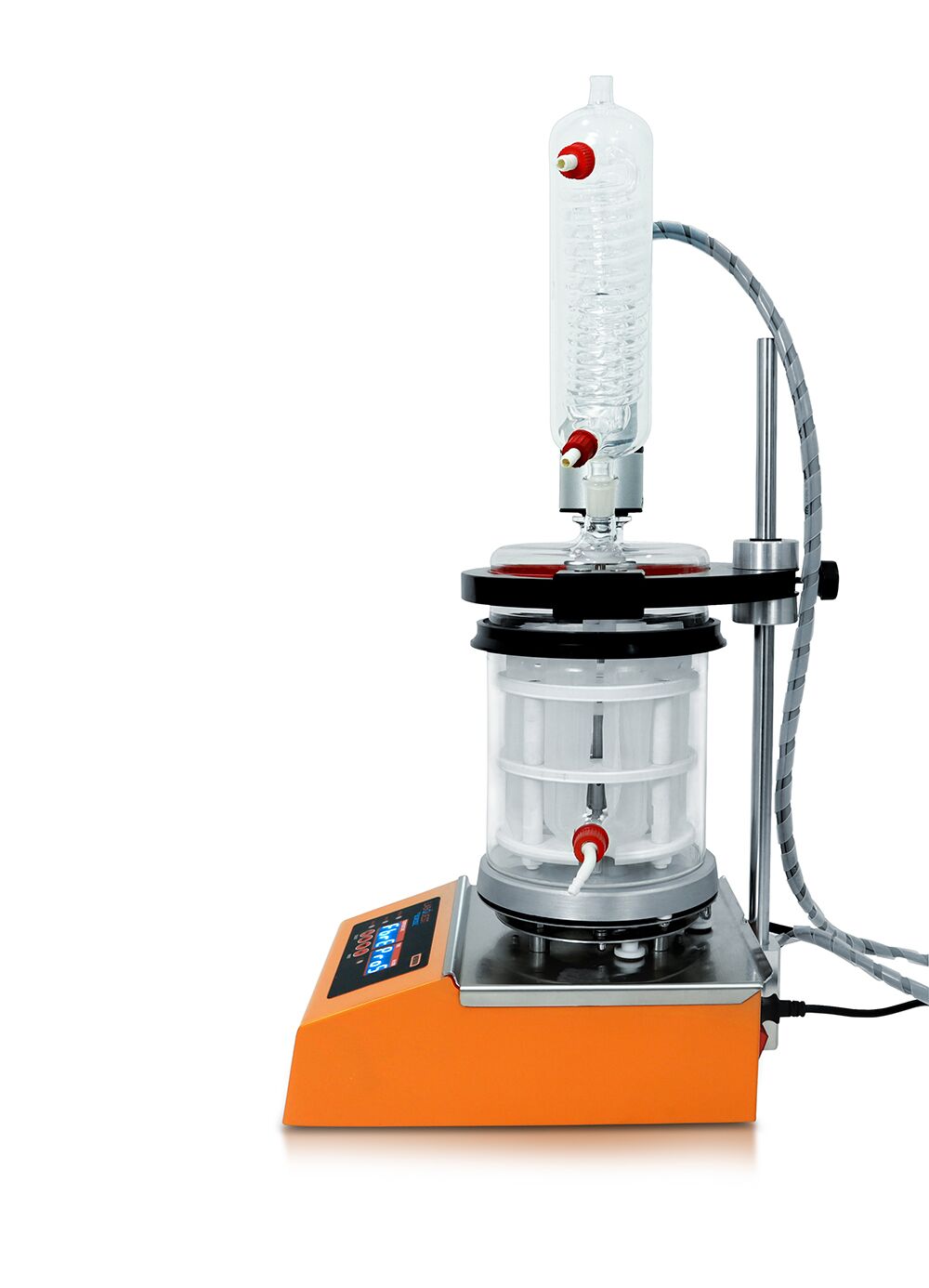

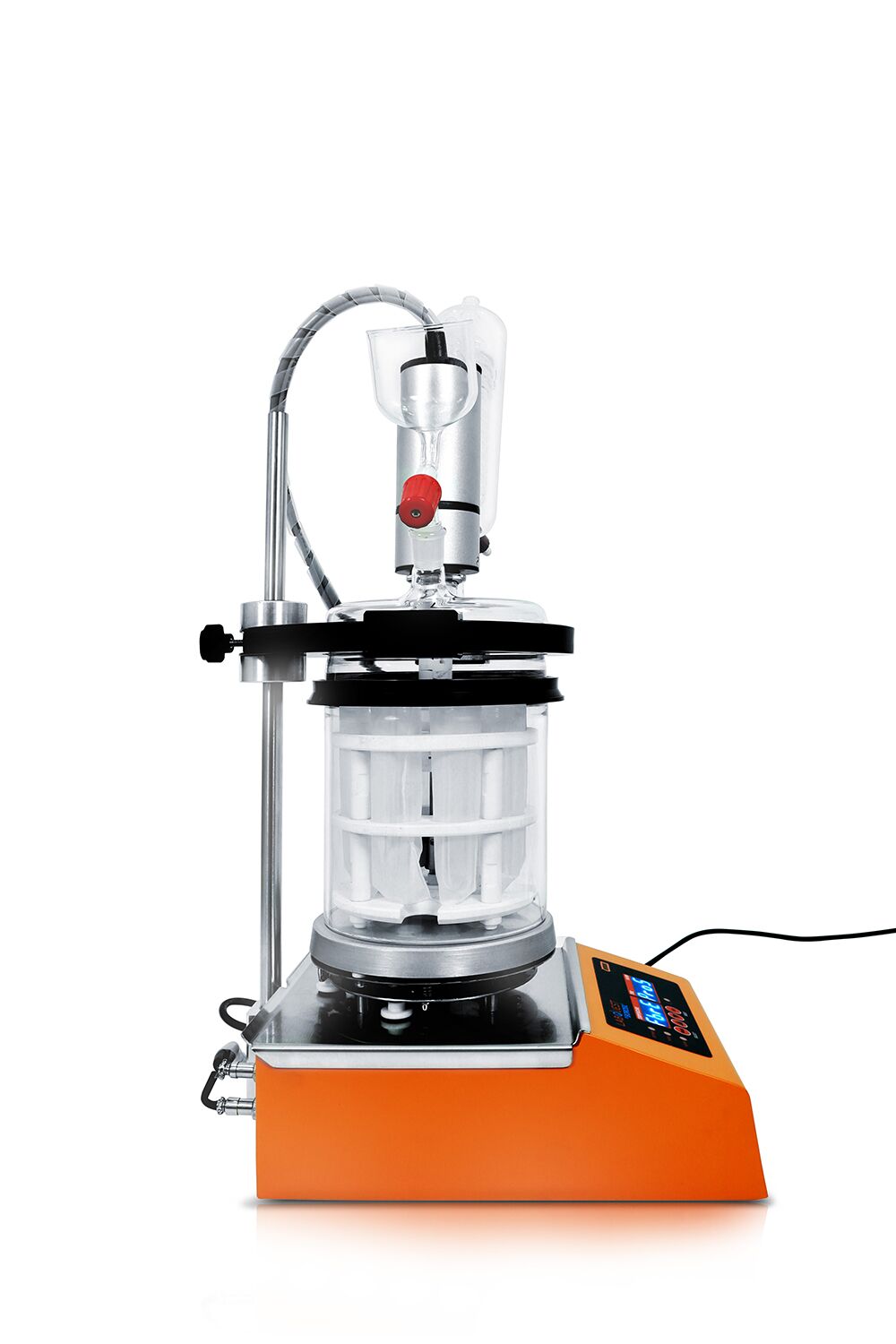

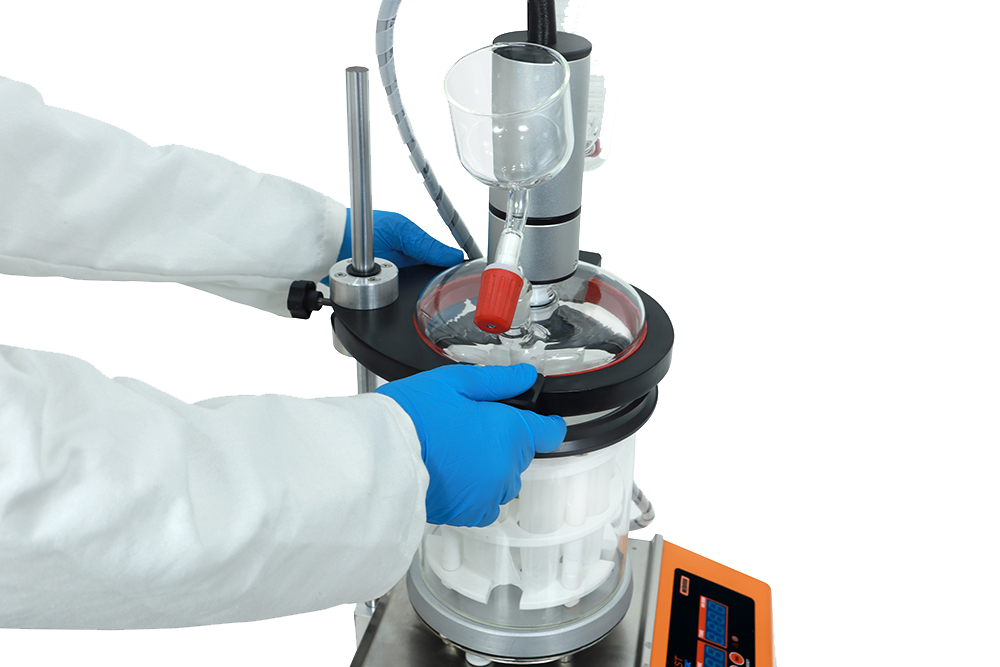

Rapid Fiber Analyser

Optimize results with the Rapid Fiber Analyzer. Transforming Fiber Analysis for Ease, Speed and Accuracy with Advanced Fiber Bag Technology

Product Code : BLFAMFB00800000000

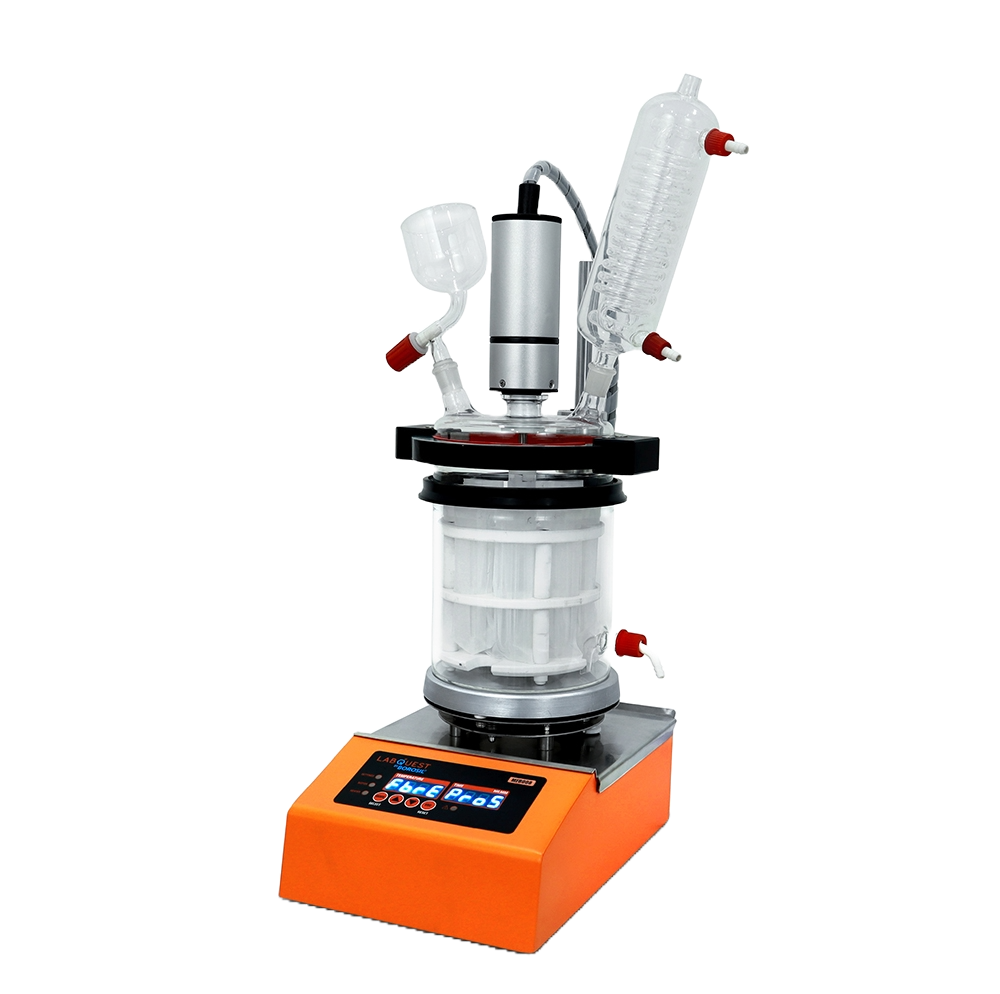

Fiber Bag Technology for Varied Conditions
Fiber Bag technology to determine the crude fiber, ADF, NDF and ADL content in feedstuffs.
Crossing over from controlled laboratory conditions to challenging production environments, Rapid Fiber Analyser demonstrates unwavering reliability, providing rapid, accurate, and consistent measurement outcomes.

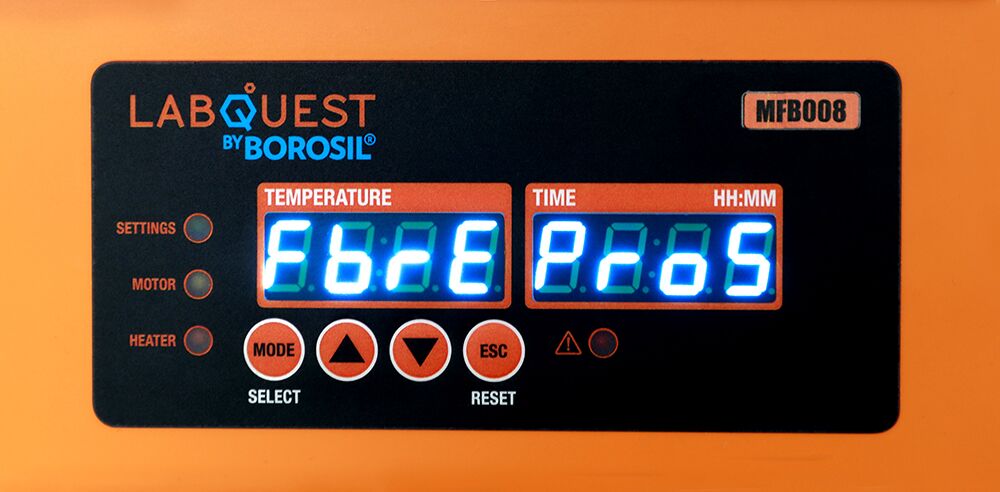

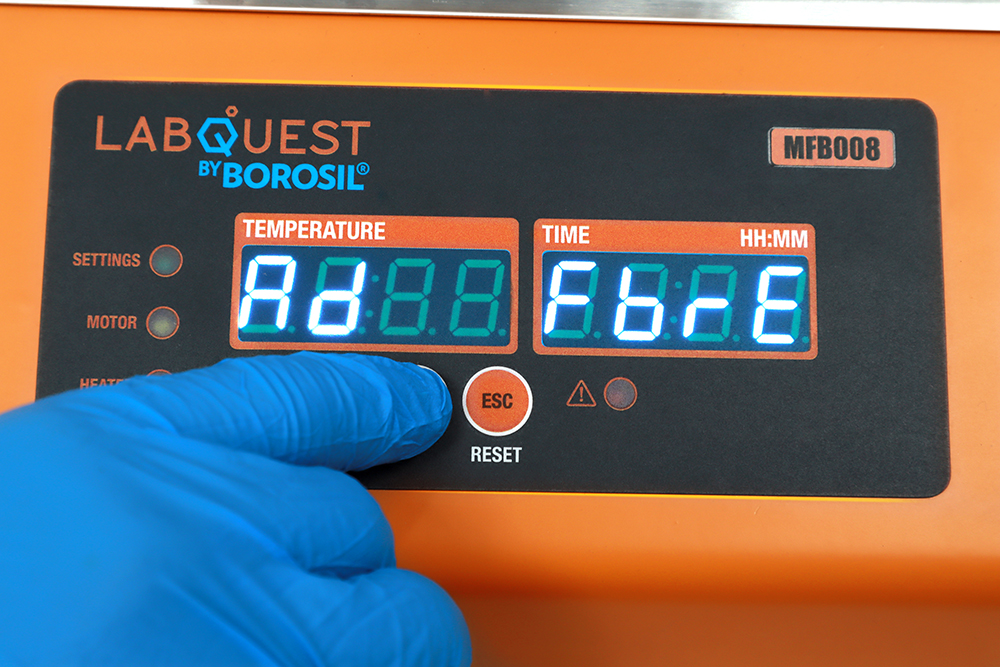

Adjustable Timings and Process Monitoring
- Easy Monitoring: An Intuitive LED Interface Enhances Process Setting Clarity and Data Tracking Efficiency.

- Customisable Time Settings: Users have the flexibility to adjust process timings to suit their specific needs, enhancing convenience and efficiency.

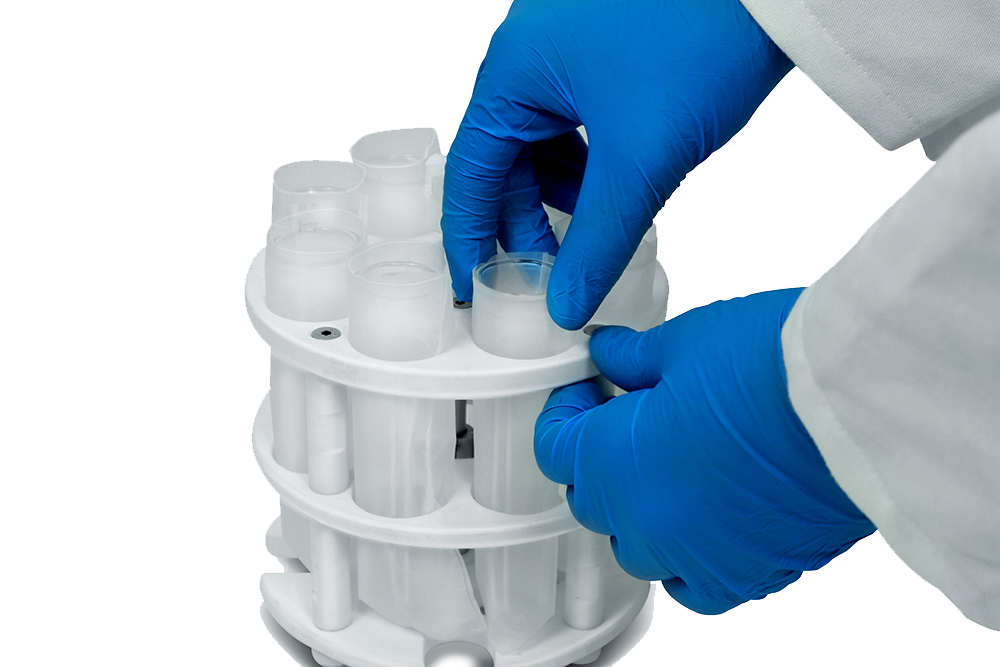

Space-Saving Design with High-speed Analysis
- 4 times faster than the traditional method
- Optimize throughput by analyzing 8 samples at once
- Compact design reducing bench space.

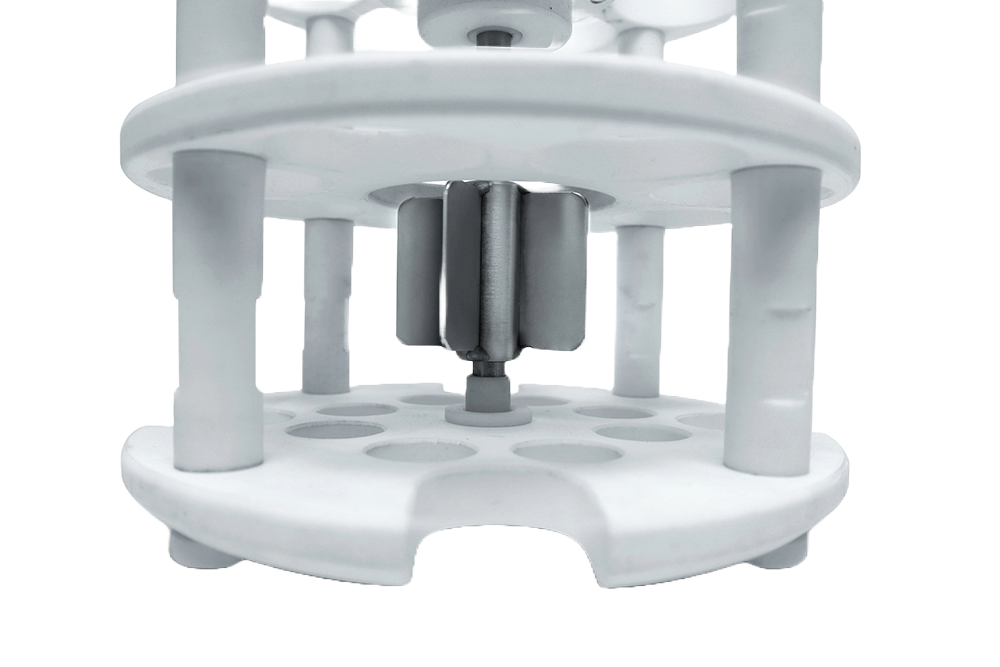

All-Fiber Analysis with Uniform Heat Transfer
- Universal & Adaptable: Analyzes any sample or any fiber fraction

- Optimal Heat Transfer: Efficient Stirrer Agitation Facilitates Uniform Distribution and Effective Washing
Seamless functionality
Comprehensive system effortlessly handles boiling, washing, and filtration processes without a hitch.
Model Name MFB008
No of positions 8
Method Fiber bag spacer
Sample size 0.5 - 3gm
Measuring Range 0.1 % - 100 %
Drop-in coupling Yes
Fiber bag material Nylon
Reproducibility <1%
Agitation Automatic
Stirrer type Radial flow stirrer
Beaker volume 3 L
Instrument process time 120 min
Reagent required per process (acid & alkali) 1.2 liter (approx)
Power supply 200 – 240 V 50 – 60 Hz
Total power consumption (W) 900 Watts
Dimensions (LxBxH in mm) 395 x 260 x 710
HSN Code 84198990
Ordering code BLFAMFB00800000000
