Recirculating Chiller

Recirculating Chiller

Product Code : CHL
- Recirculator system is designed to reduce energy consumption and maximize refrigerating efficiency
- Temperature range from -10°C to ambient -5 °C
- Ergonomic and compact design allows the instruments to be on desk at eye-level
- High cooling capacity up to 1kW at 20℃

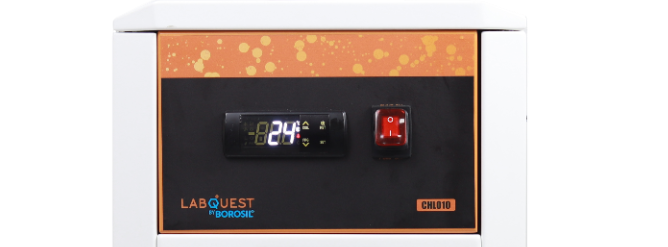

- Large, bright LED display with reliable microprocessor PID temperature control
- Economic and environmental friendly operation
- Self-diagnostic function identifying errors viz. Temp Probe / Compressor
- PU Wheels for High Capacity Models easy mobility
Parameter CHL175 CHL500 CHL010 CHL020
Tank capacity 5 L 7.5 L 10 L 20L
Tank size (L x B x H) mm (325x176x150) mm (325x265x150) mm (325x265x200) mm 375X300X250
Overall Dimensions (508 x 257 X 596) mm (594 x 327 x 596) mm (594 x 396 x 723) mm 700X550X700
Cooling capacity 175 W 500 W 1000 W 2000W

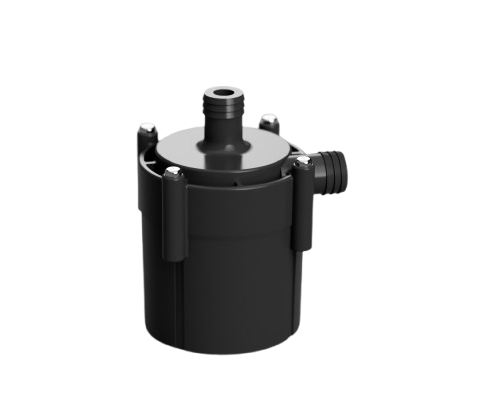

Pump flow rate 12.5 LPM 12.5 LPM 12.5 LPM 15LPM
Display LED 12.5 LPM 12.5 LPM 12.5 LPM
Temperature stability ± 1.0 °C ± 1.0 °C ± 1.0 °C ± 1.0 °C
Temperature range -10 °C to ambient -5 °C -10 °C to ambient -5 °C -10 °C to ambient -5 °C -10 °C to ambient -5 °C
Castor Wheels for Mobility NA Yes Yes Yes
Ordering Information BLFRCHL17500000000 BLFRCHL50000000000 BLFRCHL01000000000 BLFRCHL02000000000
Prices/ Piece On request On request On request -
