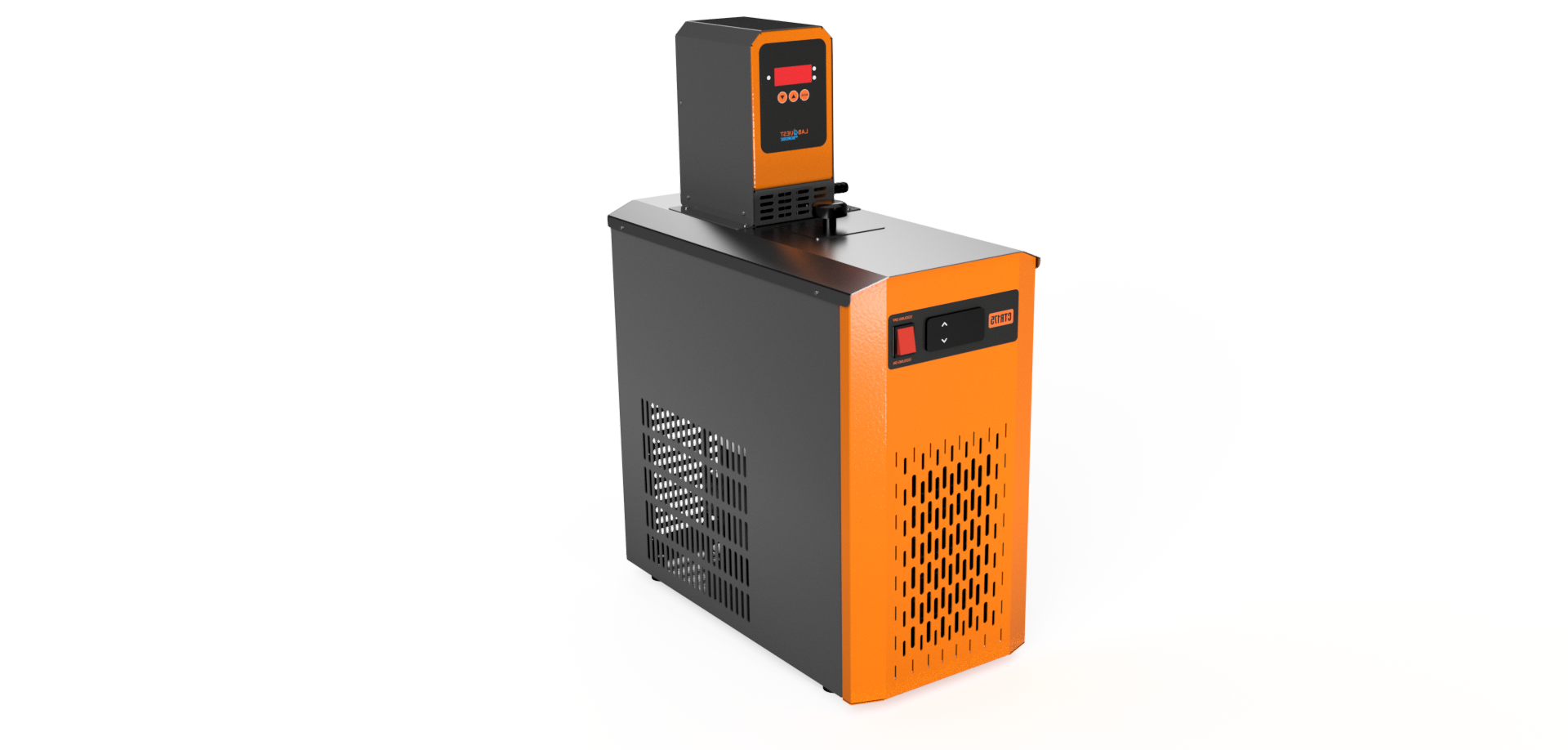

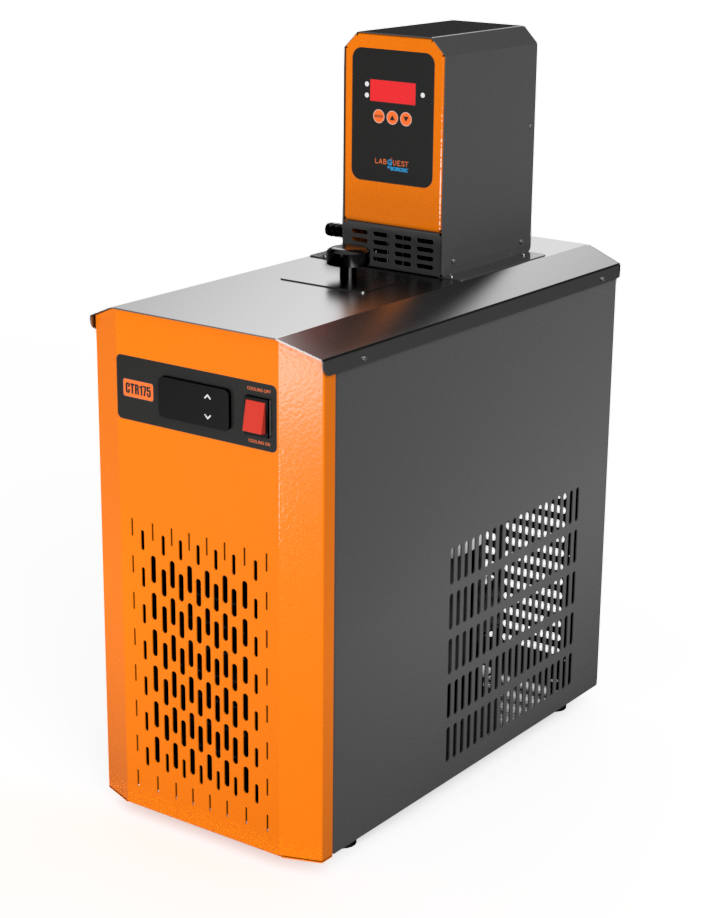

Recirculating Chiller and heater

Handles both cooling and heating requirements in laboratories and industrial environments. Provides accurate and consistent conditions for instruments, replacing the need for tap water with efficient, controlled cooling. Benefits include cost reduction, environmental protection, improved reaction reproducibility, and minimized flood risks.

Product Code : CTR
- Recirculating system is designed to reduce energy consumption and maximize refrigerating efficiency
- Temperature range from -10°C to ambient -5 °C
- Ergonomic and compact design allows the instruments to be on desk at eye-level
- High cooling capacity up to 1kW at 20℃
- Large, bright LED display with reliable microprocessor PID temperature control
- Economic and environmental friendly operation
- Self-diagnostic function identifying errors viz. Temp Probe / Compressor
- PU Wheels for High Capacity Models easy mobility
Parameter CTR 175 CTR 500 CTR010
Tank capacity 5 L 7.5 L 10 L
Tank size (L x B x H) mm (325x176x150) mm (325x265x150) mm (325x265x200) mm
Overall Dimensions (508 x 257 X 596) mm (594 x 327 x 596) mm (594 x 396 x 723) mm
Cooling capacity 175 W 500 W 1000 W
Pump flow rate 12.5 LPM 12.5 LPM 12.5 LPM
Heater capacity (Watt) 1200 W 1200 W 1800 W
Display LED LED LED
Temperature stability ± 1.0 °C ± 1.0 °C ± 1.0 °C
Temperature range -10°C to 100°C -10°C to 100°C -10°C to 100°C
Castor Wheels for Mobility NA Yes Yes
Ordering Information BLFRCTR17500000000 BLFRCTR50000000000 BLFRCTR01000000000
Prices/ Piece On request On request On request
Chiller-Brochure.pdf
Download
