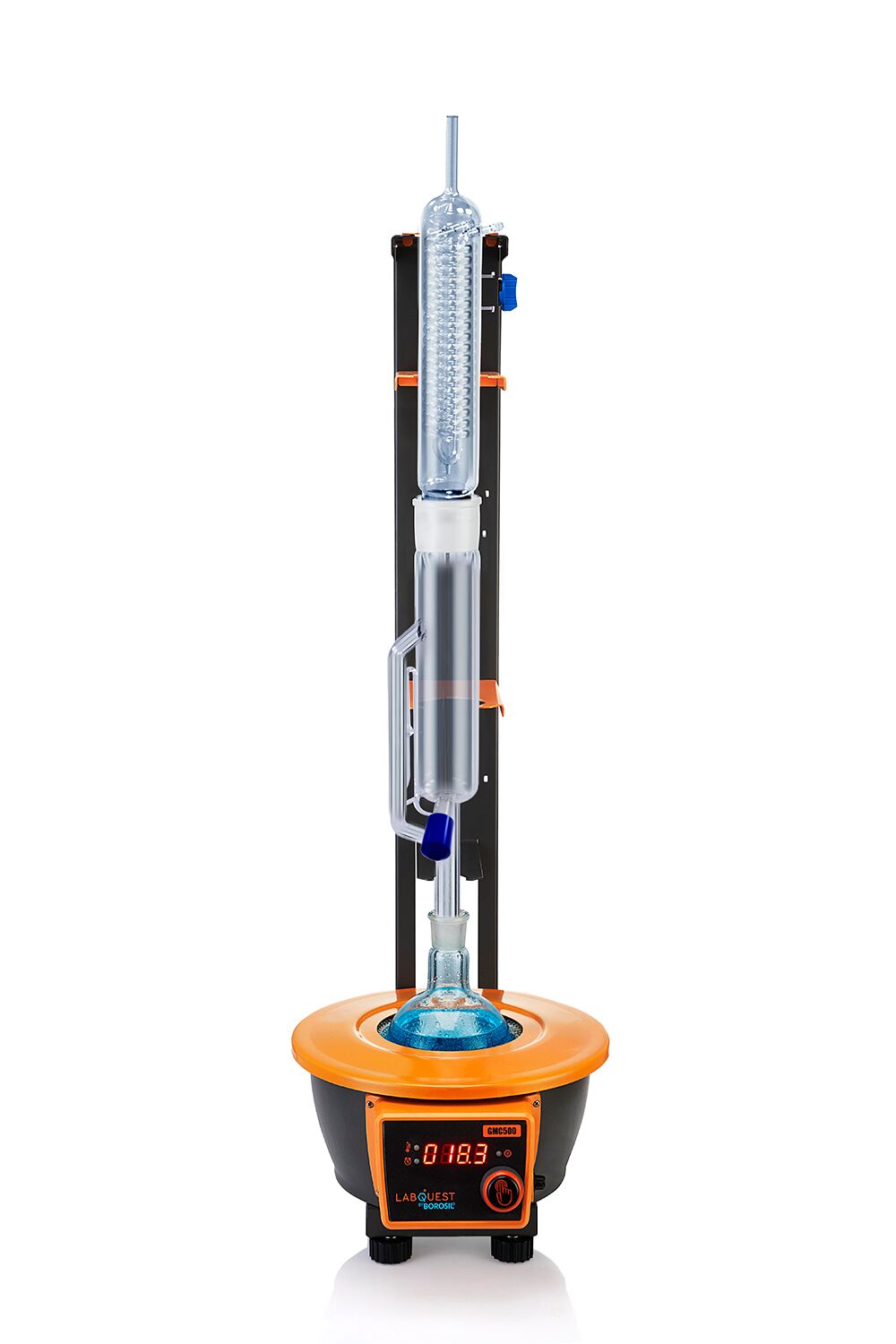

Soxhlet Apparatus

Soxhlet Apparatus for Fat Estimation.Delivering classical solutions with modernized approach for fat extraction

Product Code : BLFRSOX01200000000 / BLFRSOX01500000000 / BLFRSOX06200000000 / BLFRSOX06500000000

Intelligent Time and Safety Control

The only Soxhlet Apparatus with actual time setting and energy percentage display. Safe with Inbuilt safety control. Auto heater cut off with visual & audio error indicator to use. Intelligent with LED display of time, safe temperature and energy percentage.

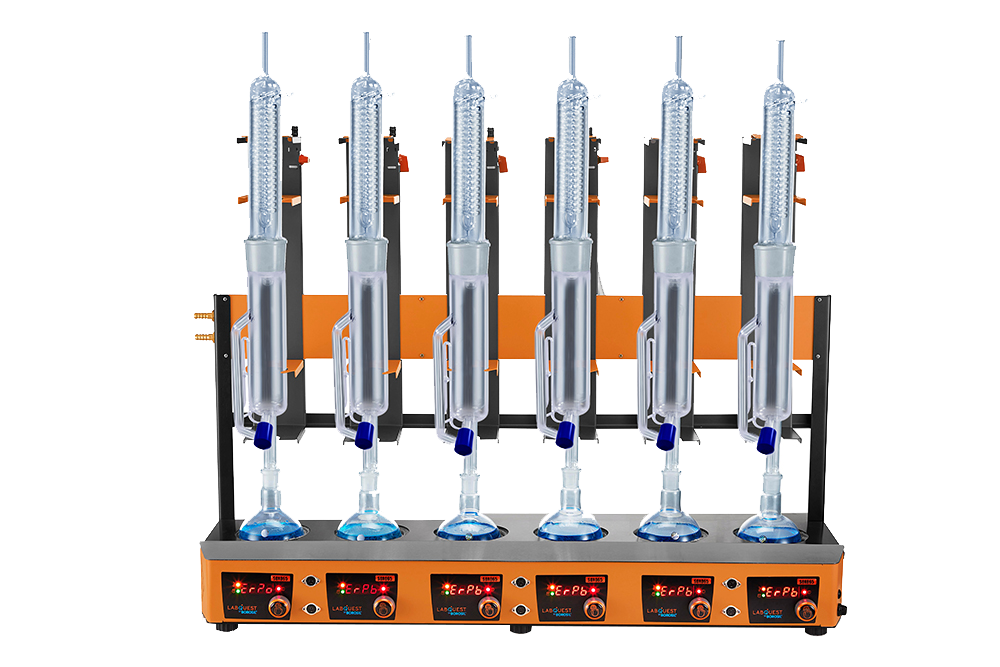

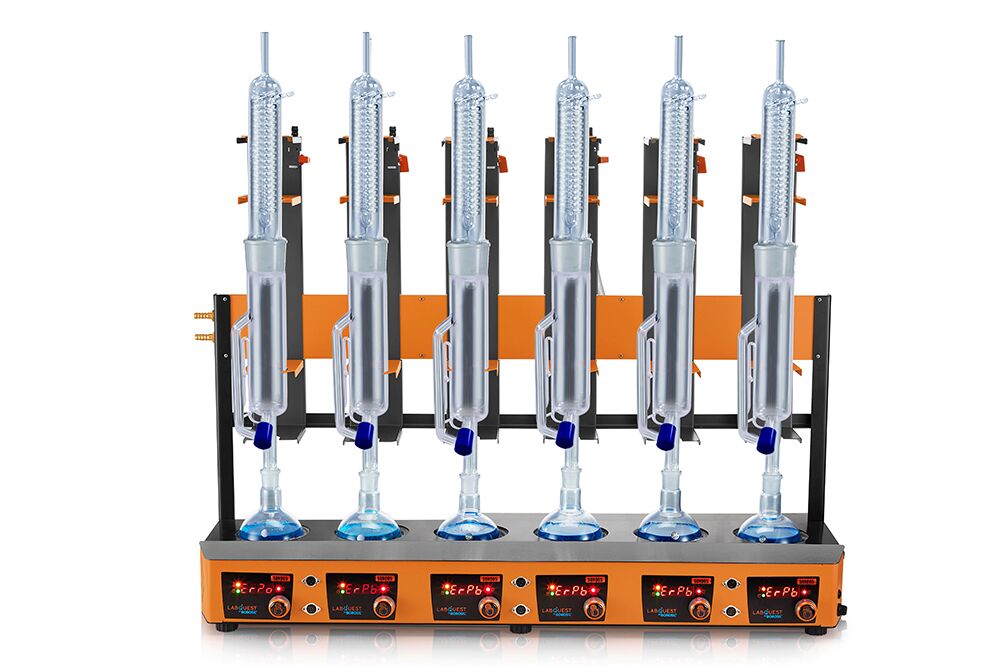

Advanced 6-Zone Heater with Digital Regulator

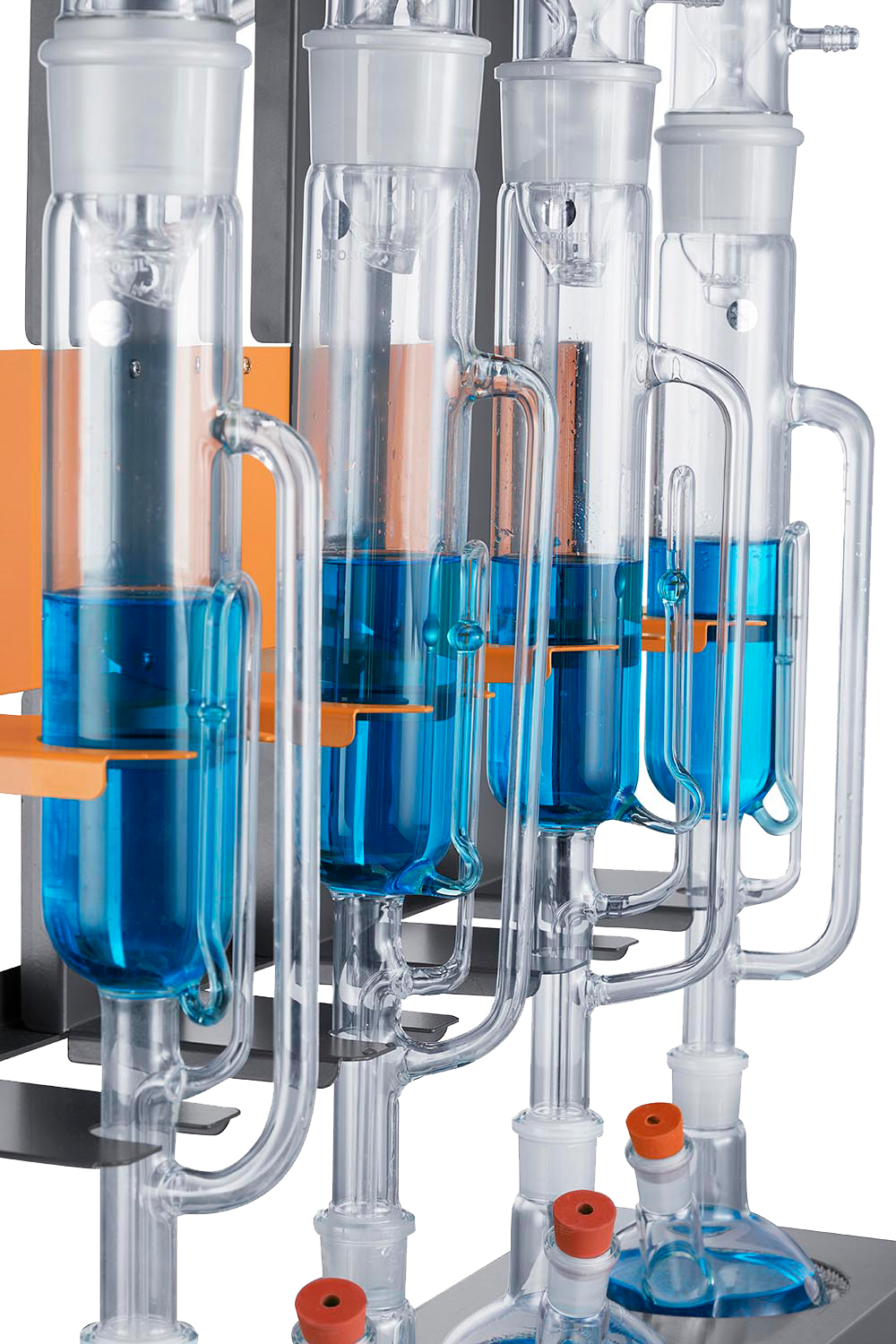

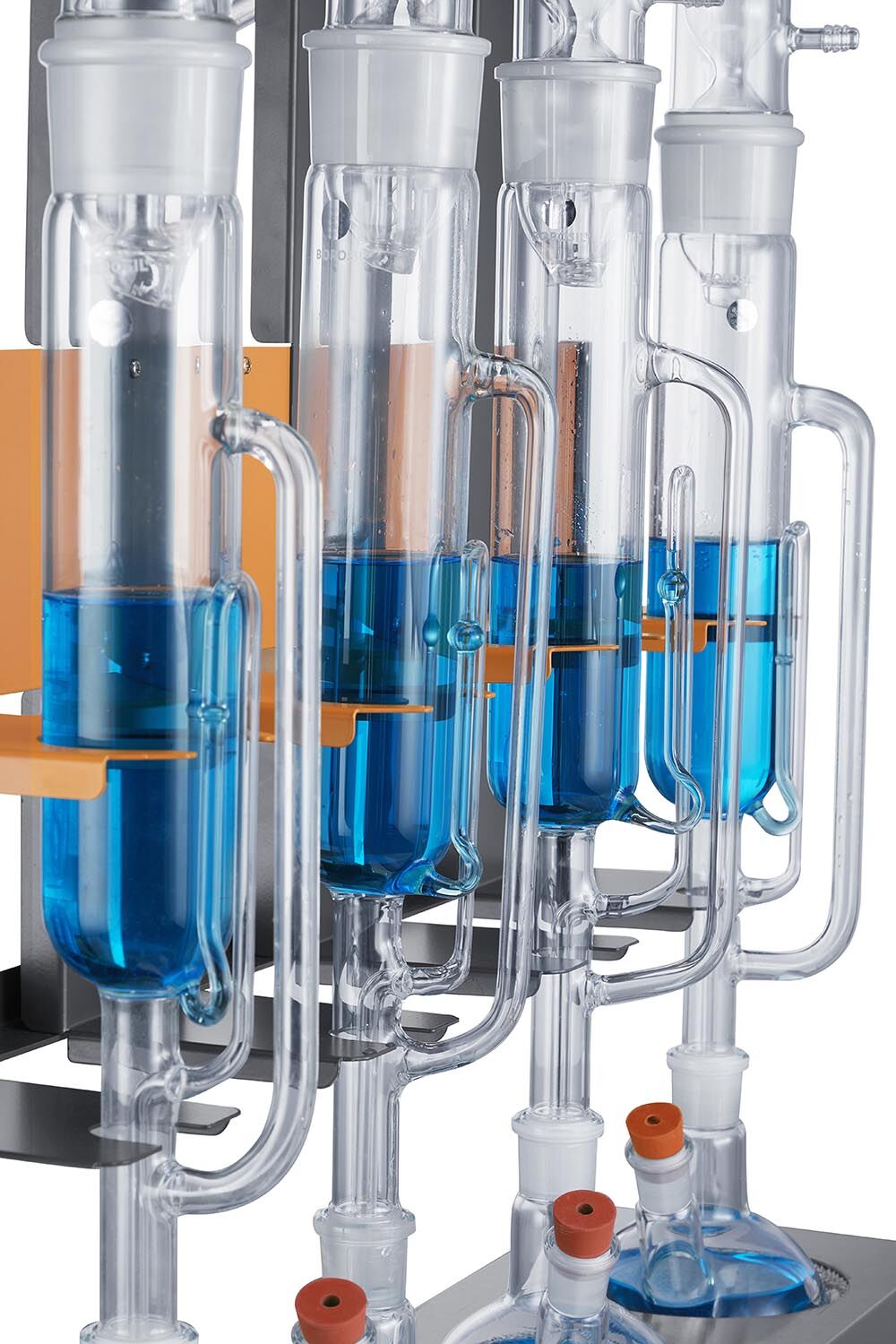

Available as a combined package of Soxhlet glass parts and holders, for fastening the glass parts to the support rod. Serial heating unit with 6 individually adjustable heaters. Digital energy regulator with 10 step power regulation. One knob control button for precise setting of time, energy regulation and safe temperature

Model Name	SOX012	SOX015	SOX062	SOX065
Position	1	1	6	6
Extractor capacity (ml)	100	200	100	200
Flask Capacity (ml)	250	500	250	500
Safe temperature setting	Yes	Yes	Yes	Yes
Knob for Extractor	Yes	Yes	Yes	Yes
Display Timer	1-999 min & Continuous	1-999 min & Continuous	1-999 min & Continuous	1-999 min & Continuous
Dimension (W x D x H)mm	200 x 300 x 800	201 x 300 x 800	1050 x 300 x 800	1051 x 300 x 800
Weight (Kgs)	7	7	15	15
Power (W)	400	400	2400	2400
HSN Code	84194090	84194090	84194090	84194090
Ordering code	BLFRSOX0120 0000000	BLFRSOX0150 0000000	BLFRSOX0620 0000000	BLFRSOX0650 0000000
