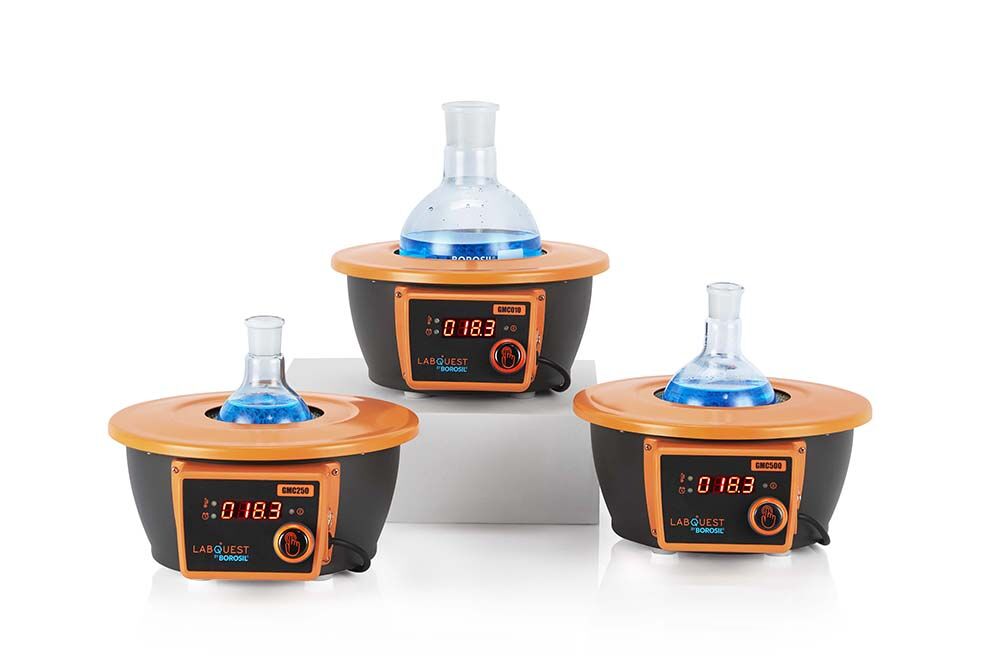

Temperature Controlled Heating Mantles

The intelligently designed safe heating mantles provide safety cutoff with precise heating along with features of time and temperature display like never before

Product Code : GMC

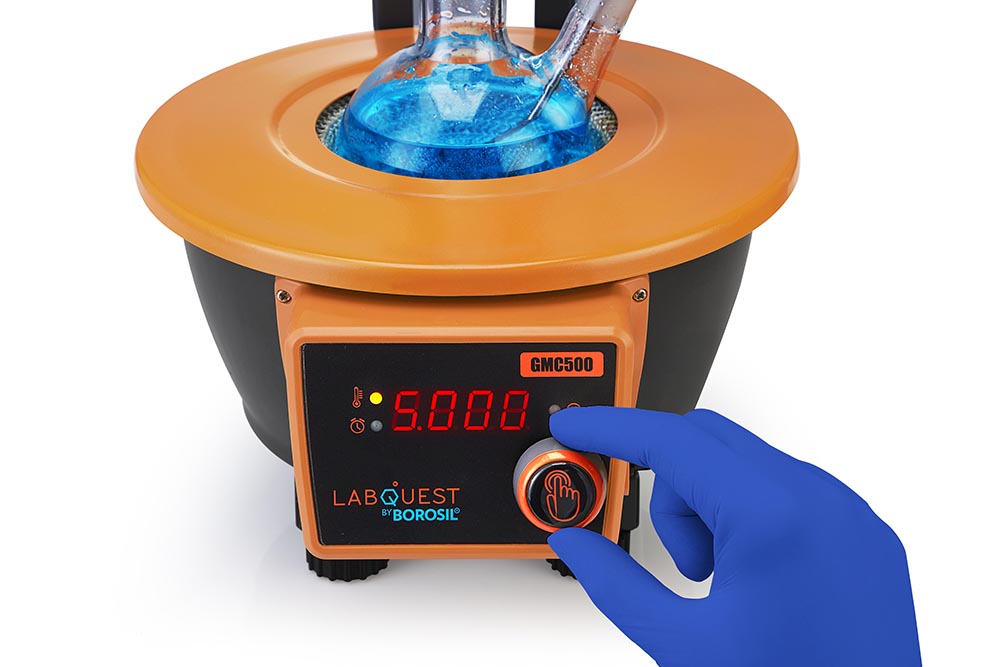

Advanced display

Large LED display for Enhanced User Experience, displaying time, temperature and process status

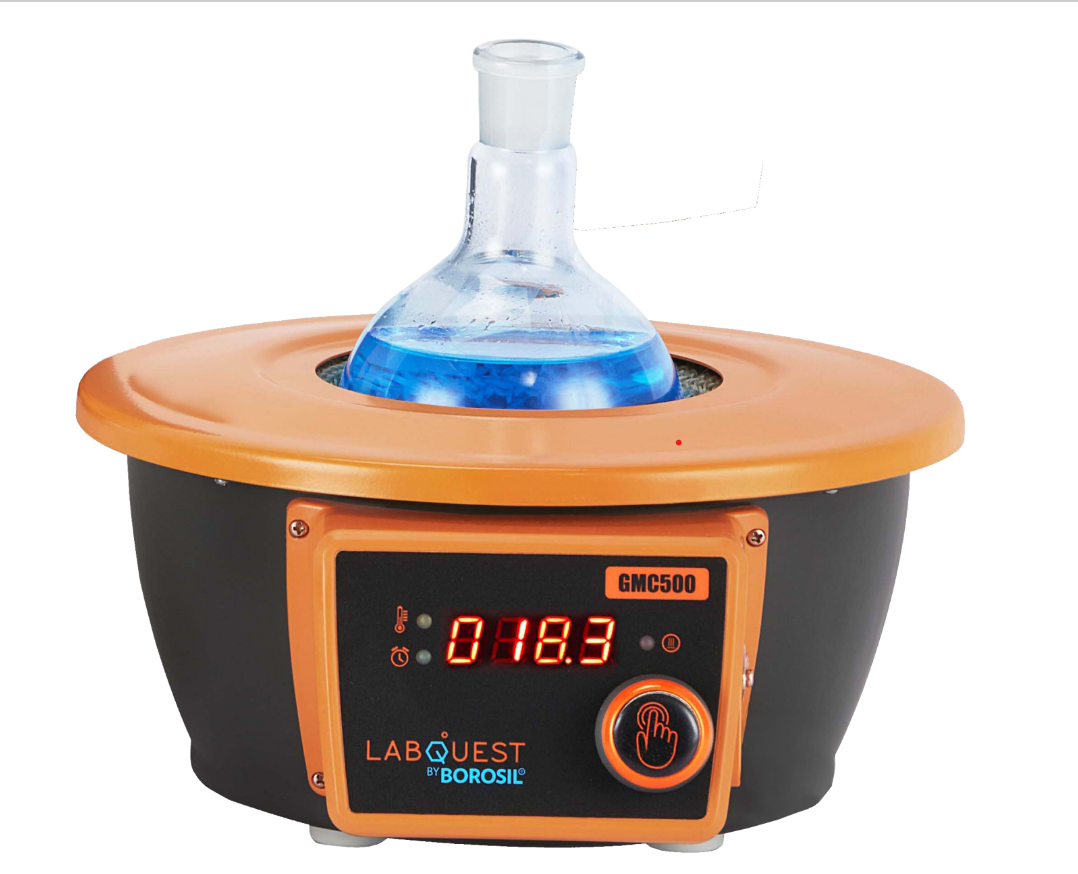

Enhanced Temperature Control and Accuracy

- Includes PT 100 external temperature probe with auto detection on plug in
- Integrated PID control for better temperature accuracy

Enhanced Safety and Convenience Features

- Safe Operations: Automatic spill detection and safety shutdown feature
- Safe temperature settings to prevent accidents
- Robust Control Panel that is both Chemical and heat resistant

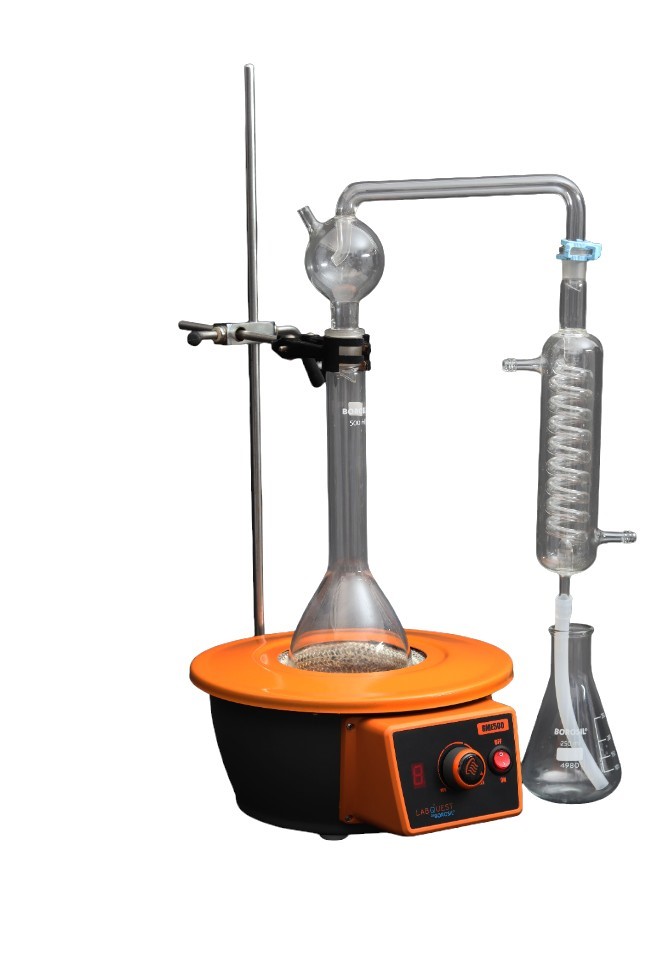

Efficient Assembly & Built in calibration

- Integrated retort rod holder for space saving apparatus assembly
- Built in calibration for error setting

Parameter	GMC250	GMC 500	GMC 010	HMC020	HMC050	HMC011
Flask Capacity	250 ml	500 ml	1000 ml	2 L	5 L	10 L
Working Temperature Range	Ambient +5 degC - 350 deg C	Ambient +5 degC - 350 deg C	Ambient +5 degC - 350 deg C	Ambient +5 degC - 350 deg C	Ambient +5 degC - 350 deg C	Ambient +5 degC - 350 deg C
Temperature Accuracy	1 deg C	1 deg C	1 deg C	1 deg C	1 deg C	1 deg C
Timer	upto 999 mins or continuous	upto 999 mins or continuous	upto 999 mins or continuous	upto 999 mins or continuous	upto 999 mins or continuous	upto 999 mins or continuous
Power Requirements	1A, 150 W	1A 200 W	1.5A 300 W	2.5A 450 W	3A 600W	6A 1200W
Display	LED Display with Temperature, Time and Process Status	LED Display with Temperature, Time and Process Status	LED Display with Temperature, Time and Process Status	LED Display with Temperature, Time and Process Status	LED Display with Temperature, Time and Process Status	LED Display with Temperature, Time and Process Status
Top Plate Material	MS	MS	MS	SS	SS	SS
Body Construction	MS	MS	MS	MS	MS	MS
Product Dimensions (L x B x H) in mm	310X330X160 mm	310X330X160 mm	310X330X160 mm	263 x 355 x 136 mm"	320 x 320 x 260 mm	450 x 603 x 215 mm
Stage wise Heating Modes	Yes	Yes	Yes	Yes	Yes	Yes
External Temperature Probe	PT 100	PT 100	PT 100	PT 100	PT 100	PT 100
Ordering Code	BLFHGMC25000000000	BLFHGMC50000000000	BLFHGMC01000000000	BLFHHMC02000000000	BLFHHMC05000000000	BLFHHMC01100000000
