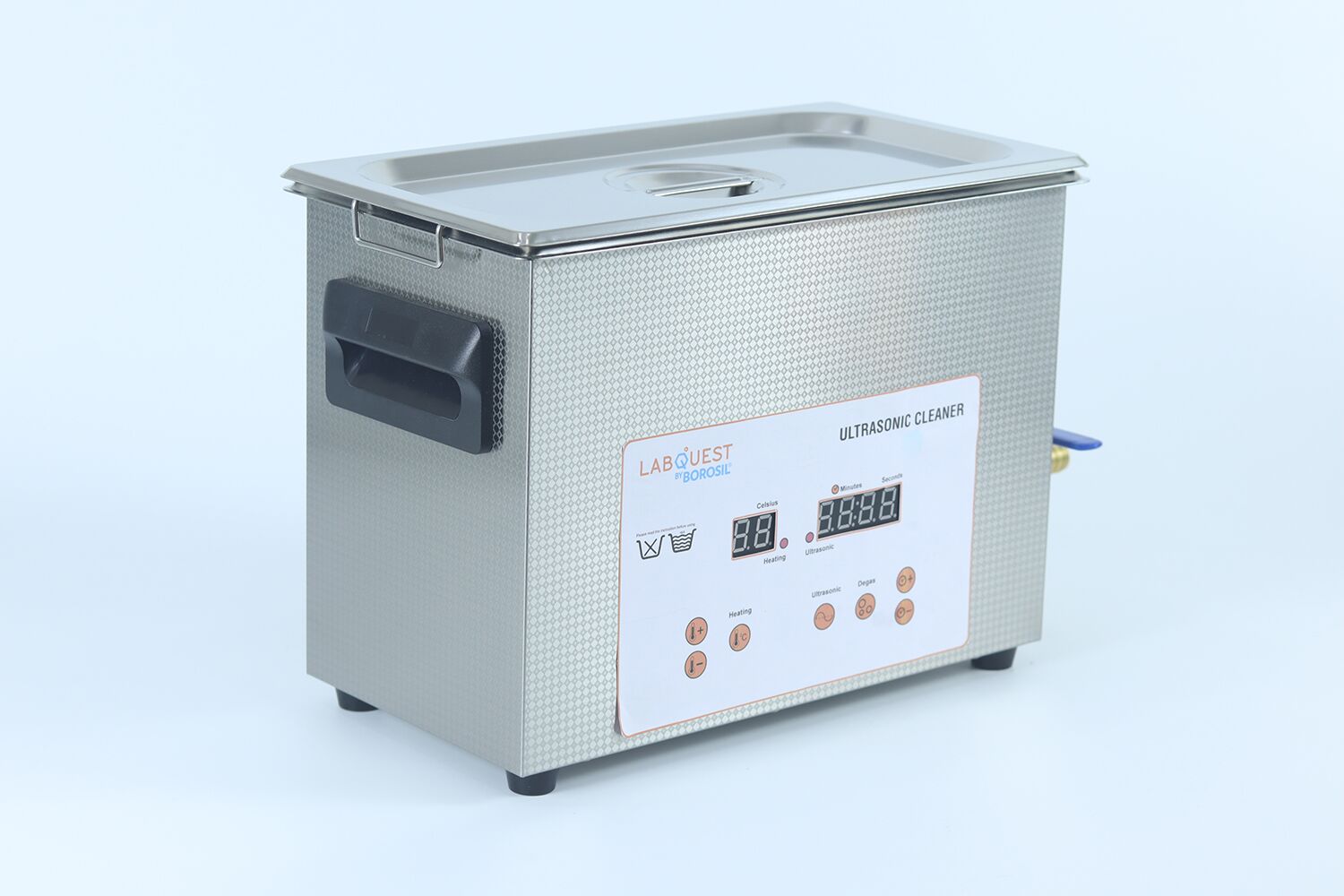

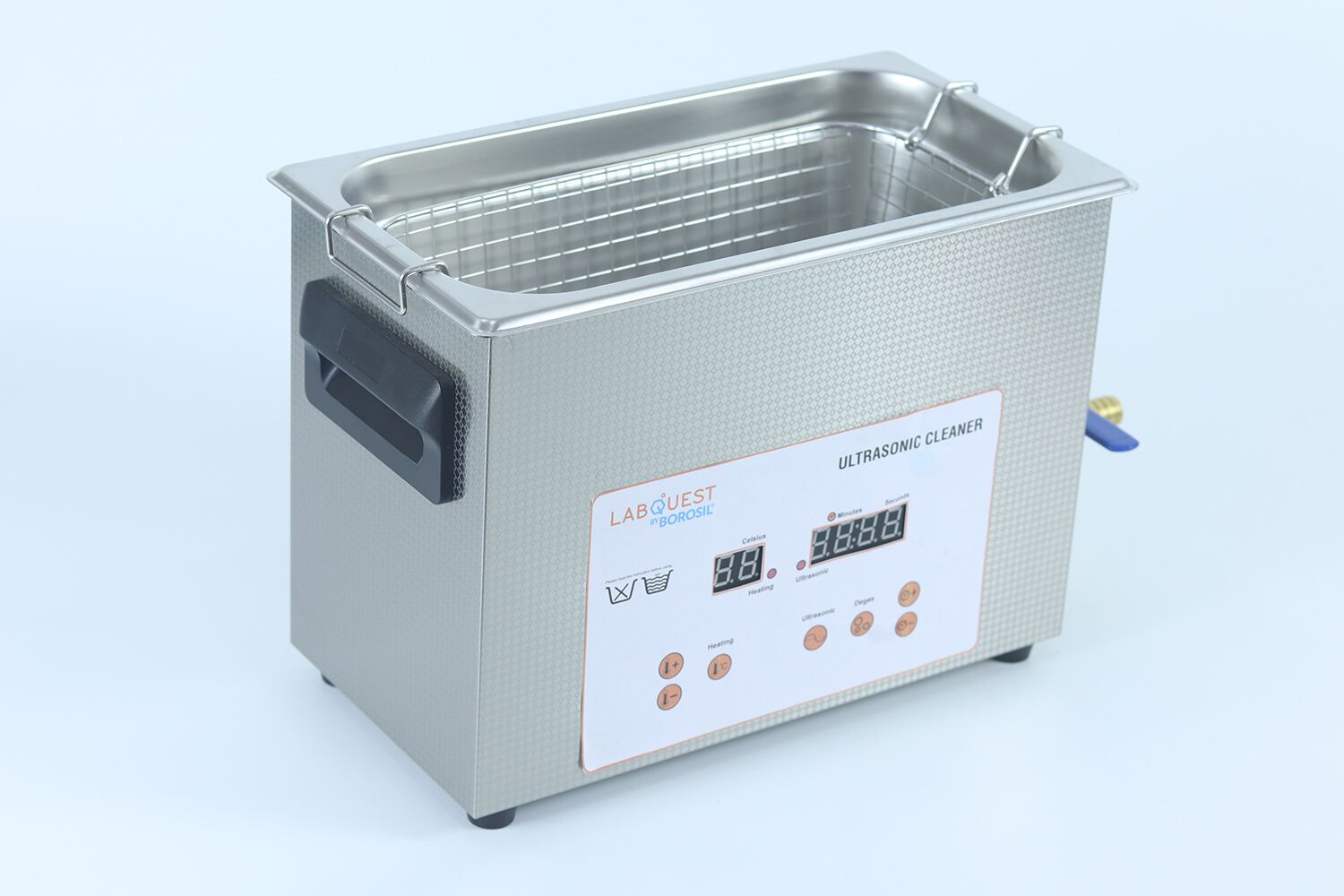

Ultrasonic Bath (Sonicator)

Ultrasonic bath (Sonicator)

Ultrasonic Baths use sound waves and liquid to clean small objects. Ultrasonic Bath offers gentle effective cleaning action ensuring that no contaminants get carried over from the previous process

Product Code : UCB
image not found Request a Quote
image not found Find a Dealer
Smart temp control with effective cleaning
Temperature control from Ambient +5 °C to 80°C Degas Mode - better Cleaning SS Mesh Basket included
Advanced display
Time setting upto 99 mins or in continuous mode Small Footprint, Supplied with Lid Drain Tap for 5L & above models
Rugged Built & Practical Construction
Seamless tanks ensuring better Cleaning Time setting upto 99 mins PID Control - Digital Display
Parameter UCB025 UCB050 UCB100 UCB200
Capacity 2.5L 5L 10L 20L
Working Temperature Range Ambient +5℃ to 80 ℃ Ambient +5℃ to 80 ℃ Ambient +5℃ to 80 ℃ Ambient +5℃ to 80 ℃
Frequesncy 40kHz 40kHz 40kHz 40kHz
Time Setting 1- 99 mins 1- 99 mins 1- 99 mins 1- 99 mins
Interior Dimension (L x B x H) in mm 150 x 140 x 100 mm 300 x 155 x 150 mm 300 x 240 x 150 mm 500 X 300 X 150 mm
Exterior Dimensions (L x B x H) in mm 190 X 170 X 220 mm 330 X 180 X 330 mm 330X 270X 330 mm 550 X 330 X 330 mm
Ultrasonic Power 50 W 150W 200W 400 W
Heater Power 100W 300W 500W 500 W
Ordering Code LQLEUCB025000000000 LQLEUCB050000000000 LQLEUCB100000000000 LQLEUCB200000000000
List Price 27500.00 42500.00 92500.00 172500.00
