Vacuum Pump (Oil Free)

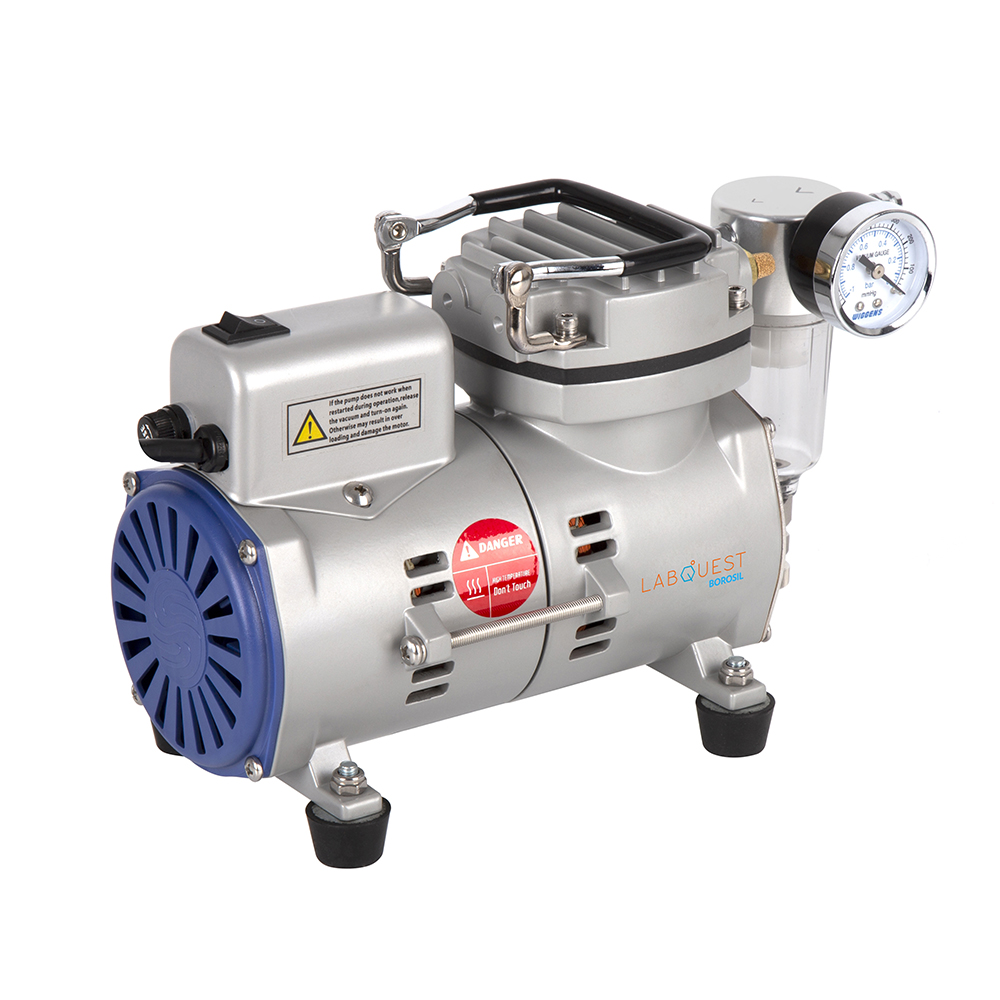

Boro-017 Vacuum pump is a piston-powered, oil-free pump. With innovative electronic, mechanical technology and human design concept make, compact and light weight, clean and maintenance free, safe and comfortable.

Product Code : BORO

Easy Maintiance

Driven by Piston, without the need of lubricant, regular oil changes and maintenance; with no oil pollution.

Instrument Longetivity

Equipped with filter cartridge in air inlet to filter particle and moisture to prolong the life of pump.

Efficent & Consistence

The oil-free piston vacuum pump provides continuous, reliable, high flow vacuum for your container.

Adjustable vacuum

Equipped with vacuum regulator to adjust vacuum

Enhanced Safety and Convenience Features

Motor has a built-in thermal protection device to shut off the pump automatically when overheated and then resume working when the temperature cools down.

User Friendly

It uses piston motion for vacuum creation and therefore creates only minimal noise in operation mode.

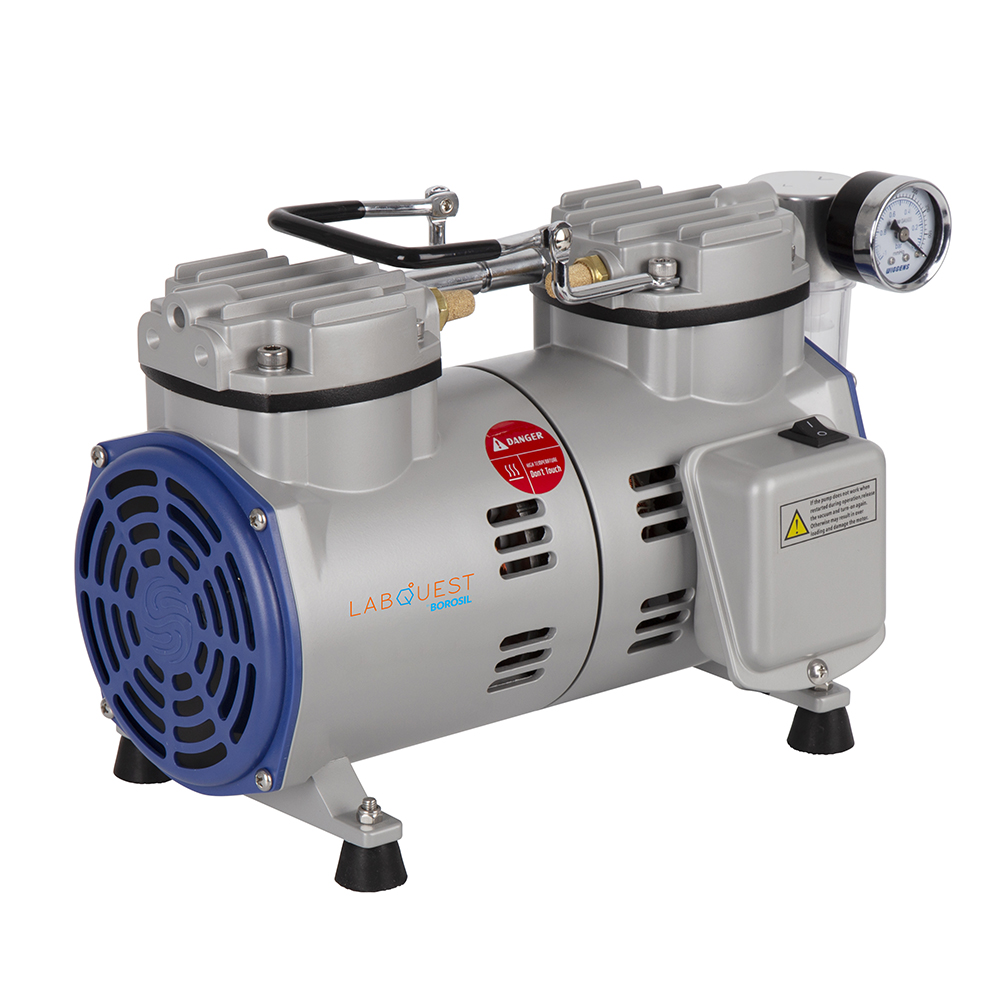

Model Name	BORO - 017	BORO034	BORO060
Power（V / Hz）	220 / 50	220 / 50	220 / 50
Max. Vacuum	100 mbar	100 mbar	100 mbar
Max. flow rate	17 L / min	34 L / min	60 L / min
Motor rotation	1450 rpm	1450 rpm	1450 rpm
Outlet Port thread	9 mm	9 mm	9 mm
Vacuum Stage	Single	Double	Double
Noise level	50 dB	60 dB	52 dB
Weight	4.4 kg	5.4 kg	8.6 kg
Dimension (W x D X H) mm	(272 x 142 x 165)	310x152x165	340x155x195
Electrical Requirement	0.3 A	0.4	1
Power Consumption	65 W	80	190
Ordering Information	100VP300017	100VP400034	100VP600060
HSN Code	84798200	84798200	84798200
Price/ Piece	32 600	52 500	65000
