The Function of Baffles in Industrial Reactors and Their Impact on Product Quality

Baffles are more than just a component of an industrial reactor; they play a crucial role in enhancing the efficiency and reliability of chemical reactions. Internal structures are integral to managing fluid dynamics, impacting mixing effectiveness, heat distribution transfer, and overall reaction efficiency. This detailed article delves into the function of baffles in industrial reactors and their significant impact on product quality.

Introduction to Baffles in Industrial Reactors

Baffles are the flow-directing or obstructing vanes or panels used to direct a flow of liquid or gas Baffles are long, flat plates attached to the side of the tank.Baffles are vertical blades or panels fixed inside reactor vessels.Baffles are incorporated into a reactor to create eddies when liquid is pushed into the reactor. Eddy generation on both sides of the baffles creates effective mixing while still maintaining plug flow. The main purpose of installing baffles is to disturb the flow pattern of reacting substances, which tends to increase the mixing and heat transfer in the reactor. They prevent a vortex from being formed and ensure that there will be turbulent flow inside the reactor so that the contents can be homogeneously mixed, making chemical reactions consistent.

Wall-mounted baffles are attached directly to the interior walls of the reactor vessel. Wall-mounted baffles are preferred for their simplicity and effectiveness in enhancing fluid dynamics compared to other baffle types that might require more complex installations.These are commonly used in various reactor configurations, including:

Stirred Tank Reactors (Batch Reactor): These help distribute energy from the stirrer more evenly.
Continuous Stirred Tank Reactors (CSTR): They optimise the contact time between reactants, improving reaction rates and yield.

How Baffles Enhance Mixing and Flow Dynamics in Reactors?

The strategic placement of baffles within a reactor can influence the efficiency of mixing and flow dynamics, improving the overall reaction process through several mechanisms:

Reduced Vortex Formation: Baffles break the symmetry of the fluid’s circular motion, which is prone to creating a central vortex. By disrupting this flow pattern, baffles help distribute the fluid more evenly throughout the reactor, promoting uniform mixing.
Enhanced Turbulence: Baffles act as obstacles in the path of the fluid, disrupting the streamlined flow. The increased turbulence ensures that reactants are thoroughly mixed, which is crucial for the homogeneity of the reaction mixture. The enhanced contact between reactant molecules due to increased turbulence can lead to faster reaction rates and higher yields.

The Role of Baffles in Reactor Vessels

Baffles are essential components in small-scale laboratory reactors and large-scale industrial applications. They serve multiple functions to optimise the reaction environment.

Stabilise Fluid Motion: Baffles in reactors stabilise fluid motion as they change the fluid flow pattern inside the reactor, forming large eddies or swirls unlikely and preventing irregular mixing. This will lead to more uniform fluid movement and, consequently, a uniform temperature and concentration profile throughout the reactor.

Improve Heat Transfer: Good mixing is crucial for effective heat transfer, especially in reactions where temperature control is critical to the reaction kinetics. Baffles facilitate better heat distribution by ensuring that the heat generated or absorbed during the reaction is quickly and evenly dispersed throughout the reactor. This makes for a considerable difference between exothermic and endothermic reactions since it is affected by the temperature gradients imposed on the reaction products by the end of the reaction. Baffles are important to avoid stratification in which layers within the reactor exist at various temperatures, which can negatively affect the efficiency of the reaction.

Using Wall-Mounted Baffles in Glass-Lined Reactors

Glass-lined reactors benefit significantly from the use of wall-mounted baffles.

Prevent Contamination: Baffles in glass-lined reactors help minimise mechanical wear on the reactor walls, thereby preventing contamination of the reactant substances.
Product Purity: Baffles help maintain the purity and quality of the final product by offering uniform mixing and preventing sediment formation.

The Role of Baffles in Heat Transfer, Mass Transfer and Reaction Efficiency

Baffles in reactors are key to optimising heat transfer within industrial reactors, a critical factor in maintaining the desired reaction conditions and efficiencies. By improving the mixing process, baffles facilitate a uniform distribution of heat throughout the reactor. This uniformity is crucial for controlling reaction temperatures and maintaining consistent reaction kinetics. Especially in exothermic and endothermic reactions, where heat generation or absorption is significant, the presence of baffles helps to avoid hotspots or cold zones within the reactor, thereby making sure that the chemical processes are ongoing at optimal rates and efficiencies.

Baffles increase mass transfer between different phases in multiphase systems, such as gas-liquid or liquid-solid reactions. By improving the mixing of phases, baffles help to maximize contact between reactants, which can lead to higher reaction efficiency and more consistent product quality.

Moreover, baffles enhance reaction efficiency by minimising temperature gradients that can lead to incomplete reactions or unwanted byproducts. The effective stirring action provided by baffles makes sure that all reactants receive fair access to the heat source and sink. This improves both the efficiency of the yield and the energy of the system, thereby increasing the sustainability and reducing the cost of the process.

Impact of Baffle Design on Product Quality and Consistency

Product Quality:

The quality and uniformity of the product are basically dependent on the proper design and strategic placement of baffles in the reactor. Baffles optimise flow and mixing in the reactor such that each part of the system contributes uniformly to the reaction. This uniformity is crucial for the homogeneity of the reaction mixture itself and has a direct influence on the quality and consistency of the final product. The correct design of the baffle ensures no stagnation areas, and nothing remains unstirred or unreacted, which is very important for highly pure processes with strict quality control.

Additionally, baffles can significantly reduce shear stress and mechanical degradation of sensitive molecules, especially in pharmaceutical and biochemical reactions. By designing baffles that minimise these stresses while maximising mixing efficiency, manufacturers can achieve a higher-quality product with fewer impurities and better reproducibility. This attention to baffle configuration is critical in industries where even minor inconsistencies can lead to significant differences in product efficacy and safety.

Product Consistency

Uniform Reaction Environment: Baffles reduce inhomogeneities in the reactor, providing a consistent environment for the reaction. This is crucial in lab and pilot reactors, where controlling the reaction conditions can directly influence the scale-up process. Uniform reaction conditions often lead to more predictable, higher-quality products.
Reduction of Side Reactions: Inhomogeneous mixing can result in regions with different concentrations of reactants or temperature variations, potentially causing unwanted side reactions. By improving mixing and heat transfer, baffles help reduce the formation of by-products or impurities.
Enhanced Yield: Baffles improve mass transfer and prevent dead zones (areas of stagnant liquid) where the reaction may be incomplete or slow. By enhancing reactant interaction and reaction efficiency, baffles can contribute to higher overall yields.
Scale-up Consistency: In pilot reactors, baffles help mimic the conditions of larger-scale operations. The improved mixing and heat transfer they provide can ensure that the results obtained at the lab or pilot scale are more representative of full-scale production, improving the chances of a successful scale-up without compromising product quality.

Best Practices for Baffle Installation and Maintenance in Industrial Reactors

Proper installation and diligent maintenance of baffles are key to harnessing their full potential in industrial reactors. Here are key practices to provide the best performance:

Correct Installation: It is crucial that baffles are installed at the precise angles and intervals specified for the particular reactor design. This assures that fluid dynamics are controlled as intended, maximising the efficiency of mixing and heat transfer. Incorrect installation can lead to suboptimal mixing, creating zones of poor reaction kinetics and affecting the overall process efficiency.

Regular Maintenance: Baffles should periodically be inspected for wear or corrosion damage, as these can affect reactor performance. This would include corrosion, physical deformation, or accumulation of material that alters the flow pattern and mixing efficiency when they have occurred on baffles. Routine maintenance helps to identify and rectify such issues promptly, ensuring the reactor operates at peak efficiency.

Alignment Checks: Regular checks are essential to ensure that baffles remain properly aligned within the reactor. Misalignment can disrupt the flow patterns and reduce the effectiveness of mixing and heat transfer, leading to inconsistent product quality.

Cleaning Protocols: Establishing and maintaining thorough cleaning protocols for baffles is important, especially in reactors processing particulate-laden or slurry-based feeds. Accumulation on baffles can significantly impact their functionality by altering flow dynamics and reducing heat transfer efficiency.

Best Possible solutions for Baffles in Lab Reactors

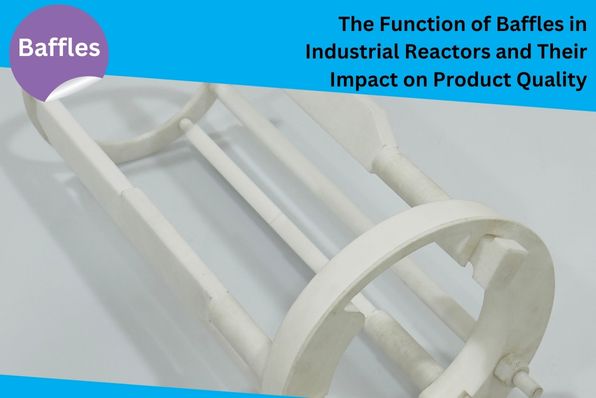

PTFE Baffles: Use of PTFE baffles for highly corrosive environments, sensitive reactions, or where minimizing material adhesion is critical.
Glass Baffles: Use of glass baffles for reactions requiring precise thermal management, visual monitoring, or those with non-corrosive reactants.

Conclusion

Baffles are critical in improving the performance of industrial and lab reactors. Such simple yet powerful tools make all the difference in terms of the quality and consistency of the products through better mixing and heat transfer. Look into our reactor systems at Borosil Scientific and enhance your research and industrial applications with our top-tier solutions, designed to deliver superior performance every time.
